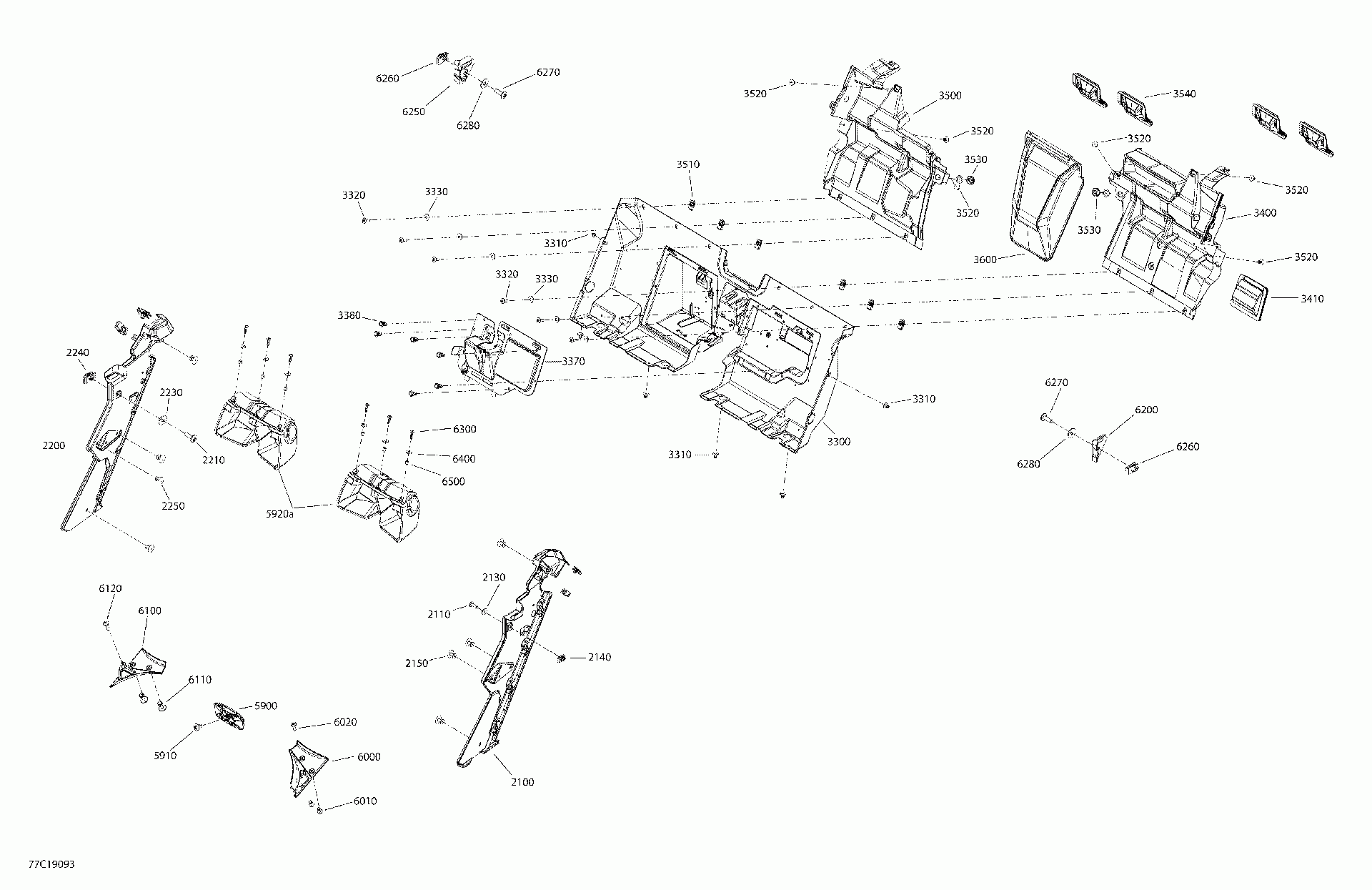

09- cab interior maverick max - north america - rear upper section

Cam-am 007 - Maverick MAX Turbo R - North America
Cam-am
#oem кодцена
2100
715005784
LH, Side Panel Cover
2110
250000722
Torx Screw M6 X 20
2130
234062670
Flat Washer, Stainless
2140
250000957
Extruded Panel Nut M6
2150
293150103
Pop Rivet 3/16
2200
715005785
RH, Lateral Panel Cover
2210
250000722
Torx Screw M6 X 20
2230
234062670
Flat Washer, Stainless
2240
250000957
Extruded Panel Nut M6
2250
293150103
Pop Rivet 3/16
3300
707900697
Baffle Lower R
3310
293150104
Pop Rivet 3/16
3320
250000722
Torx Screw M6 X 20
3330
234062670
Flat Washer, Stainless
3370
707900703
Cover Fuse Box
3380
293150230
Tuflok Plastic Rivet
3410
707900652
Bulkhead Cover
3500
707900441
RH Upper Rear Bulkhead
3510
250000957
Extruded Panel Nut M6
3520
293150104
Pop Rivet 3/16
3530
705010718
Уплотнитель резиновый
3540
707900486
Bulkhead Cover
3600
707900442
Central Upper Rear Bulkhead
5900
707900502
Central Mirror
5910
250000767
Torx Truss Screw M6 X 12
5920a
707900653
Foam
6000
707900507
Warning Label Plate
6010
293150103
Pop Rivet 3/16
6020
250000720
Torx Screw K50 X 16
6100
707900574
Warning Label Plate
6110
293150103
Pop Rivet 3/16
6120
250000720
Torx Screw K50 X 16
6200
707900615
LH Shoulder Pad
6250
707900616
RH Shoulder Pad
6260
250000957
Extruded Panel Nut M6
6270
250000722
Torx Screw M6 X 20
6280
234062670
Flat Washer, Stainless
6300
293900112
Втулка
6400
250200025
Washer M5
6500
250000760
Torx Screw Truss Head K50X20 T20
