Cam-am 1- Maverick

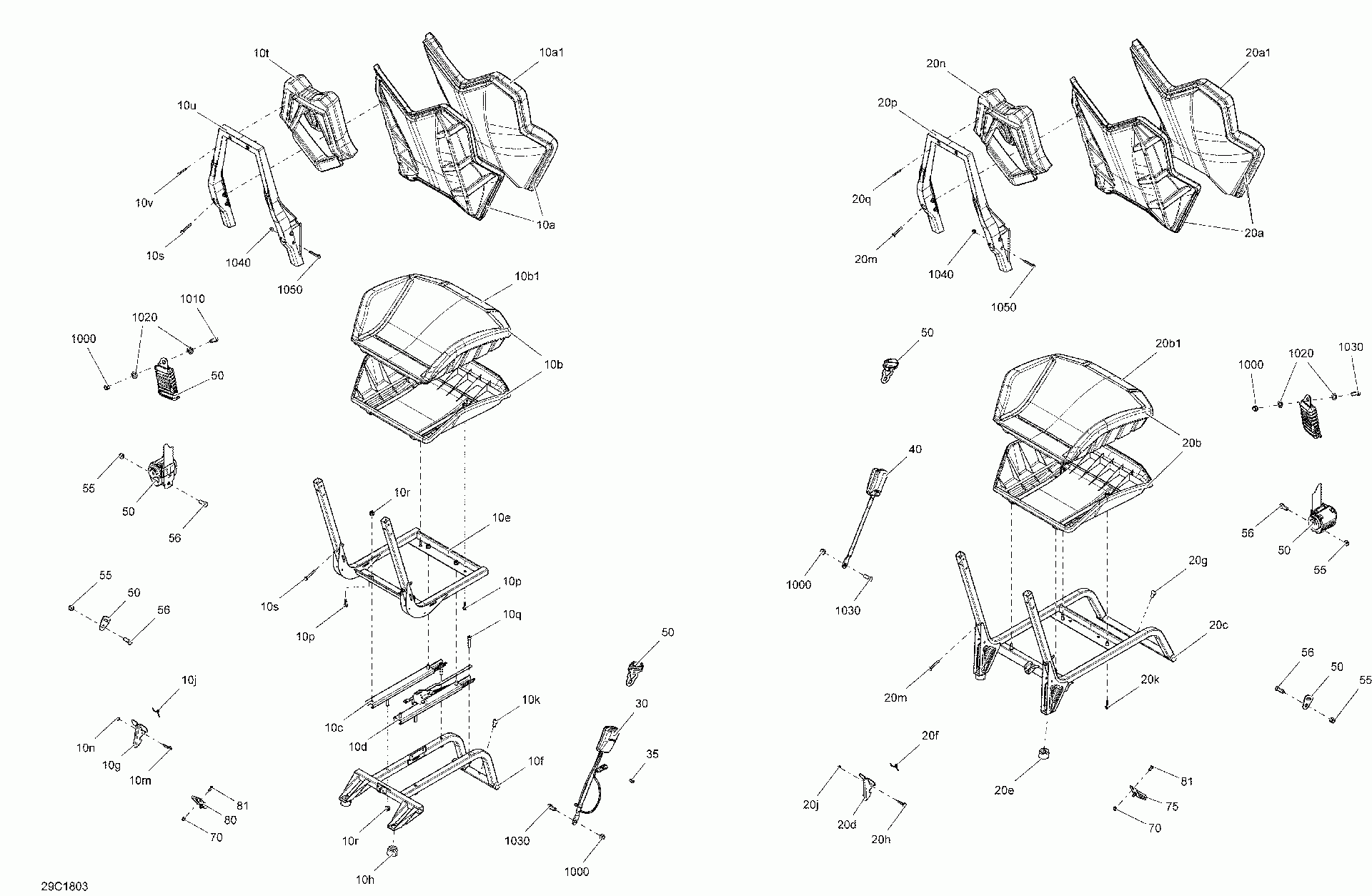

09- seat maverick non max

#

oem код

название

цена

10a

Backrest Assembly

Backrest Assembly

10a

Backrest

Backrest

10a

Backrest

Backrest

10a

Backrest

Backrest

10a1

Backrest Cover

Backrest Cover

10a1

Backrest Cover Black

Backrest Cover Black

10a1

Крышка

Крышка

10a1

Крышка

Крышка

10a1

Крышка

Крышка

10b

Cushion Assembly Can-Am Red

Cushion Assembly Can-Am Red

10b

Подушка

Подушка

10b1

Seat Cover

Seat Cover

10b1

Cushion Cover Black

Cushion Cover Black

10b1

Seat Cover Can-Am Red

Seat Cover Can-Am Red

10b1

Seat Cover Gulfstream Blue

Seat Cover Gulfstream Blue

10b1

Крышка

Крышка

10c

LH Rail

LH Rail

10d

RH Rail

RH Rail

10e

Operator Seat Frame

Operator Seat Frame

10f

Seat Member

Seat Member

10g

Seat Latch

Seat Latch

10h

Rubber Bumper

Rubber Bumper

10j

Пружина

Пружина

10k

Socket Screw M10 X 16

Socket Screw M10 X 16

10m

Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

10n

Hex. Elastic Stop Nut M6

Hex. Elastic Stop Nut M6

10p

Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip

10q

Socket Head Screw M8 X 40

Socket Head Screw M8 X 40

10r

Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

10s

Hex. Flange Screw M6

Hex. Flange Screw M6

10t

Head Rest

Head Rest

10u

Seat Support

Seat Support

10v

Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40

20a

Backrest Assembly

Backrest Assembly

20a

Backrest

Backrest

20a

Backrest

Backrest

20a

Backrest

Backrest

20a1

Backrest Cover

Backrest Cover

20a1

Backrest Cover Black

Backrest Cover Black

20a1

Крышка

Крышка

20a1

Крышка

Крышка

20a1

Крышка

Крышка

20b

Cushion Assembly Can-Am Red

Cushion Assembly Can-Am Red

20b

Подушка

Подушка

20b1

Seat Cover

Seat Cover

20b1

Cushion Cover Black

Cushion Cover Black

20b1

Seat Cover Can-Am Red

Seat Cover Can-Am Red

20b1

Seat Cover Gulfstream Blue

Seat Cover Gulfstream Blue

20b1

Крышка

Крышка

20c

Passenger Seat Frame

Passenger Seat Frame

20d

Seat Latch

Seat Latch

20e

Rubber Bumper

Rubber Bumper

20f

Пружина

Пружина

20g

Socket Screw M10 X 16

Socket Screw M10 X 16

20h

Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

20j

Hex. Elastic Stop Nut M6

Hex. Elastic Stop Nut M6

20k

Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip

20m

Hex. Flange Screw M6

Hex. Flange Screw M6

20n

Head Rest

Head Rest

20p

Seat Support

Seat Support

20q

Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40

30

Driver Buckle Side

Driver Buckle Side

35

Tie-Rap 350 mm

Tie-Rap 350 mm

40

Passenger Buckle Side

Passenger Buckle Side

50

Safety Belt

Safety Belt

55

Nylon Insert Hex. Lock Nut 7/16-20

Nylon Insert Hex. Lock Nut 7/16-20

70

Вставка

Вставка

75

Retaining Rod RH

Retaining Rod RH

80

Retaining Rod LH

Retaining Rod LH

81

Torx Head Screw M6 X 16

Torx Head Screw M6 X 16

1000

Nylon Insert Hex. Lock Nut 7/16-20

Nylon Insert Hex. Lock Nut 7/16-20

1010

Safety Belt Screw

Safety Belt Screw

1020

Position Washer

Position Washer

1040

Hex. Elastic Flange Nut M6

Hex. Elastic Flange Nut M6

1050

Hex. Flange Screw M6

Hex. Flange Screw M6
