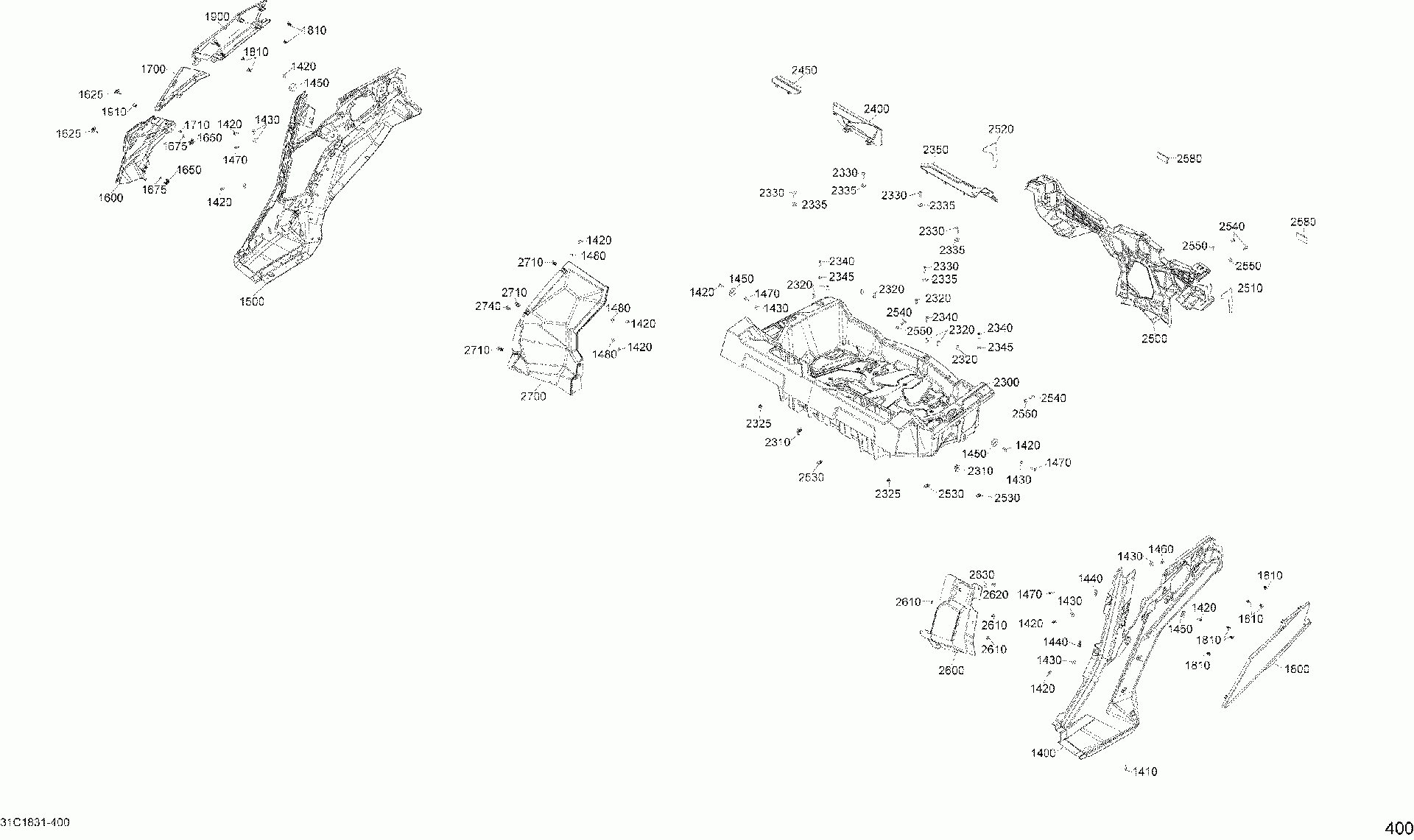

09 - body, rear maverick trail - 800r efi

Cam-am 1- Maverick Trail 800R EFI
Cam-am
#oem кодцена
1400
705011335
LH Rear Pannel
1410
207662054
Hex. Flanged Screw M6 X 20
1420
250000722
Torx Screw M6 X 20
1430
250200162
Flat Washer M6.6 X 22
1440
250000957
Гайкапружинная M6x1.0
1450
705003841
Support Plate
1460
233161464
Hex. Elastic Flange Nut M6
1470
250000807
Torx Screw M6 X 25
1480
234062670
Flat Washer, Stainless
1500
705011336
RH Right Pannel
1600
705011338
Air Filter Acces Door
1625
708400278
Quater Turn
1650
708400285
Зажим
1675
708400286
Шайба
1700
705012621
White, Acces Panel Trim
1700
705012624
Yellow, Acces Panel Trim
1710
250000720
Torx Screw K50 X 16
1800
705011424
White, LH Rear Cargo Trim
1800
705012429
Yellow, LH Rear Cargo Trim
1810
517306478
Зажим
1900
705011425
White, RH Rear Cargo Trim
1900
705012430
Yellow, RH Rear Cargo Trim
1910
293150230
Tuflok Plastic Rivet
2300
705011337
Rear Box
2310
250100177
Panel nut M6
2320
250100207
Hex. Coupling Nut M6
2325
233261466
Hex. Flanged Elastic Nut M6
2330
250000745
Torx Truss M/S M8 X30
2335
234082600
Flat Washer 8 mm, Stainless
2340
250000807
Torx Screw M6 X 25
2345
234062670
Flat Washer, Stainless
2350
705011339
Cvt Air Inlet Cover
2400
705011341
Liquid Acces Cover
2450
705011340
Air Intake Cover
2500
705011426
Rear Fascia
2510
704906815
LH Rear Reflector
2520
704906816
RH Rear Reflector
2530
250000957
Гайкапружинная M6x1.0
2540
250000807
Torx Screw M6 X 25
2550
234062670
Flat Washer, Stainless
2580
520001820
Red Reflector
2610
293150104
Pop Rivet 3/16
2620
250000720
Torx Screw K50 X 16
2630
250200025
Washer M5
2700
705011513
RH Rear Inner Fender
2710
250000957
Гайкапружинная M6x1.0
2740
293150230
Tuflok Plastic Rivet
