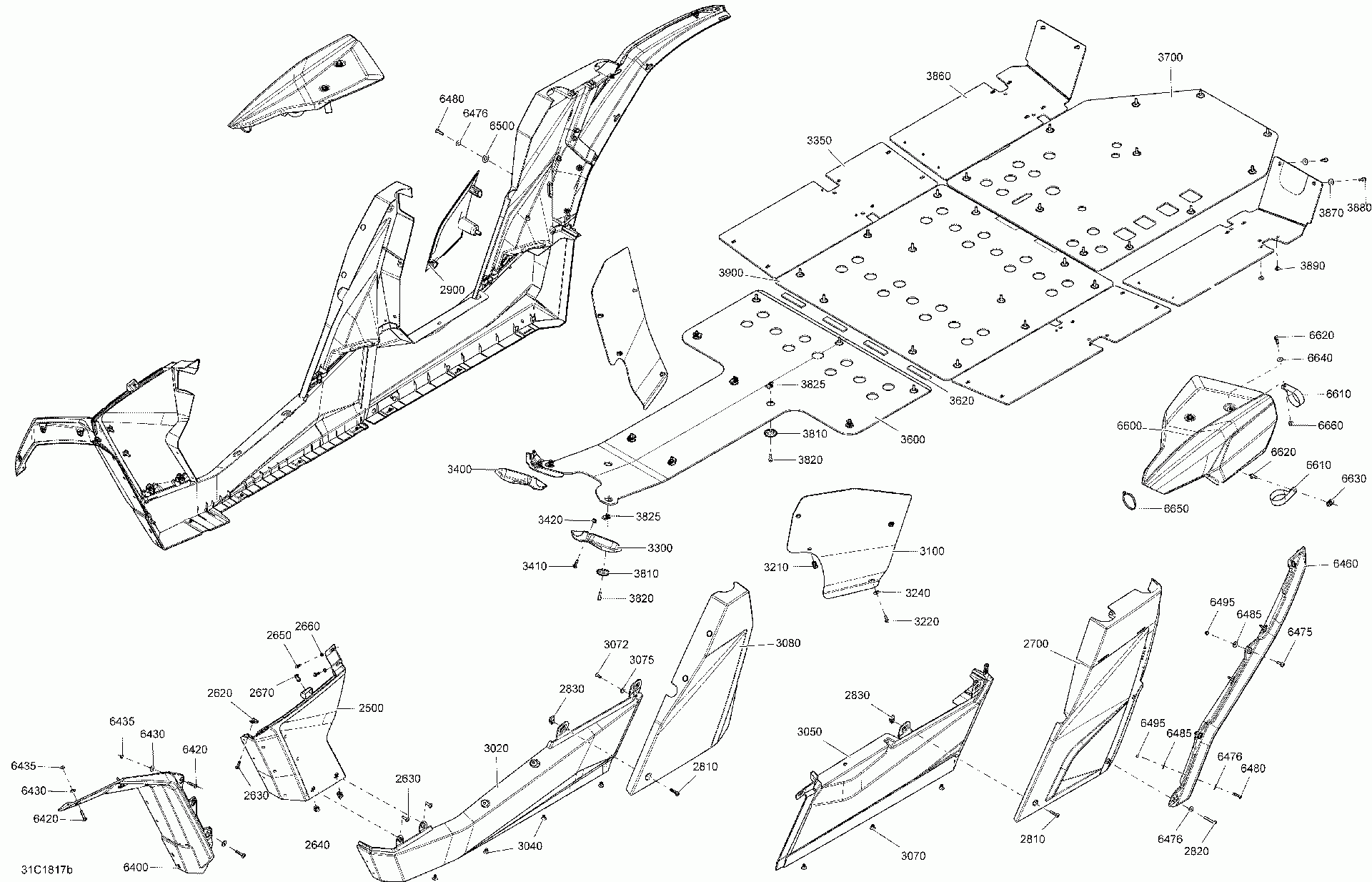

09- body central part maverick max - package xmr

Cam-am 2- Maverick MAX
Cam-am
#oem кодцена
2500
705012077
Painted Sunburst Yellow LH Front Panel
2500
705012078
Painted Sunburst Yellow RH Front Panel
2620
250000957
Гайкапружинная M6x1.0
2630
250000722
Torx Screw M6 X 20
2640
250000957
Гайкапружинная M6x1.0
2650
250000760
Torx Screw Truss Head PT.K50 X 20
2660
234051410
Flat Washer M5
2670
293150230
Tuflok Plastic Rivet
2700
705012083
Painted Carbon Black Lh Rear Panel
2700
705012089
Painted Carbon Black RH Rear Panel
2810
250000843
Torx Truss Screw M6 X 30
2820
250000748
Torx Screw M6 X 45
2830
250000957
Гайкапружинная M6x1.0
2900
705012090
Painted Carbon Black Panel Cover
3020
705005423
Black LH Lower Panel
3020
705005424
Black RH Lower Panel
3040
293150104
Pop Rivet 3/16
3050
705005425
Black LH Rear Lower Panel
3050
705005426
Black RH Rear Lower Panel
3070
293150104
Pop Rivet 3/16
3072
250000720
Torx Screw K50 X 16
3075
250200025
Washer M5
3080
705012091
Painted Carbon Black Lh Center Panel
3080
705012092
Painted Carbon Black Rh Center Panel
3100
705007827
Inner Fender
3210
293150230
Tuflok Plastic Rivet
3220
210261650
Hex. Flanged Screw M6 X 16
3240
234062670
Flat Washer, Stainless
3300
705006038
LH Bumper Skid Cap
3350
705008421
Side Protector Plate
3400
705006039
RH Bumper Skid Cap
3410
250000712
Torx Screw M6 X 20
3420
233261494
Hex. Elastic Flanged Nut M6
3600
705005798
Front Skid Plate
3620
291001932
Подушка изолирующая
3700
705005480
Rear Skid Plate
3810
705007171
Крышка крыльчатки
3820
210262050
Washer Head Hexagonal Screw
3825
250000957
Гайкапружинная M6x1.0
3860
705007038
RH Lateral Skid Plate
3870
250200097
Шайба
3880
210262050
Washer Head Hexagonal Screw
3890
293150104
Pop Rivet 3/16
3900
705009447
Skid Plate
6400
705008988
LH Front Deflector
6400
705008989
RH Front Deflector
6420
250000842
Torx Screw M6 X 30 Stainless
6430
234062670
Flat Washer, Stainless
6435
232561434
Elastic Stop Nut M6
6460
705007637
LH Rear Deflector
6460
705007638
RH Rear Deflector
6475
250000712
Torx Screw M6 X 20
6476
234062670
Flat Washer, Stainless
6480
250000758
Torx Screw M6 X 25
6485
234062670
Flat Washer, Stainless
6495
232561434
Elastic Stop Nut M6
6500
250200086
Шайба
6600
705012094
Painted Carbon Black LH Cage Cover
6600
705012095
Painted Carbon Black RH Cage Cover
6610
705005626
хомут
6620
207662054
Hex. Flanged Screw M6 X 20
6630
250000957
Гайкапружинная M6x1.0
6640
234062670
Flat Washer, Stainless
6650
293750008
Tie-Rap 350 mm
6660
233261494
Hex. Elastic Flanged Nut M6
