09- seat maverick max Оригинальные запчасти для мотовездеходов UTV Cam-am 2- Maverick MAX (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Оригинальные запчасти для мотовездеходов UTV
Cam-am
2018
2- Maverick MAX

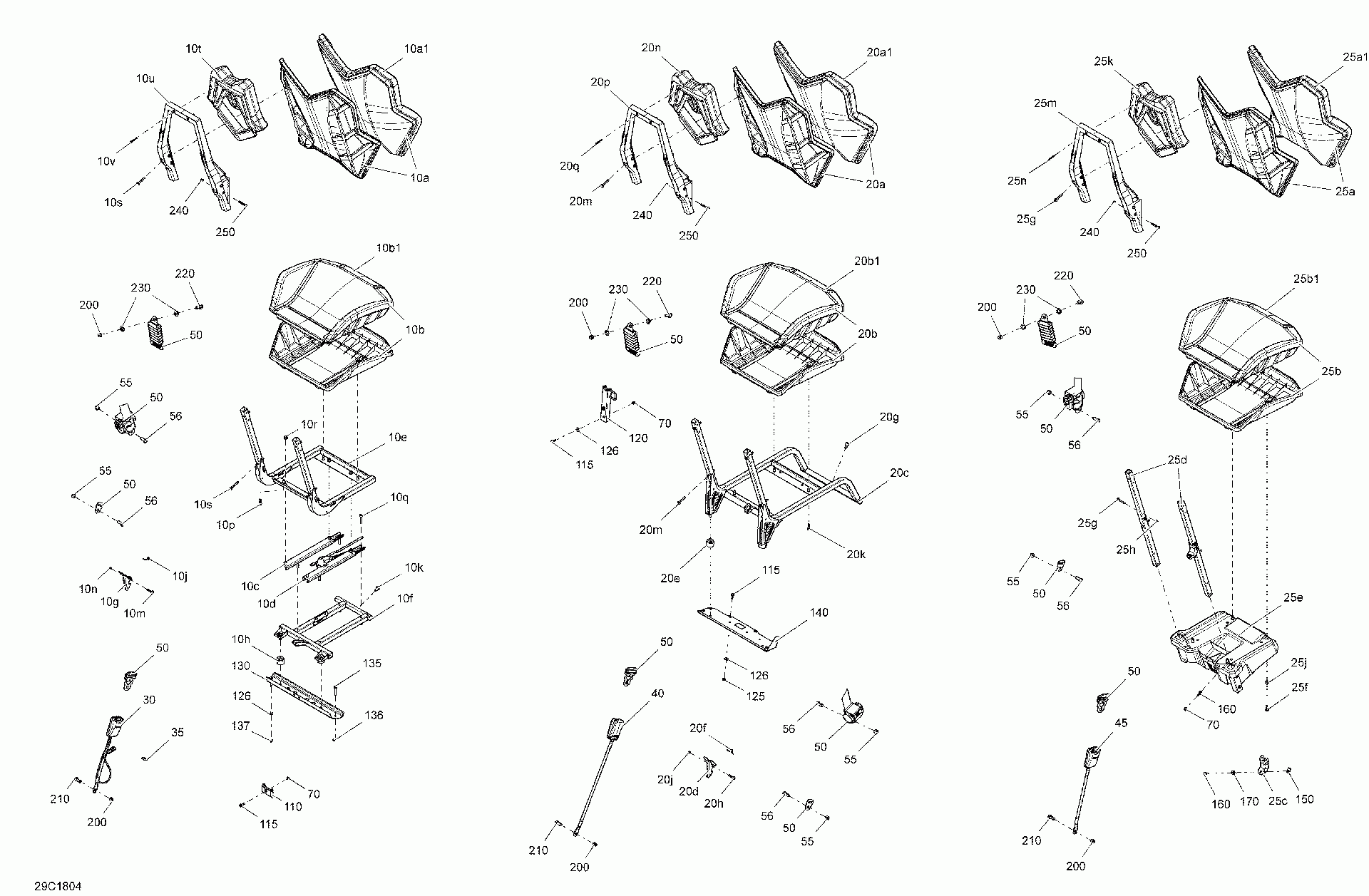

09- seat maverick max
09- seat maverick max

09- seat maverick max

Cam-am 2- Maverick MAX

09- seat maverick max

#

oem код

название

цена

10a

Backrest Assembly

Backrest Assembly

10a

Backrest

Backrest

10a1

Backrest Cover

Backrest Cover

10a1

Крышка

Крышка

10b

Подушка

Подушка

10b1

Seat Cover

Seat Cover

10b1

Крышка

Крышка

10c

LH Rail

LH Rail

10d

RH Rail

RH Rail

10e

Operator Seat Frame

Operator Seat Frame

10f

Seat Member

Seat Member

10g

Seat Latch

Seat Latch

10h

Rubber Bumper

Rubber Bumper

10j

Пружина

Пружина

10k

Socket Screw M10 X 16

Socket Screw M10 X 16

10m

Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

10n

Hex. Elastic Stop Nut M6

Hex. Elastic Stop Nut M6

10p

Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip

10q

Socket Head Screw M8 X 40

Socket Head Screw M8 X 40

10r

Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

10s

Hex. Flange Screw M6

Hex. Flange Screw M6

10t

Head Rest

Head Rest

10u

Seat Support

Seat Support

10v

Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40

20a

Backrest Assembly

Backrest Assembly

20a1

Backrest Cover

Backrest Cover

20b1

Seat Cover

Seat Cover

20c

Passenger Seat Frame

Passenger Seat Frame

20d

Seat Latch

Seat Latch

20e

Rubber Bumper

Rubber Bumper

20f

Пружина

Пружина

20g

Socket Screw M10 X 16

Socket Screw M10 X 16

20h

Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

20j

Hex. Elastic Stop Nut M6

Hex. Elastic Stop Nut M6

20k

Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip

20m

Hex. Flange Screw M6

Hex. Flange Screw M6

20n

Head Rest

Head Rest

20p

Seat Support

Seat Support

20q

Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40

25a

Backrest Assembly

Backrest Assembly

25a

Backrest

Backrest

25a1

Backrest Cover

Backrest Cover

25a1

Крышка

Крышка

25b

Подушка

Подушка

25b1

Seat Cover

Seat Cover

25b1

Крышка

Крышка

25c

Rear Anchor

Rear Anchor

25d

Side Tube

Side Tube

25e

Seat Support

Seat Support

25f

Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip

25g

Hex. Flange Screw M6

Hex. Flange Screw M6

25h

Hex. Elastic Flange Nut M6

Hex. Elastic Flange Nut M6

25j

Flat Washer, Stainless

Flat Washer, Stainless

25k

Head Rest

Head Rest

25m

Seat Support

Seat Support

25n

Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40

30

Driver Buckle Side

Driver Buckle Side

35

Tie-Rap 350 mm

Tie-Rap 350 mm

40

Passenger Buckle Side

Passenger Buckle Side

45

Rear Passenger Buckle Side

Rear Passenger Buckle Side

50

Safety Belt

Safety Belt

55

Nylon Insert Hex. Lock Nut 7/16-20

Nylon Insert Hex. Lock Nut 7/16-20

70

Вставка

Вставка

110

Фиксатор

Фиксатор

115

Flanged Hex. Screw S.GRIP M6 X 20

Flanged Hex. Screw S.GRIP M6 X 20

120

Фиксатор

Фиксатор

125

Hex. Flanged Nut M6

Hex. Flanged Nut M6

126

Flat Washer, Stainless

Flat Washer, Stainless

130

Seat Support

Seat Support

135

Hex. Flanged Screw M6 X 1.0 X 45

Hex. Flanged Screw M6 X 1.0 X 45

136

Panel Nut M6 X 1.0

Panel Nut M6 X 1.0

137

Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

140

Суппорт

Суппорт

150

Panel Nut M6 X 1.0

Panel Nut M6 X 1.0

160

Flanged Hex. Screw S.GRIP M6 X 20

Flanged Hex. Screw S.GRIP M6 X 20

170

Conical Spring Washer M8

Conical Spring Washer M8

200

Nylon Insert Hex. Lock Nut 7/16-20

Nylon Insert Hex. Lock Nut 7/16-20

220

Safety Belt Screw

Safety Belt Screw

230

Position Washer

Position Washer

240

Hex. Elastic Flange Nut M6

Hex. Elastic Flange Nut M6

250

Hex. Flange Screw M6

Hex. Flange Screw M6
