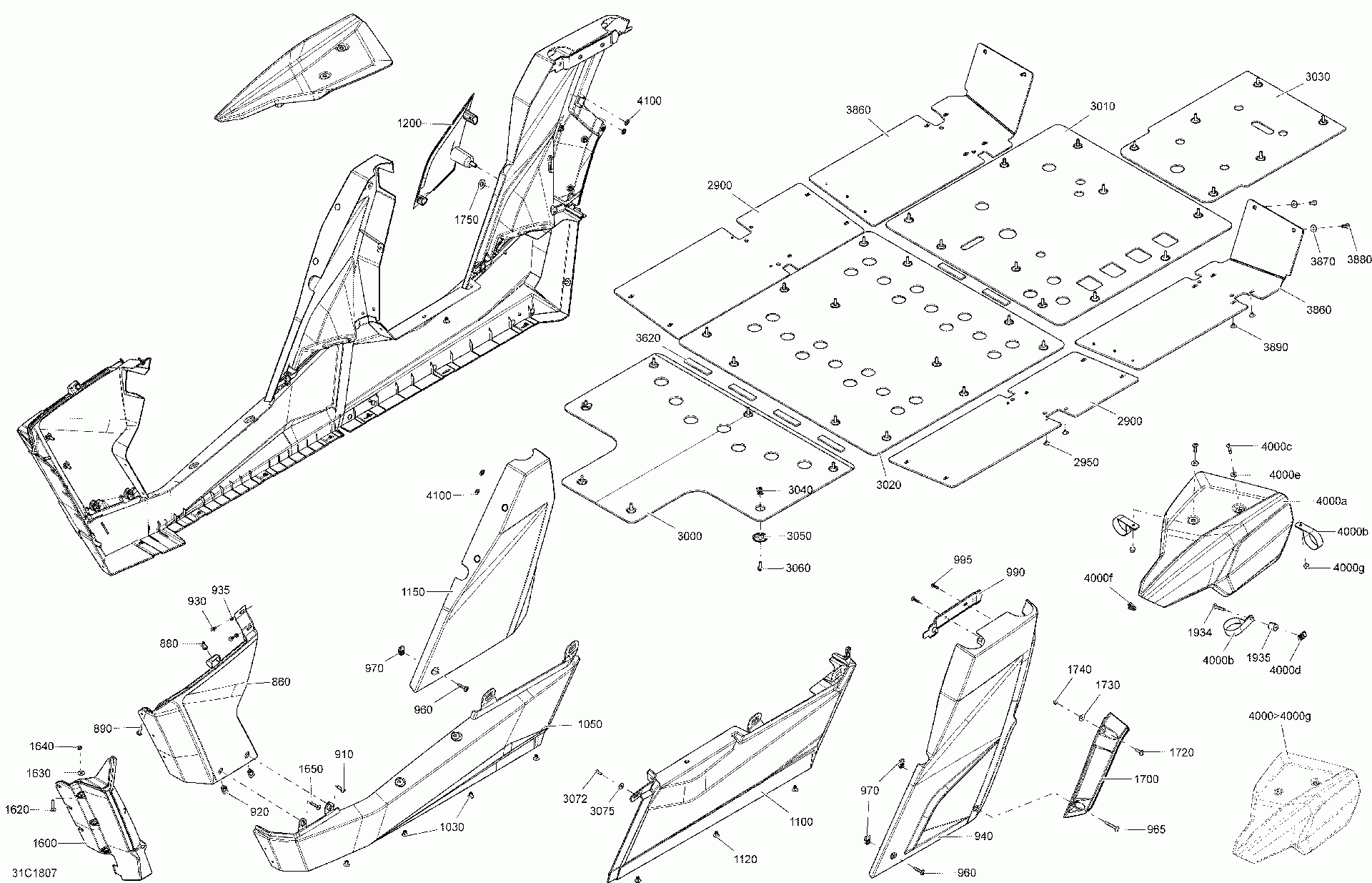

09- body and accessories commander max - central midnight blue models

Cam-am 4- Commander MAX 1000R EFI
Cam-am
#oem кодцена
860
705011654
Painted Midnight Blue Left Front Panel
870
705011655
Painted Midnight BlueRight Front Panel
880
293150230
Tuflok Plastic Rivet
890
250000722
Torx Screw M6 X 20
900
250000957
Гайкапружинная M6x1.0
910
250000722
Torx Screw M6 X 20
915
250000722
Torx Screw M6 X 20
920
250000957
Гайкапружинная M6x1.0
930
250000760
Torx Screw Truss Head PT.K50 X 20
935
234051410
Flat Washer M5
940
705011724
Painted Midnight Blue Left Rear Panel
950
705011727
Painted Midnight Blue Right Rear Panel
960
250000843
Torx Truss Screw M6 X 30
965
250000748
Torx Screw M6 X 45
970
250000957
Гайкапружинная M6x1.0
990
705007916
Support Skid Plate
995
250000760
Torx Screw Truss Head PT.K50 X 20
1030
293150104
Pop Rivet 3/16
1050
705005423
Black LH Lower Panel
1050
705007035
Black LH Lower Panel
1060
705005424
Black RH Lower Panel
1060
705007036
Black RH Lower Panel
1100
705005425
Black LH Rear Lower Panel
1110
705005426
Black RH Rear Lower Panel
1120
293150104
Pop Rivet 3/16
1150
705011681
Painted Midnight Blue LH Center Panel
1160
705011682
Painted Midnight Blue RH Center Panel
1200
705011738
Painted Midnight Blue Panel Cover
1600
705008668
LH Lower Black Mudguard
1610
705008669
RH Lower Black Mudguard
1620
250000842
Torx Screw M6 X 30 Stainless
1630
234062670
Flat Washer, Stainless
1640
232561434
Elastic Stop Nut M6
1650
250000842
Torx Screw M6 X 30 Stainless
1700
705008670
LH Rear Lower Black Mudguard
1710
705008672
RH Rear Lower Black Mudguard
1720
250000712
Torx Screw M6 X 20
1730
234062670
Flat Washer, Stainless
1740
232561434
Elastic Stop Nut M6
1750
250200086
Шайба
2900
705008421
Side Protector Plate
2950
293150104
Pop Rivet 3/16
3000
705007055
Middle Protector Plate
3010
705007056
Rear Protector Plate
3020
705009447
Skid Plate
3030
705007227
Rear Protector Plate
3040
250000957
Гайкапружинная M6x1.0
3050
705007171
Крышка крыльчатки
3060
210262050
Washer Head Hexagonal Screw
3072
250000720
Torx Screw K50 X 16
3075
250200025
Washer M5
3620
291001932
Подушка изолирующая
3860
705007038
RH Lateral Skid Plate
3870
250200097
Шайба
3880
210262050
Washer Head Hexagonal Screw
3890
293150104
Pop Rivet 3/16
4000>4000e
705012096
Kit Cage Cover Midnight Blue
4000a
705005626
хомут
4000b
207662054
Hex. Flanged Screw M6 X 20
4000c
250000957
Гайкапружинная M6x1.0
4000d
234062670
Flat Washer, Stainless
4000e
233261494
Hex. Elastic Flanged Nut M6
