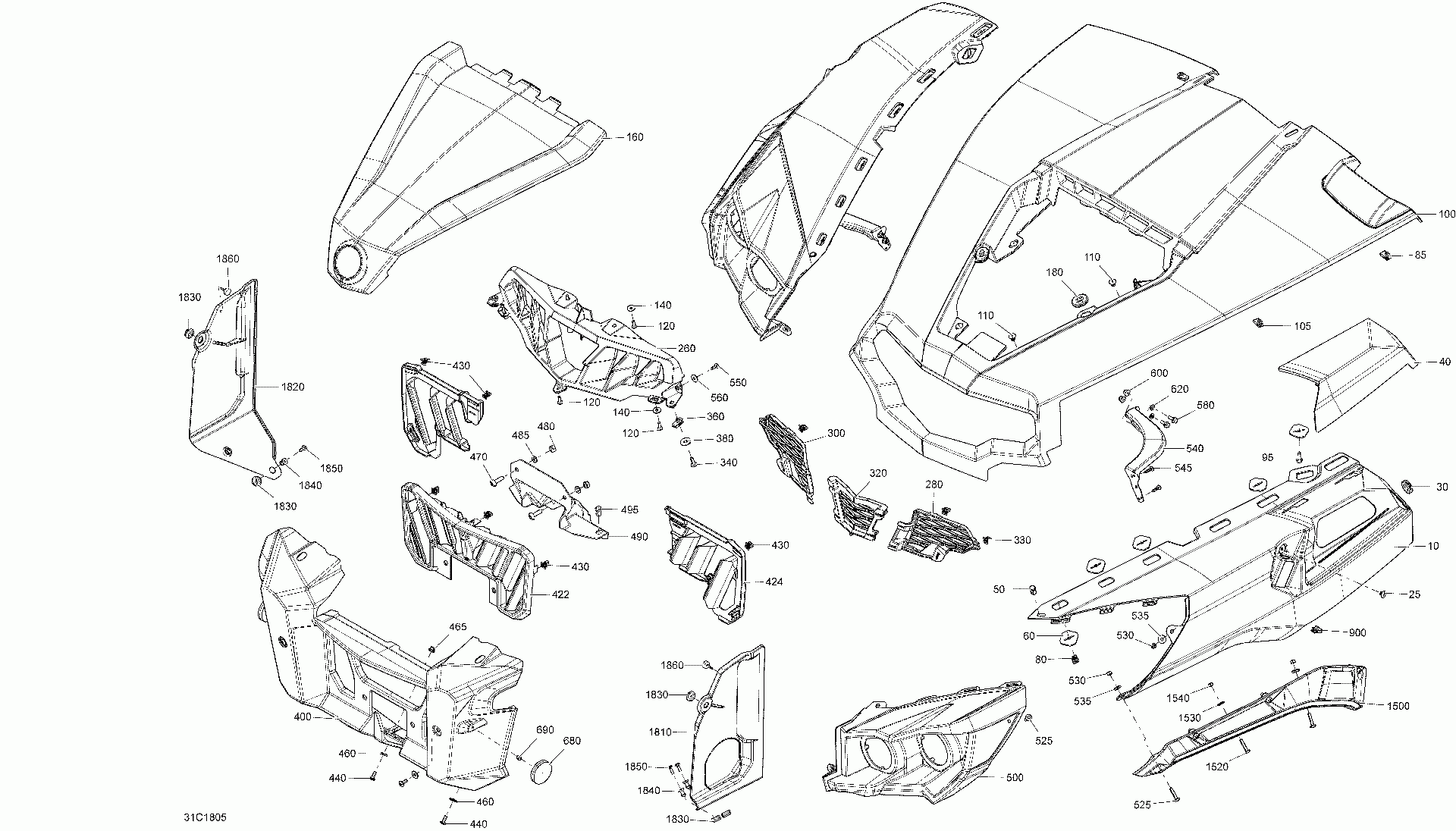

09- body and accessories commander max - front squadron green models

Cam-am 4- Commander MAX 1000R EFI
Cam-am
#oem кодцена
10
705011531
Left Front Fender Squadron Green
20
705011532
Right Front Fender Squadron Green
25
293150104
Pop Rivet 3/16
30
517303756
Уплотнитель резиновый
40
705011533
CVT Inlet Cover Squadron Green
50
293150230
Tuflok Plastic Rivet
60
705003841
Support Plate
80
517302785
Зажим
85
250000957
Гайкапружинная M6x1.0
95
207662054
Hex. Flanged Screw M6 X 20
100
705011535
Squadron Green Fixed Hood
105
250000957
Гайкапружинная M6x1.0
110
293150104
Pop Rivet 3/16
120
250000720
Torx Screw K50 X 16
140
234062670
Flat Washer, Stainless
160
705011536
Squadron Green Removable Hood
180
705005156
Oval Washer
260
705003629
Upper Facia, Black
280
705004350
LH Upper Facia Protector
300
705004351
RH Upper Facia Protector
320
705004336
Center Upper Facia Protector
330
517302785
Зажим
340
250000722
Torx Screw M6 X 20
360
250000957
Гайкапружинная M6x1.0
380
234082410
Flat Washer 8 mm
400
705008689
Black Front Facia
422
705004755
Lower Front Facia Protector
424
705004819
LH Lower Rear Facia Protector
426
705004820
RH Lower Rear Facia Protector
430
517302785
Зажим
440
250000755
Torx Screw M6 X 16
460
234062670
Flat Washer, Stainless
465
250100199
Вставка
470
250000745
Torx Truss M/S M8 X30
480
232081414
Hex. Nut M8
485
234081410
Flat Washer 8 mm
490
705003399
Bottom Deflector
495
293150230
Tuflok Plastic Rivet
500
705002885
LH Front Facia
520
705002886
RH Front Facia
525
250000842
Torx Screw M6 X 30 Stainless
530
232561434
Elastic Stop Nut M6
535
234062670
Flat Washer, Stainless
540
705002891
Facia Front Support
545
250000760
Torx Screw Truss Head PT.K50 X 20
550
250000720
Torx Screw K50 X 16
560
234062670
Flat Washer, Stainless
580
207661644
Hex. Flanged Screw M6 X 16
600
233261414
Hex. Flanged Elastic Nut M6
620
234061600
Flat Washer M6, Stainless
680
705011222
Amber Reflector
900
250000957
Гайкапружинная M6x1.0
1500
705008666
LH Black Upper Front Mudguard
1510
705008667
RH Black Upper Front Mudguard
1520
250000842
Torx Screw M6 X 30 Stainless
1530
234062670
Flat Washer, Stainless
1540
232561434
Elastic Stop Nut M6
1810
705002895
LH Deflector
1810
705005113
LH Deflector
1820
705002894
RH Deflector
1830
709000582
Уплотнитель резиновый
1840
517303439
Ручка
1850
250000720
Torx Screw K50 X 16
1860
708000759
Резиновые стопоры
