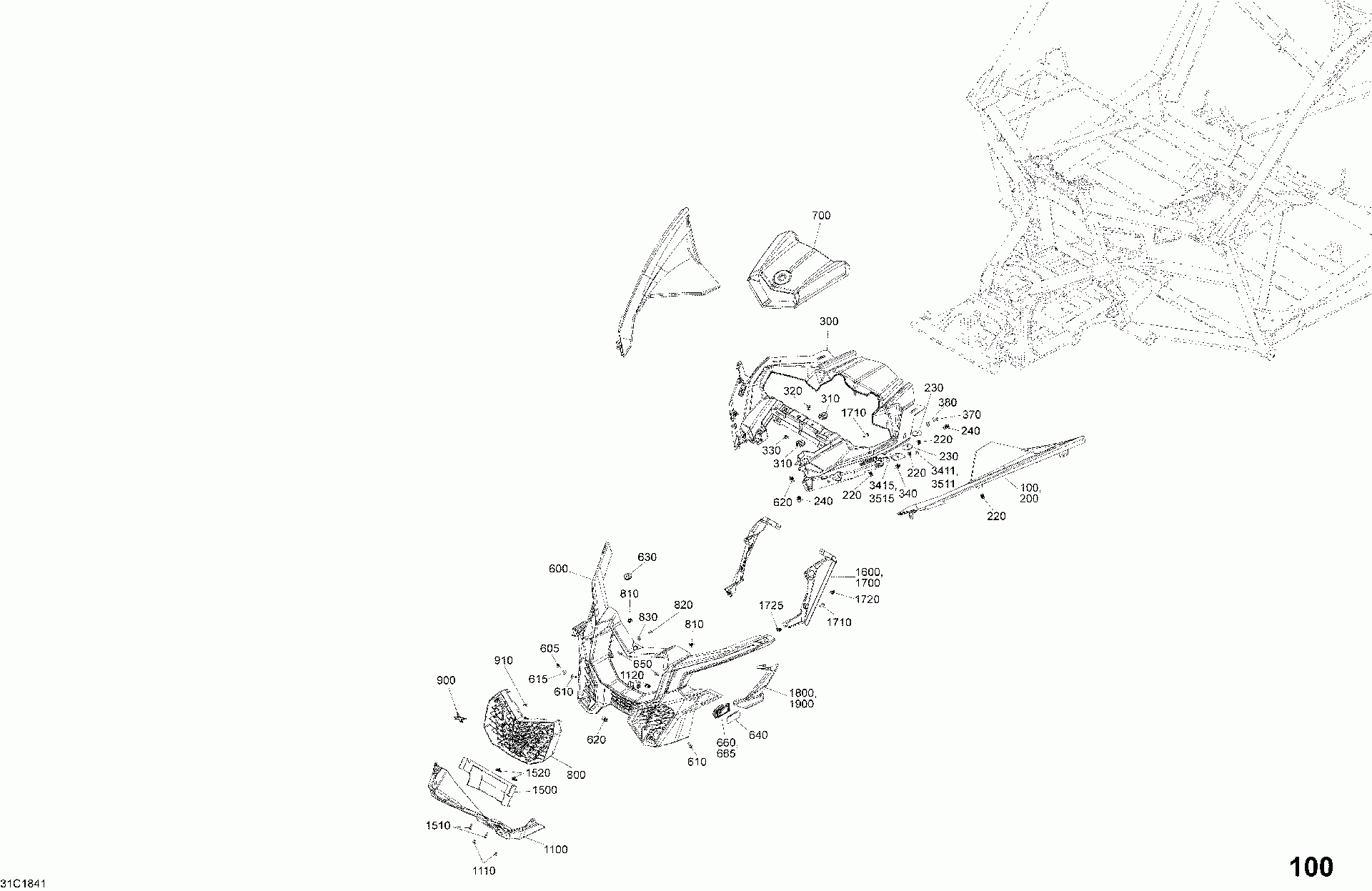

09- body parts - triple black - package xds dps - front section

Cam-am 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS
Cam-am
#oem кодцена
100
705011087
Black LH Front Fender
200
705011091
Black RH Front Fender
220
517302785
Зажим
230
705003841
Support Plate
240
250000957
Extruded Panel Nut M6
300
705010671
Central Hood
310
705010718
Уплотнитель резиновый
320
293150230
Tuflok Plastic Rivet
330
250000722
Torx Screw M6 X 20
340
250000957
Extruded Panel Nut M6
370
250000722
Torx Screw M6 X 20
380
234062670
Flat Washer, Stainless
600
705009508
Front Facia
605
250000722
Torx Screw M6 X 20
610
250000722
Torx Screw M6 X 20
615
234062670
Flat Washer, Stainless
620
250000957
Extruded Panel Nut M6
630
517303756
Уплотнитель резиновый
640
520000271
Amber Reflector
650
250000720
Torx Screw K50 X 16
660
705011806
LH Reflector Support
665
705011814
RH Reflector Support
700
705011095
Black Facia cover
810
517302785
Зажим
820
250000720
Torx Screw K50 X 16
830
250200025
Washer M5
900
705010885
Logo
910
250000725
Screw M4 X 16
1100
705009978
Front Deflector
1110
293150103
Black Pop Rivet 3/16
1120
250000957
Extruded Panel Nut M6
1500
705010742
Lower Radiator deflector
1510
250000722
Torx Screw M6 X 20
1520
250000957
Extruded Panel Nut M6
1600
705010626
LH Radiator deflector
1700
705010627
RH Radiator deflector
1710
250000722
Torx Screw M6 X 20
1720
517302785
Зажим
1725
250000957
Extruded Panel Nut M6
1800
705010628
LH Light Cover
1900
705010629
RH Light Cover
3411
250000712
Torx Screw M6 X 20
3415
233261494
Hex. Elastic Flanged Nut M6
3511
250000712
Torx Screw M6 X 20
3515
233261494
Hex. Elastic Flanged Nut M6
