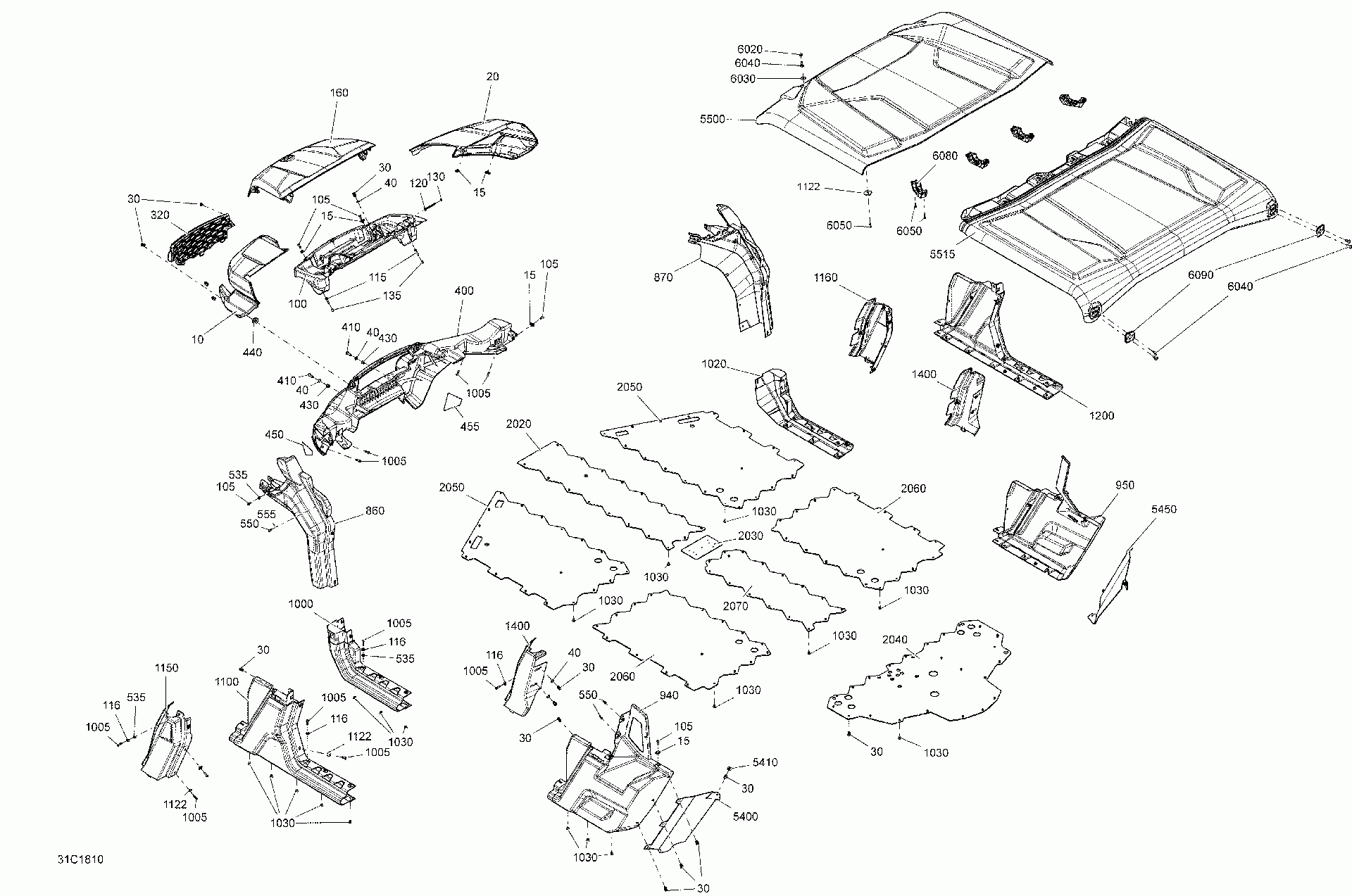

09- body defender max - squadron green models

Cam-am 6- Defender MAX HD8
Cam-am
#oem кодцена
10
705012590
Front Left Green Fender
15
250000957
Гайкапружинная M6x1.0
20
705012591
Front Right Green Fender
30
293150230
Tuflok Plastic Rivet
40
503192494
Шайба
100
705011391
Service Center
105
250000722
Torx Screw M6 X 20
115
210263050
Flanged Hex. Screw M6 X 30
116
234062670
Flat Washer, Stainless
120
207667554
Screw Hex Flange M6 X 75
130
732610072
Push Nut
135
293900125
Втулка
160
705012592
Green Removable Hood
320
705009364
Grid Front Fascia
400
705011392
Front Facia
410
250000886
Torx Screw M8 X 30
430
233281414
Hex. Flanged Elastic Nut M8
440
705010718
Уплотнитель резиновый
450
704905072
LH Front Reflector
455
704905073
RH Front Reflector
535
250100199
Вставка
550
250000720
Torx Screw K50 X 16
555
234051670
Flat Washer M5
860
705008152
LH Front Lateral Panel
870
705008153
RH Front Lateral Panel
940
705012704
Rear Left Side Panel
950
705012705
Rear Right Side Panel
1000
705008699
LH Central Lateral Panel
1005
250000807
Torx Screw M6 X 25
1020
705008700
RH Central Lateral Panel
1030
293150108
Pop Rivet 3/16
1100
705013112
Middle Side Panel LH
1122
250200162
Flat Washer M6.6 X 22
1150
705010601
Middle Cage Cover LH
1160
705010602
Middle Cage Cover RH
1200
705013113
Middle Side Panel RH
1400
715003565
Rear Cage Cover Kit RH
2020
705009151
Central Skid Plate
2030
705010884
Connection Plate
2040
705011292
Rear Skid Plate
2070
705010588
Rear Central Skid Plate
5400
705010426
LH Rear Deflector
5410
292001663
Flat Washer 8 mm, Nylon
5450
705010427
RH Rear Deflector
5500
715003038
Sport Roof Kit MAX
