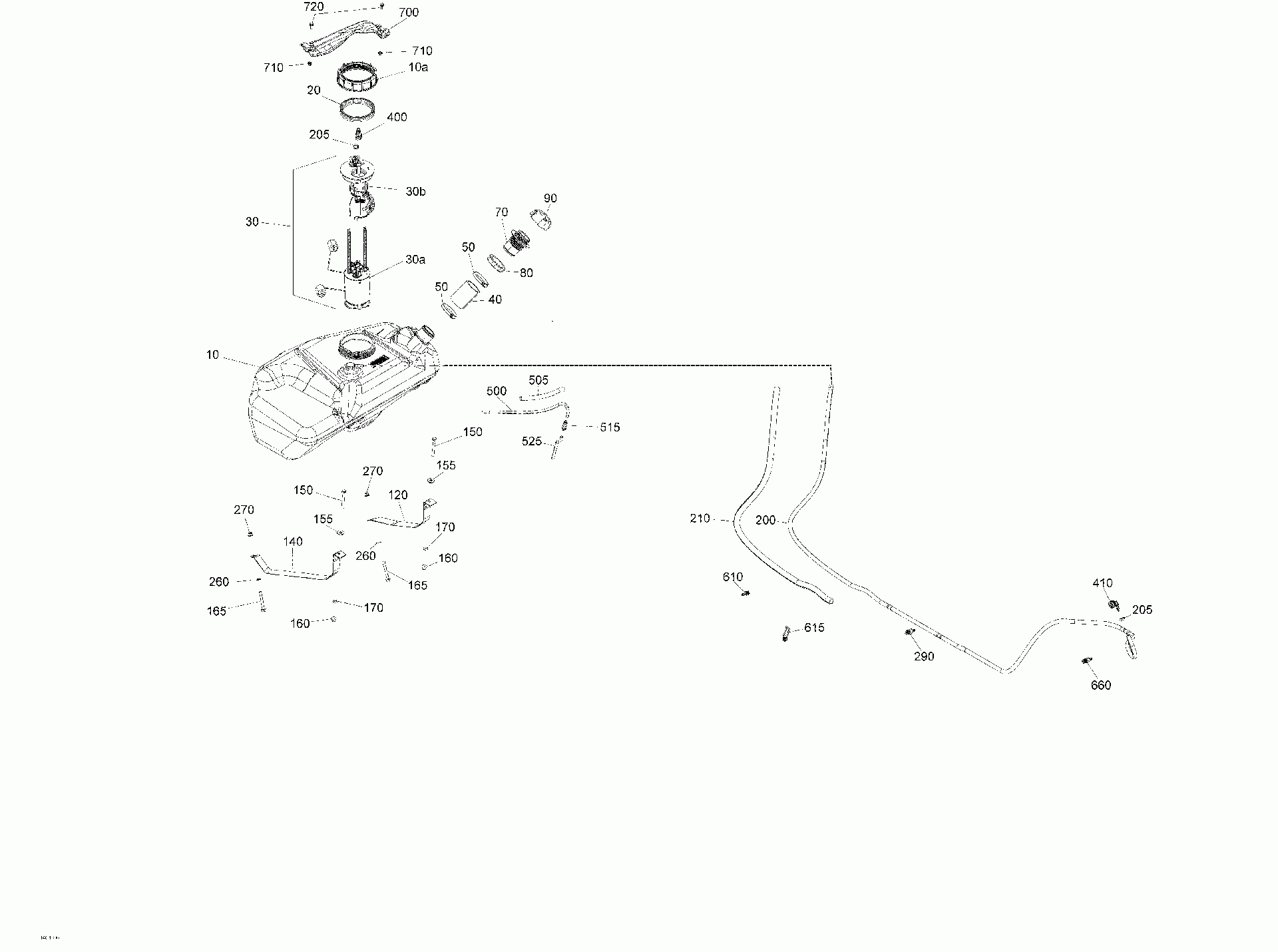

02- fuel package xmr

Cam-am 7- Maverick X3 Turbo R - XMR
Cam-am
#oem кодцена
10
709000706
Топливный бак
10a
250100062
Special Nut M130
20
293250173
Прокладка
30
709001057
Fuel Pump
30
709001056
Fuel Pump
30a
270600113
Fuel Filter
30b
715900424
Fuel Sender
40
709000748
Filler Neck
50
293650081
Norma Clamp
70
709000867
Filler Neck
80
211100012
Filler Neck Nut, Fuel
90
709000868
Fuel Cap
120
709000910
Fuel Tank Strap
140
709000911
Fuel Tank Strap
150
207187544
Hex. Screw, M8 X 75
155
234082410
Flat Washer 8 mm
160
233281414
Hex. Flanged Elastic Nut M8
165
207686544
Hex. Flanged Screw, M8 X 65
170
234081410
Flat Washer 8 mm
200
709000516
Трубопровод
205
293650047
Crimp Clamp
210
415080000
Tubing 16 mm
260
234081410
Flat Washer 8 mm
270
233281414
Hex. Flanged Elastic Nut M8
400
275500921
Quick Disconnect
410
293710105
Elbow Fitting 90?
500
415080200
Hose, Polyurethane
505
415079900
Tubing 10 mm
515
709000330
Фильтр
525
415080200
Hose, Polyurethane
700
707900594
Connector Protector
710
250100199
Вставка
720
207561644
Hex. Flanged Screw M6 X 16, Scotch Grip
988
414115200
Стяжка 180мм
988
293750002
Tie-Rap 142 mm
988
710003168
Christmas Tree Tie-Rap 200 mm
988
293750008
Tie-Rap 350 mm
