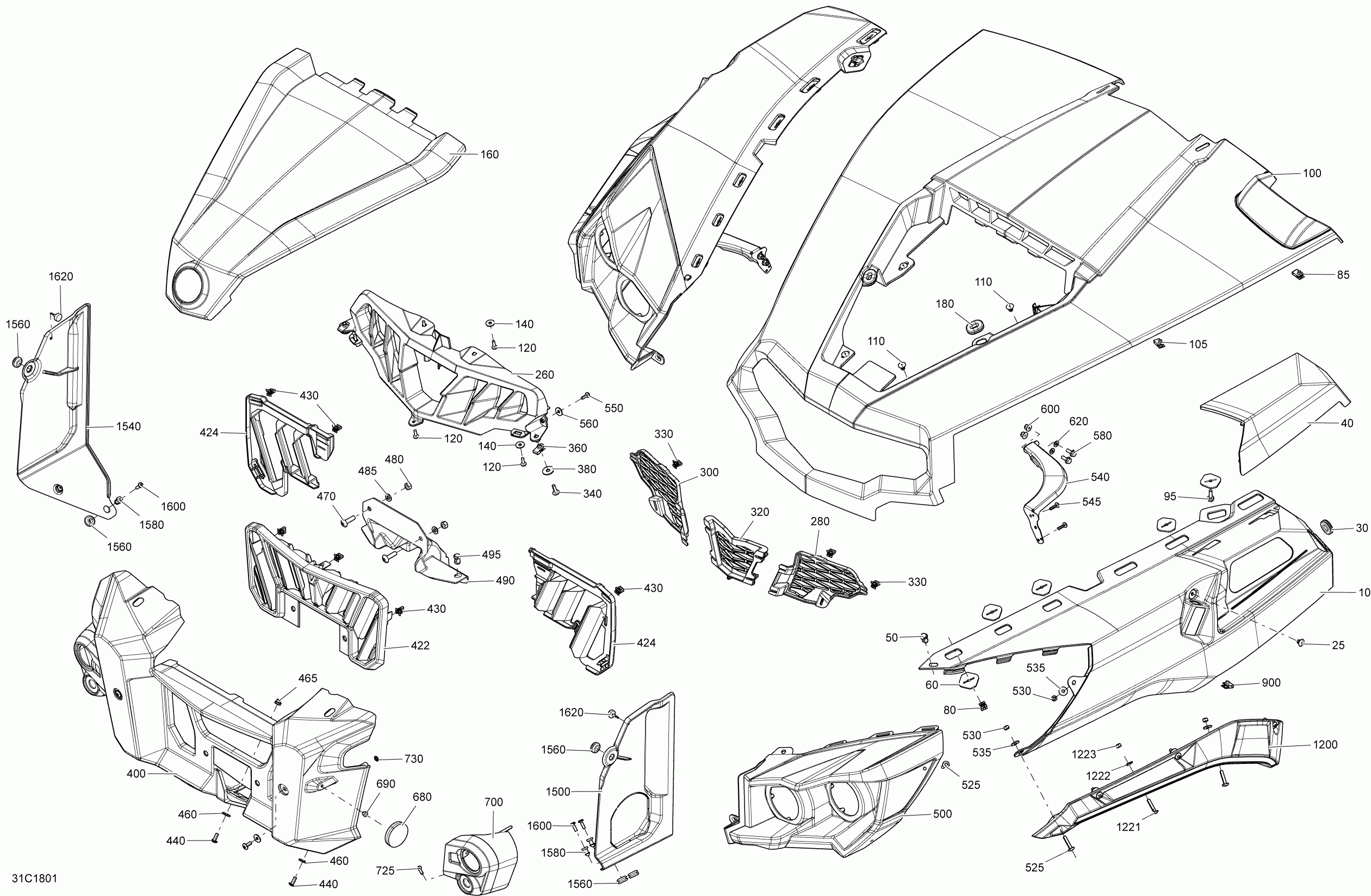

09- body and accessories commander non max - front brushed aluminium models

Cam-am Commander 1000R EFI
Cam-am
#oem кодцена
10
705008340
Brush Aluminum LH Front Fender
20
705008342
Brush Aluminum RH Front Fender
25
293150104
Pop Rivet 3/16
30
517303756
Уплотнитель резиновый
40
705008344
Brush Aluminum CVT Inlet Cover
50
293150230
Tuflok Plastic Rivet
60
705003841
Support Plate
80
517302785
Зажим
85
250000957
Гайкапружинная M6x1.0
95
207662054
Hex. Flanged Screw M6 X 20
100
705008346
Brush Aluminum Fixed Hood
105
250000957
Гайкапружинная M6x1.0
110
293150104
Pop Rivet 3/16
120
250000720
Torx Screw K50 X 16
140
234062670
Flat Washer, Stainless
160
705012019
Painted Hood Black Darth Vader
180
705005156
Oval Washer
260
705003629
Upper Facia, Black
280
705004350
LH Upper Facia Protector
300
705004351
RH Upper Facia Protector
320
705004336
Center Upper Facia Protector
330
517302785
Зажим
340
250000722
Torx Screw M6 X 20
360
250000957
Гайкапружинная M6x1.0
380
234082410
Flat Washer 8 mm
400
705008689
Black Front Facia
400
705010654
FRONT FACIA
422
705004755
Lower Front Facia Protector
424
705004819
LH Lower Rear Facia Protector
424
705004820
RH Lower Rear Facia Protector
430
517302785
Зажим
440
250000755
Torx Screw M6 X 16
460
234062670
Flat Washer, Stainless
465
250100199
Вставка
470
250000745
Torx Truss M/S M8 X30
480
232081414
Hex. Nut M8
485
234081410
Flat Washer 8 mm
490
705003399
Bottom Deflector
495
293150230
Tuflok Plastic Rivet
500
705002885
LH Front Facia
500
705002886
RH Front Facia
525
250000842
Torx Screw M6 X 30 Stainless
530
232561434
Elastic Stop Nut M6
535
234062670
Flat Washer, Stainless
540
705002891
Facia Front Support
545
250000760
Torx Screw Truss Head PT.K50 X 20
550
250000720
Torx Screw K50 X 16
560
234062670
Flat Washer, Stainless
580
207661644
Hex. Flanged Screw M6 X 16
600
233261414
Hex. Flanged Elastic Nut M6
620
234061600
Flat Washer M6, Stainless
680
705011222
Amber Reflector
900
250000957
Гайкапружинная M6x1.0
1200
705008666
LH Black Upper Front Mudguard
1200
705008667
RH Black Upper Front Mudguard
1200
705008668
LH Lower Black Mudguard
1200
705008669
RH Lower Black Mudguard
1200
705008670
LH Rear Lower Black Mudguard
1200
705008672
RH Rear Lower Black Mudguard
1221
250000842
Torx Screw M6 X 30 Stainless
1222
234062670
Flat Washer, Stainless
1223
232561434
Elastic Stop Nut M6
1500
705005113
LH Deflector
1500
705002895
LH Deflector
1540
705002894
RH Deflector
1560
709000582
Уплотнитель резиновый
1580
517303439
Ручка
1600
250000720
Torx Screw K50 X 16
1620
708000759
Резиновые стопоры
