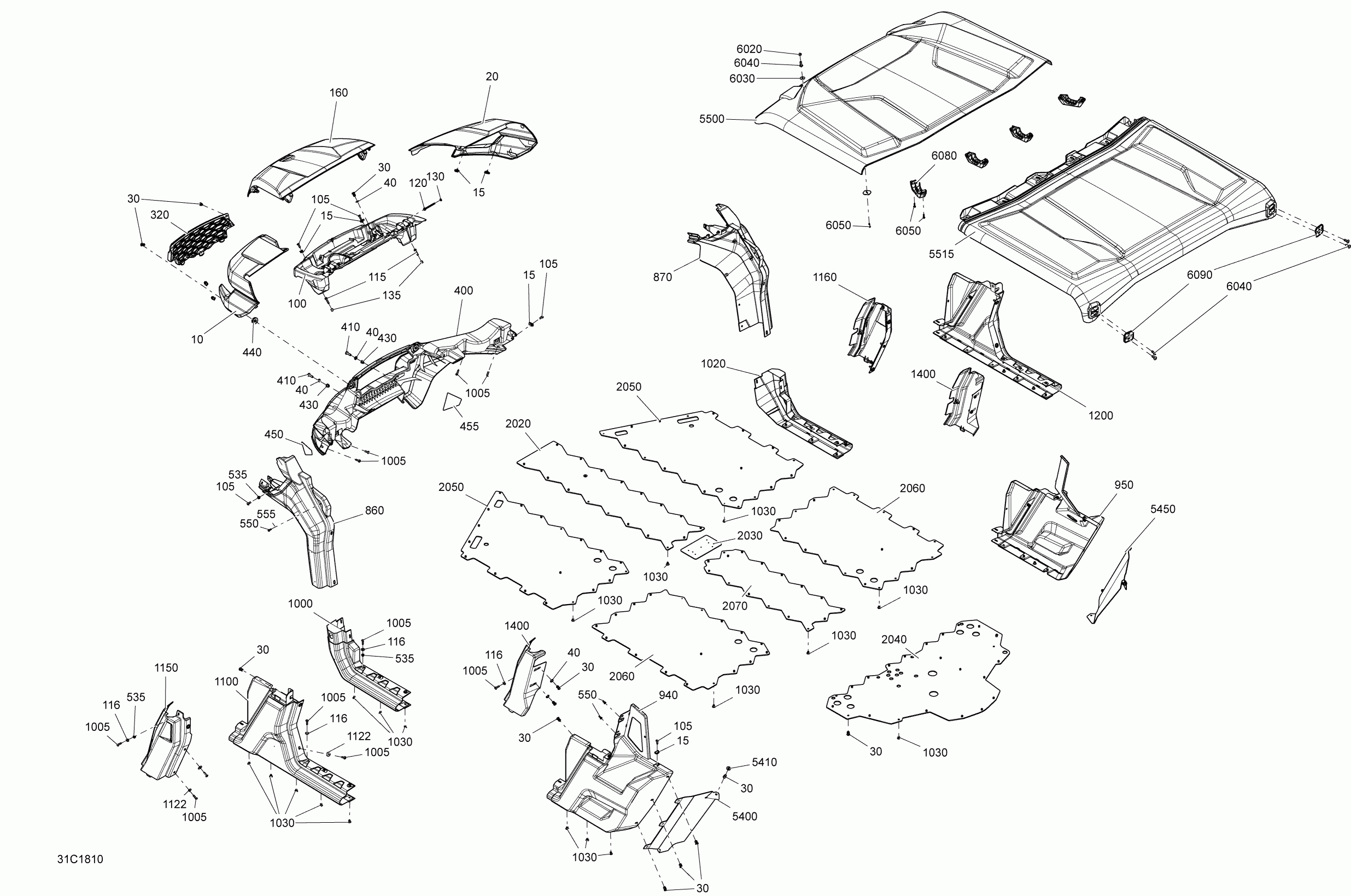

09- body defender max - pure magnesium models

Cam-am Defender MAX HD8
Cam-am
#oem кодцена
10
705011409
Magnesium LH Front Fender
15
250000957
Гайкапружинная M6x1.0
20
705011410
Magnesium RH Front Fender
30
293150230
Tuflok Plastic Rivet
40
503192494
Шайба
100
705011391
Service Center
105
250000722
Torx Screw M6 X 20
115
210263050
Flanged Hex. Screw M6 X 30
116
234062670
Flat Washer, Stainless
120
207667554
Screw Hex Flange M6 X 75
130
732610072
Push Nut
135
293900125
Втулка
160
705011401
Magnesium Front Service Cover
320
705009364
Grid Front Fascia
400
705011392
Front Facia
410
250000886
Torx Screw M8 X 30
430
233281414
Hex. Flanged Elastic Nut M8
440
705010718
Уплотнитель резиновый
450
704905072
LH Front Reflector
455
704905073
RH Front Reflector
535
250100199
Вставка
550
250000720
Torx Screw K50 X 16
555
234051670
Flat Washer M5
860
705008152
LH Front Lateral Panel
870
705008153
RH Front Lateral Panel
940
705012704
Rear Left Side Panel
950
705012705
Rear Right Side Panel
1000
705008699
LH Central Lateral Panel
1005
250000807
Torx Screw M6 X 25
1020
705008700
RH Central Lateral Panel
1030
293150108
Pop Rivet 3/16
1100
705013112
Middle Side Panel LH
1122
250200162
Flat Washer M6.6 X 22
1150
705010601
Middle Cage Cover LH
1150
705011955
Middle Left Cage Cover
1160
705010602
Middle Cage Cover RH
1160
705011957
Middle Right Cage Cover
1200
705013113
Middle Side Panel RH
1400
715003565
Rear Cage Cover Kit RH
2020
705009151
Central Skid Plate
2030
705010884
Connection Plate
2040
705011292
Rear Skid Plate
2050
705010422
Lateral Skid Plate
2060
705010587
Rear Side Skid Plate
2070
705010588
Rear Central Skid Plate
5400
705010426
LH Rear Deflector
5410
292001663
Flat Washer 8 mm, Nylon
5450
705010427
RH Rear Deflector
5500
715003038
Sport Roof Kit MAX
6020
232081414
Hex. Nut M8
6030
234082410
Flat Washer 8 mm
6040
250000874
Torx Truss M8 X 25
6050
250000760
Torx Screw Truss Head PT.K50 X 20
6080
705800131
Roof Anchor
6090
705800058
Roof Cap
5520a
293250393
Extrusion
