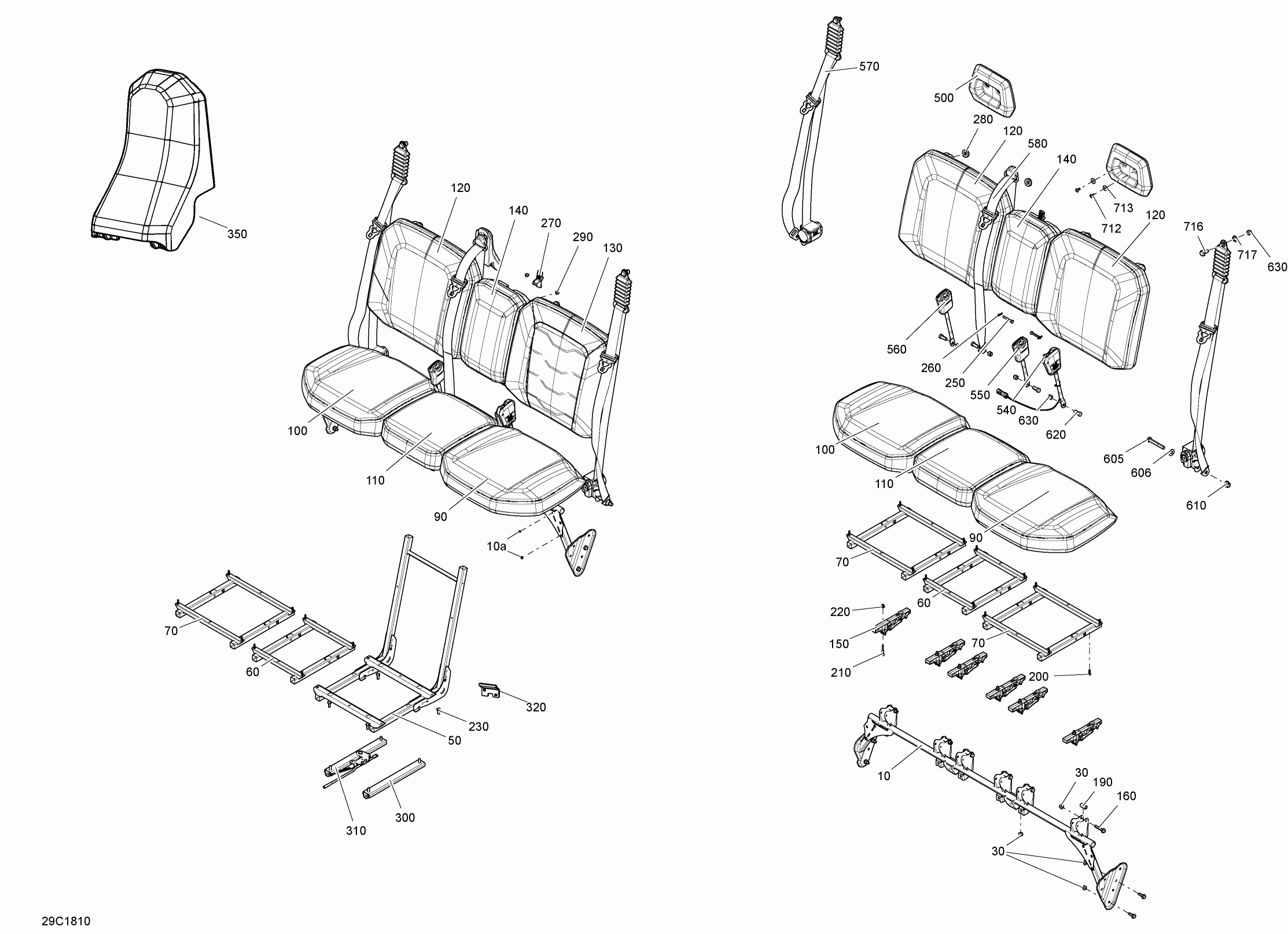

09- seat - defender max - hd8

Cam-am Defender MAX HD8
Cam-am
#oem кодцена
10
708002817
Seat Support
10a
390402200
Pop Rivet 3/16
30
233281414
Hex. Flanged Elastic Nut M8 X 1.25
50
708001723
Operator Seat Member
50a
390402200
Pop Rivet 3/16
60
708002815
Mid Seat Member
70
708002821
Passenger Seat Member
130a
293830005
Rubber Bumper
150
708002581
Seat Base Pivot
160
207684544
Hex. Flanged Screw M8 X 45
190
708001903
Втулка
200
250000760
Torx Screw Truss Head K50X20 T20
210
207064544
Hex. Screw M6 X 45
220
233261414
Hex. Flanged Elastic Nut M6 x 1.0
250
250400069
Штифт
260
269800431
Hairpin
270
269501487
Защёлка
280
517303756
Уплотнитель резиновый
290
293830005
Rubber Bumper
300
708000848
LH Rail
310
708002001
RH Rail
320
708002640
Seat Stopper
350
708002293
Крышка
500
708002853
Head Rest
540
708002331
Driver Buckle
550
708002330
Middle Buckle
560
708002329
Passenger Buckle
570
708002642
Lateral Safety Belt
580
708002643
Central Safety Belt
605
207028046
Hex. Screw M12 X 80
606
250200102
Flat Washer M12
610
233221416
Elastic Flange Nut M12
630
250100183
Lock Nut Nylon 7/16
712
250000721
Torx Screw
713
250200162
Flat Washer M6.6 X 22
716
708000890
Safety Belt Screw
717
708000891
Position Washer
