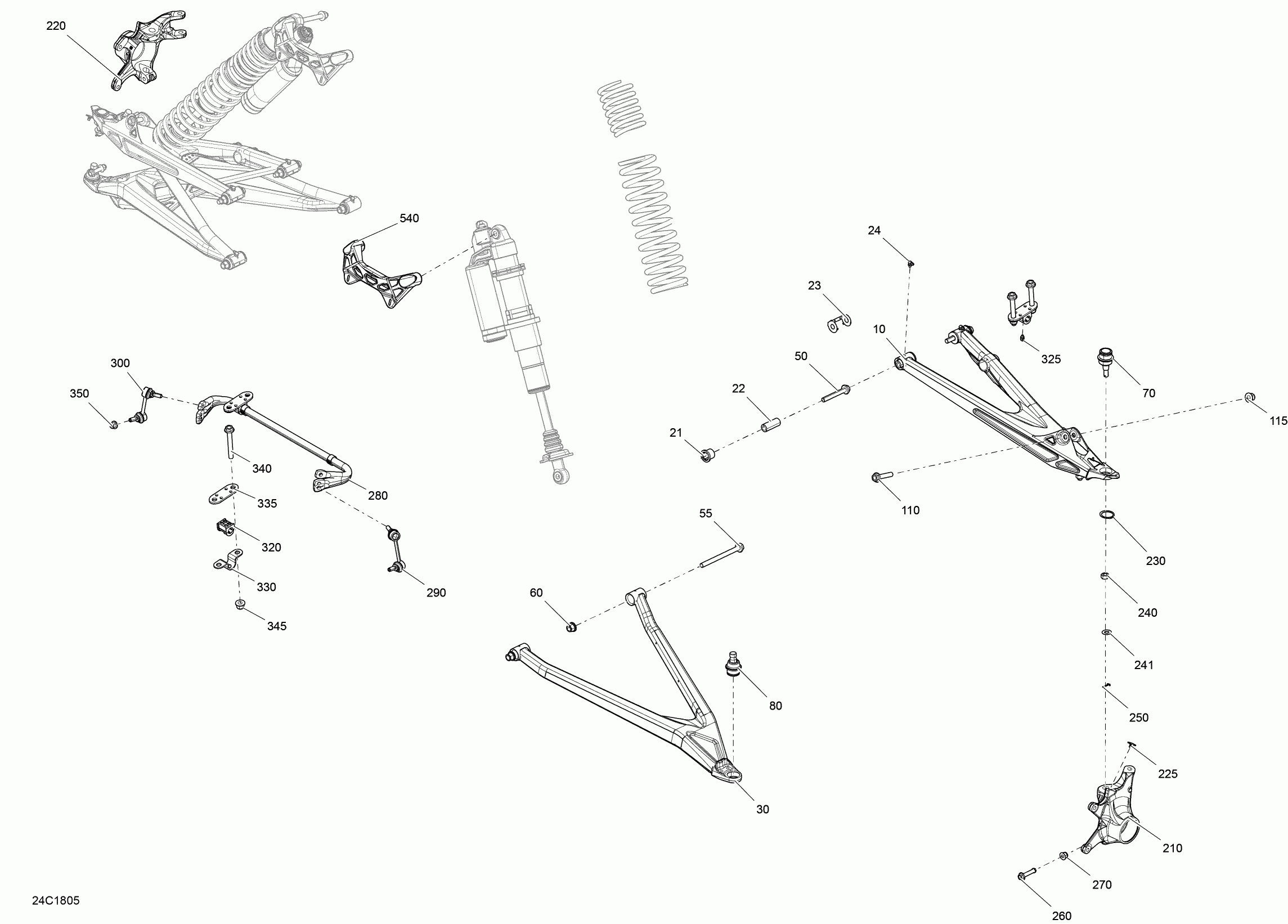

07- front suspension maverick x3 - all package

Cam-am Maverick X3 900HO
Cam-am
#oem кодцена
10
706203074
Red Upper Suspension Arm LH
10
703501053
Black Upper Suspension Arm LH
10
706203075
Red Upper Suspension Arm RH
10
703501056
Black Upper Suspension Arm RH
21
706201659
Подушка
22
706202257
Interior Bushing
23
706202300
Wear Plate
24
293550056
Grease Fitting 90?
30
706202706
Black LH Lower Arm
30
706202919
Black LH Lower Arm
30
706202707
Black RH Lower Arm
30
706202920
Black RH Lower Arm
50
250000859
Screw Flange M12 X 85
55
250000861
Screw Flange M12 X 145
60
233221466
Elastic Flange Nut M12
70
706203084
Шаровая опора
80
706202045
Шаровая опора
110
250000857
Screw Flange M12 X 60
115
233221466
Elastic Flange Nut M12
210
706202759
LH Knuckle
220
706202760
RH Knuckle
225
706202502
Wear Plate
230
293370035
СТОПОРНОЕ КОЛЬЦО
240
250100099
Nut M12
241
250200086
Шайба
250
211400017
Шплинт
260
207605044
Hex. Flanged Screw M10 X 50
270
233201436
Flanged Elastic Nut M10
290
706202764
Link Stabilizer Bar LH
300
706202765
Link Stabilizer Bar RH
320
706202849
Втулка
325
293550056
Grease Fitting 90?
330
706202460
Зажим
335
706202551
Plate Support
340
250000876
Hex. Flanged Screw M12 X 95
345
233221466
Elastic Flange Nut M12
350
233201436
Flanged Elastic Nut M10
360
234201474
Conical Spring Washer 10 mm
540
706202708
Black Link
540
706202709
Red Link
