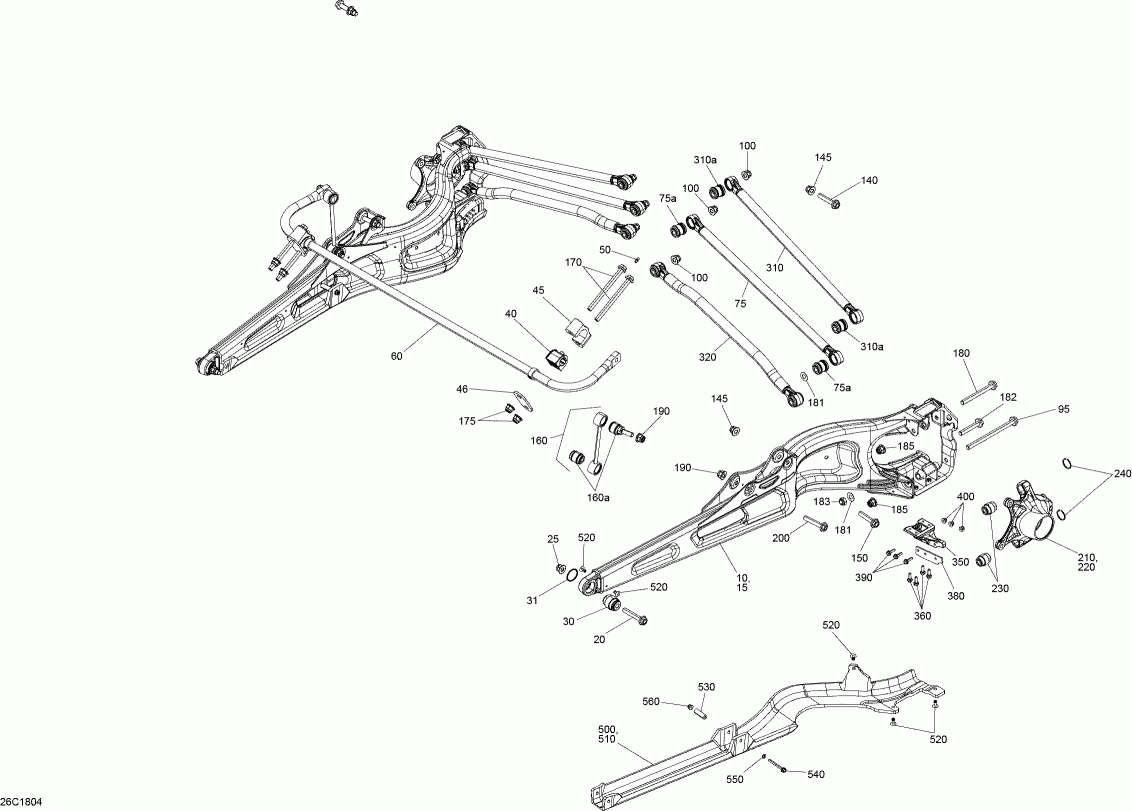

08- rear suspension - package xmr

Cam-am Maverick X3 Turbo - XMR
Cam-am
#oem кодцена
10
706002920
Suspension Arm
10
706002943
Suspension Arm
15
706002921
Suspension Arm
15
706002944
Suspension Arm
20
250000858
Hexagonal Flanged Screw M12 X 70
25
233221466
Elastic Flange Nut M12
30
706001373
Radial Joint
31
293370093
Retaining Ring
40
706002302
Подушка
45
706002303
Зажим
46
706002357
Support Plate
50
408200700
Grease Fitting
75>75a
706002307
Control Link
75>75a
706002099
Control Link
75a
706002135
Radial Joint
95
250000862
Screw Flange M12 X 175
100
233221466
Elastic Flange Nut M12
140
250000857
Screw Flange M12 X 60
140
250000858
Hexagonal Flanged Screw M12 X 70
145
233221466
Elastic Flange Nut M12
160a
706002135
Radial Joint
170
250000892
Screw Flange M12 X 135
175
233221466
Elastic Flange Nut M12
180
250000860
Screw Flange M12 X 115
181
250200086
Шайба
182
250000858
Hexagonal Flanged Screw M12 X 70
183
232521416
Elastic Flanged Stop Nut M12
185
233221466
Elastic Flange Nut M12
190
233221466
Elastic Flange Nut M12
200
250000857
Screw Flange M12 X 60
210
706001960
LH Khuckle
220
706001961
RH Khuckle
230
706002317
Radial Joint
240
293370118
Retaining Ring
310>310a
706002751
Upper Control Link
310>310a
706002136
Upper Control Link
310a
706002135
Radial Joint
320
706002964
Control Link
320
706003140
Control Link
350
706002905
Deflector
360
207662044
Hex. Flanged Screw M6 X 20
380
706002851
Wear Plate
390
207662044
Hex. Flanged Screw M6 X 20
400
233261414
Hex. Flanged Elastic Nut M6
