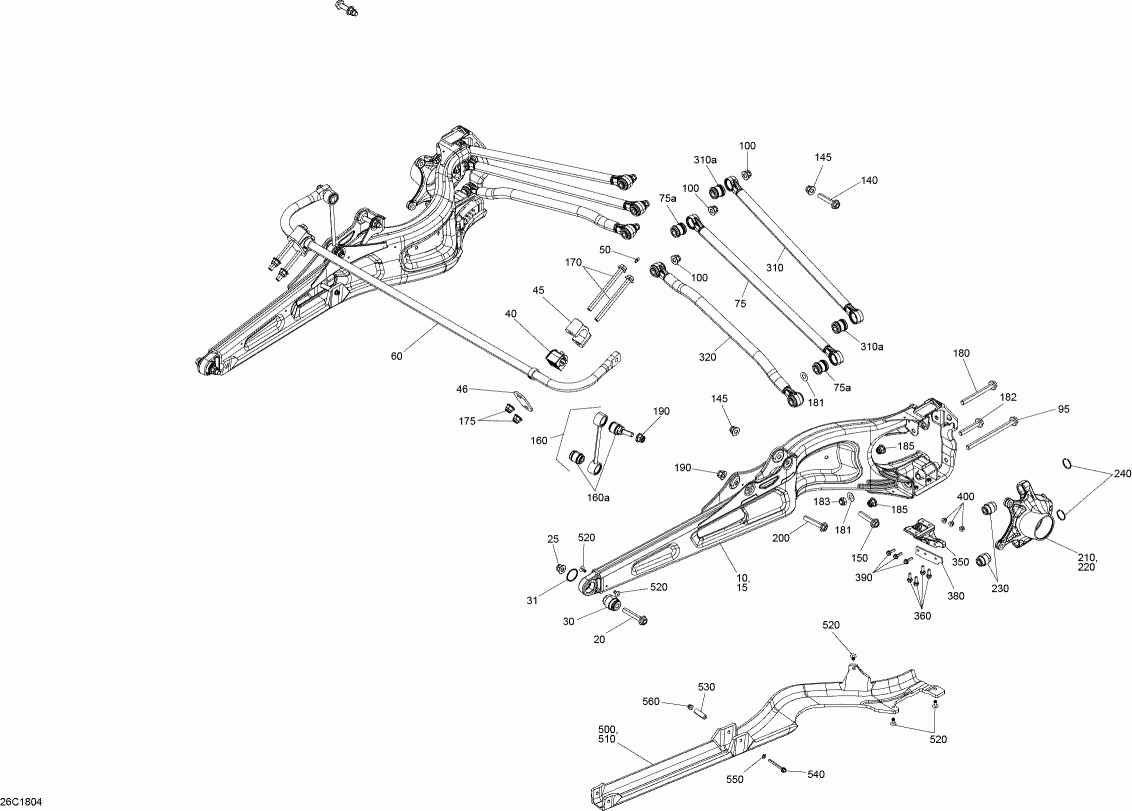

08- rear suspension - package xrc

Cam-am Maverick X3 Turbo R - XRC
Cam-am
#oem кодцена
10
706002955
Blue Suspension Arm LH
10
706003138
Blue Suspension Arm LH
15
706002956
Blue Suspension Arm RH
15
706003139
Blue Suspension Arm RH
20
250000858
Hexagonal Flanged Screw M12 X 70
25
233221466
Elastic Flange Nut M12
30
706001373
Radial Joint
31
293370093
Retaining Ring
40
706002302
Подушка
45
706002303
Зажим
46
706002357
Support Plate
50
408200700
Grease Fitting
75
706002307
Central Control Link
75
706002099
Central Control Link
75a
706002135
Radial Joint
95
250000862
Screw Flange M12 X 175
100
233221466
Elastic Flange Nut M12
140
250000857
Screw Flange M12 X 60
140
250000858
Hexagonal Flanged Screw M12 X 70
145
233221466
Elastic Flange Nut M12
160a
706002135
Radial Joint
170
250000892
Screw Flange M12 X 135
175
233221466
Elastic Flange Nut M12
180
250000860
Screw Flange M12 X 115
181
250200086
Шайба
182
250000858
Hexagonal Flanged Screw M12 X 70
183
232521416
Elastic Flanged Stop Nut M12
185
233221466
Elastic Flange Nut M12
190
233221466
Elastic Flange Nut M12
200
250000857
Screw Flange M12 X 60
210
706001960
LH Khuckle
220
706001961
RH Khuckle
230
706002317
Radial Joint
240
293370118
Retaining Ring
310
706002751
Upper Control Link
310
706002136
Upper Control Link
310a
706002135
Radial Joint
320
706002964
Control Link
320
706003140
Control Link
350
706002905
Deflector
360
207662044
Hex. Flanged Screw M6 X 20
380
706002851
Wear Plate
390
207662044
Hex. Flanged Screw M6 X 20
400
233261414
Hex. Flanged Elastic Nut M6
520
293150108
Pop Rivet 3/16
530
705011168
Проставка
540
250000778
Screw-Hex.Flange M6 X 60
550
234061410
Flat Washer 6 mm
560
233261494
Hex. Elastic Flanged Nut M6
