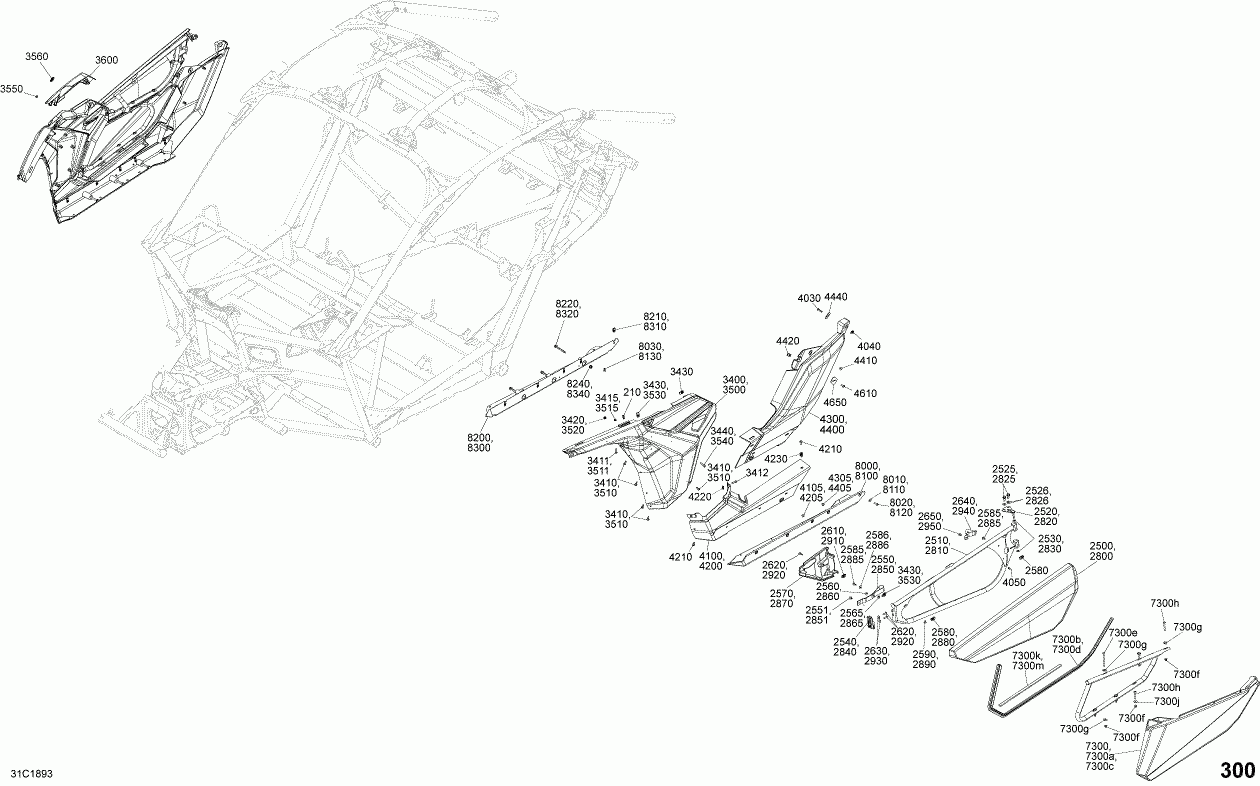

09- body parts - carbon black - package xrc - side section Оригинальные запчасти для мотовездеходов UTV Cam-am Maverick X3 Turbo R

Pop Rivet 3/16

2560

293730070

Belt Stopper

2565

293730072

Belt Stopper

2570

705013535

LH Latch Cover

2580

Extruded Panel Nut M6

2585

250000721

Torx Screw

2586

Flat Washer, Stainless

2590

Black Pop Rivet 3/16

2610

Extruded Panel Nut M6

2620

Torx Screw M6 X 20

2630

Flat Washer, Stainless

2640

293850129

Door Belt

2650

Black Pop Rivet 3/16

2700

705010732

LH Lower Door Panel

2710

250000749

Torx Truss Screw M6 X 50

2720

Flat Washer, Stainless

2730

233261466

Hex. Flanged Elastic Nut M6

2800

705012473

Carbon Black RH Door Panel

2810

705012548

Blue Door Frame

2820

705011187

Door Support

2825

207582054

Washer Head Hexagonal Screw

2826

234081430

Flat Washer M8

2830

234081100

Flat Washer 8 mm, Nylon

2840

705013096

RH Latch

2850

293850135

Ремень

2851

Pop Rivet 3/16

2860

293730070

Belt Stopper

2865

293730072

Belt Stopper

2870

705013536

RH Latch Cover

2880

Extruded Panel Nut M6

2885

250000721

Torx Screw

2886

Flat Washer, Stainless

2890

Black Pop Rivet 3/16

2910

Extruded Panel Nut M6

2920

Torx Screw M6 X 20

2930

Flat Washer, Stainless

2940

293850129

Door Belt

2950

Black Pop Rivet 3/16

3000

705010733

RH Lower Door Panel

3010

250000749

Torx Truss Screw M6 X 50

3020

Flat Washer, Stainless

3030

233261466

Hex. Flanged Elastic Nut M6

3400

715004064

LH Front Lateral Panel Kit

3410

Torx Screw M6 X 20

3411

250000712

Torx Screw M6 X 20

3412

Torx Screw M6 X 25

3415

Hex. Elastic Flanged Nut M6

3420

250100199

Вставка

3430

Extruded Panel Nut M6

3440

250000868

Torx Truss M6 X 50

3500

715004074

RH Front Lateral Panel

3510

Torx Screw M6 X 20

3511

250000712

Torx Screw M6 X 20

3515

Hex. Elastic Flanged Nut M6

3520

250100199

Вставка

3530

Extruded Panel Nut M6

3540

250000868

Torx Truss M6 X 50

3550

Hex. Elastic Flanged Nut M6

3560

517303756

Уплотнитель резиновый

3600

705010334

RH Side Panel Cover

4030

Torx Screw M6 X 25

4040

Extruded Panel Nut M6

4050

250000720

Torx Screw K50 X 16

4100

705012768

LH Central Lateral Panel

4105

Pop Rivet 3/16

4200

705012769

RH Central Lateral Panel

4205

Pop Rivet 3/16

4210

Torx Screw M6 X 20

4220

Extruded Panel Nut M6

4230

705010872

Вставка

4300

705012770

LH Rear Lateral Panel

4305

Pop Rivet 3/16

4400

705012771

RH Rear Lateral Panel

4405

Pop Rivet 3/16

4410

293150104

Pop Rivet 3/16

4420

Extruded Panel Nut M6

4440

705003841

Support Plate

4610

Torx Screw M6 X 20

4650

705003841

Support Plate

7300

715002903

Door Panels

7300a

715002903

Door Panels

7300b

705012018

Door Seal

7300c

715002903

Door Panels

7300d

705012018

Door Seal

7300e

250000902

Torx-Truss M/S M6 X 80

7300f

Hex. Elastic Flanged Nut M6

7300g

705202223

Offset Washer

7300h

250000749

Torx Truss Screw M6 X 50

7300j

Flat Washer, Stainless

7300k

293200003

Neoprene Seal

7300m

293200003

Neoprene Seal

8000

705012772

LH Lateral Panel

8010

250200164

Flat washer M6

8020

Torx Screw M6 X 25

8030

Pop Rivet 3/16

8100

705012773

RH Lateral Panel

8110

250200164

Flat washer M6

8120

Torx Screw M6 X 25

8130

Pop Rivet 3/16

8200

705012774

LH Lateral Structure

8210

Extruded Panel Nut M6

8220

207587534

Hex. Flanged Screw M8 X 75, Scotch Grip

8240

233281464

Elastic Flange Nut M8

8300

705012775

RH Lateral Structure

8310
