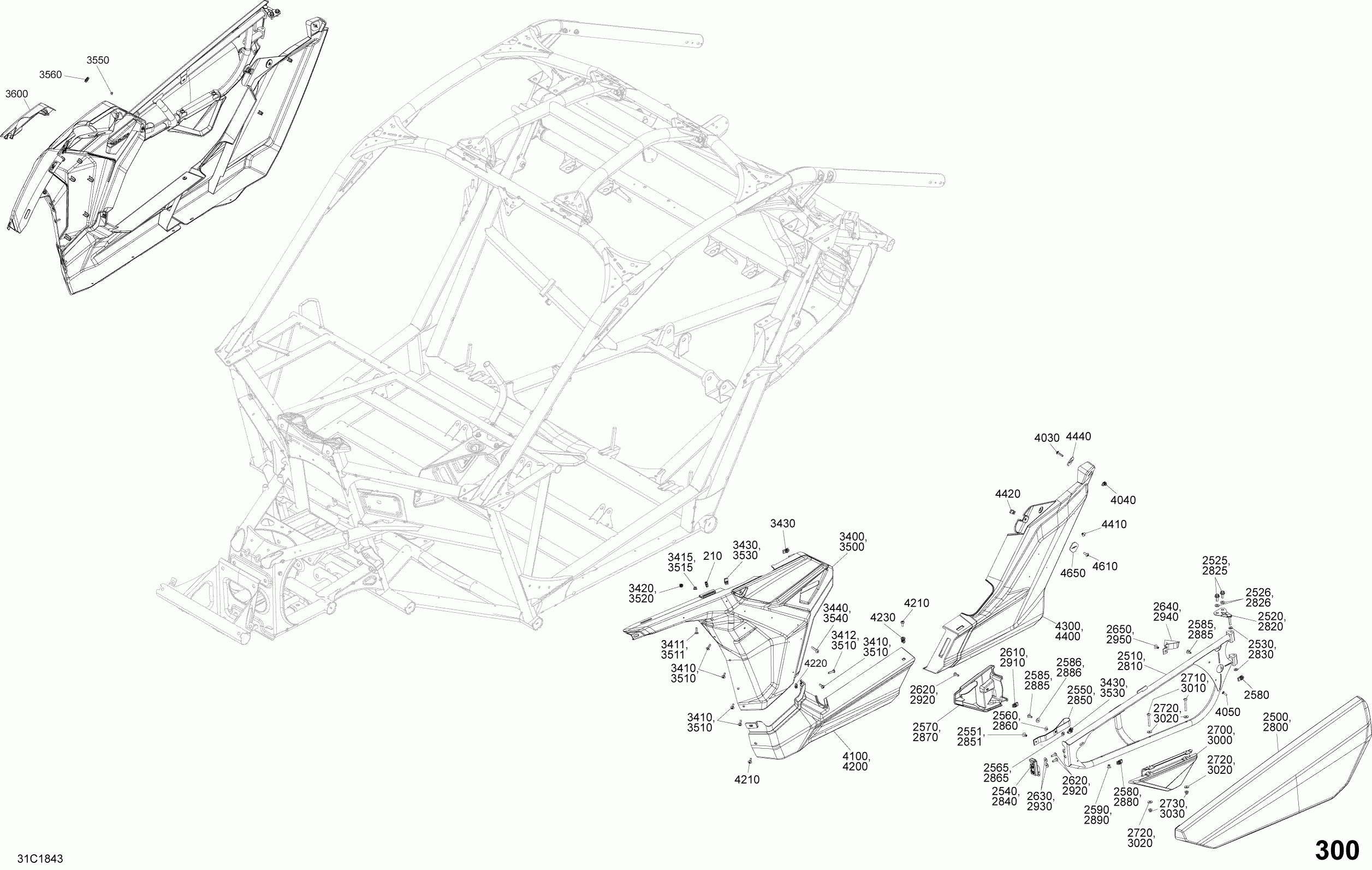

09- body side part maverick x3 timeless black - package xrsdps

Cam-am Maverick X3 Turbo R - XRS DPS - with Smart-Lok
Cam-am
#oem кодцена
210
705010721
Зажим
2500
705011115
Black LH Door Panel
2510
705012562
Red Door Framee
2520
705011187
Door Support
2525
207582054
Washer Head Hexagonal Screw
2526
234081430
Flat Washer M8
2530
234081100
Flat Washer 8 mm, Nylon
2540
705013095
LH Latch
2550
293850135
Ремень
2551
293150108
Pop Rivet 3/16
2560
293730070
Belt Stopper
2565
293730072
Belt Stopper
2570
705013535
LH Latch Cover
2580
250000957
Гайкапружинная M6x1.0
2585
250000721
Torx Screw
2586
234062670
Flat Washer, Stainless
2590
293150103
Black Pop Rivet 3/16
2610
250000957
Гайкапружинная M6x1.0
2620
250000722
Torx Screw M6 X 20
2630
234062670
Flat Washer, Stainless
2640
293850129
Door Belt
2650
293150103
Black Pop Rivet 3/16
2700
705010732
LH Lower Door Panel
2710
250000749
Torx Truss Screw M6 X 50
2720
234062670
Flat Washer, Stainless
2730
233261466
Hex. Flanged Elastic Nut M6
2800
705011116
Black RH Door Panel
2810
705012563
Red Door Frame
2820
705011187
Door Support
2825
207582054
Washer Head Hexagonal Screw
2826
234081430
Flat Washer M8
2830
234081100
Flat Washer 8 mm, Nylon
2840
705013096
RH Latch
2850
293850135
Ремень
2851
293150108
Pop Rivet 3/16
2860
293730070
Belt Stopper
2865
293730072
Belt Stopper
2870
705013536
RH Latch Cover
2880
250000957
Гайкапружинная M6x1.0
2885
250000721
Torx Screw
2886
234062670
Flat Washer, Stainless
2890
293150103
Black Pop Rivet 3/16
2910
250000957
Гайкапружинная M6x1.0
2920
250000722
Torx Screw M6 X 20
2930
234062670
Flat Washer, Stainless
2940
293850129
Door Belt
2950
293150103
Black Pop Rivet 3/16
3000
705010733
RH Lower Door Panel
3010
250000749
Torx Truss Screw M6 X 50
3020
234062670
Flat Washer, Stainless
3030
233261466
Hex. Flanged Elastic Nut M6
3400
715004064
LH Front Lateral Panel Kit
3410
250000722
Torx Screw M6 X 20
3411
250000712
Torx Screw M6 X 20
3412
250000807
Torx Screw M6 X 25
3415
233261494
Hex. Elastic Flanged Nut M6
3420
250100199
Вставка
3430
250000957
Гайкапружинная M6x1.0
3440
250000868
Torx Truss M6 X 50
3500
715004074
RH Front Lateral Panel
3510
250000722
Torx Screw M6 X 20
3511
250000712
Torx Screw M6 X 20
3515
233261494
Hex. Elastic Flanged Nut M6
3520
250100199
Вставка
3530
250000957
Гайкапружинная M6x1.0
3540
250000868
Torx Truss M6 X 50
3550
233261494
Hex. Elastic Flanged Nut M6
3560
517303756
Уплотнитель резиновый
3600
705010334
RH Side Panel Cover
4030
250000807
Torx Screw M6 X 25
4040
250000957
Гайкапружинная M6x1.0
4050
250000720
Torx Screw K50 X 16
4100
705009513
LH Central Lateral Panel
4200
705009514
RH Central Lateral Panel
4210
250000722
Torx Screw M6 X 20
4220
250000957
Гайкапружинная M6x1.0
4230
705010872
Вставка
4300
705010676
LH Rear Lateral Panel
4400
705010677
RH Rear Lateral Panel
4410
293150104
Pop Rivet 3/16
4420
250000957
Гайкапружинная M6x1.0
4440
705003841
Support Plate
4610
250000722
Torx Screw M6 X 20
4650
705003841
Support Plate
