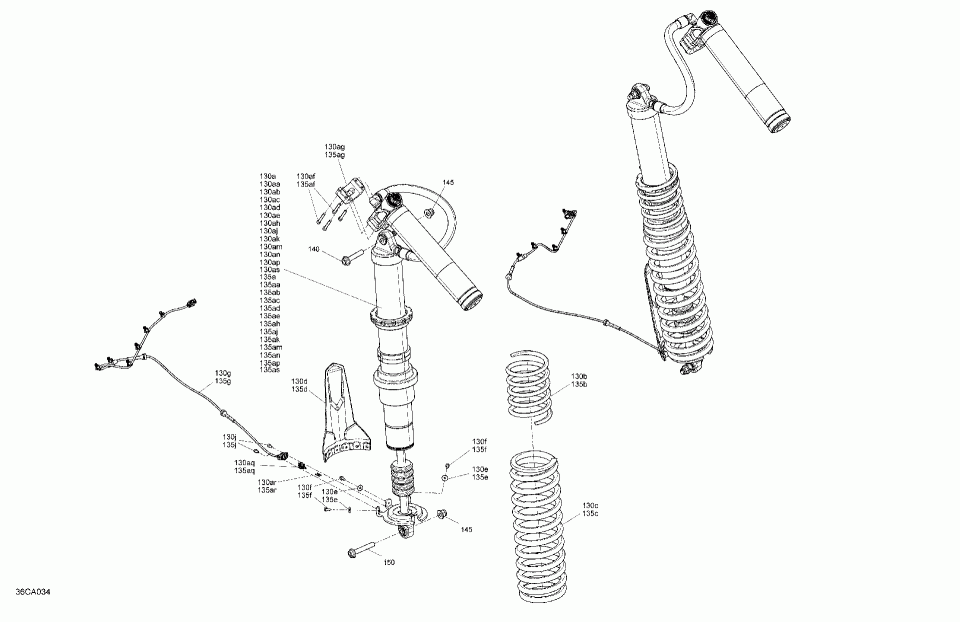

Подвеска-задний амортизатор

Cam-am 001 - Maverick Turbo RR - XRS - CE
Cam-am
#oem кодцена
130a
706002238
Rear Adjustable Shock Absorber. Model Macchiato Satin.
130a
706003896
Rear Shock Absorber. Model Timeless Black.
130aa
715900337
Spherical Bearing.
130ab
715900482
Bearing.
130ac
715900338
O-Ring Bushing.
130ad
715900480
Circlip.
130ae
715900481
Reducer.
130af
715900521
Screw M6 X 35.
130ag
715900522
R?servoir Clamp.
130ah
715900605
Preload Ring. Model Timeless Black.
130aj
715900606
Preload Ring Backup. Model Timeless Black.
130ak
715900607
Spring Adapter. Model Timeless Black.
130am
715900608
Crossover ring. Model Timeless Black.
130an
715900597
Spring Retainer. Model Timeless Black.
130ap
715900593
Spring Coupler. Model Timeless Black.
130aq
706203583
Connector Support. Model Macchiato Satin.
130b
706002236
Red, Rear Spring. Model Macchiato Satin.
130b
706002564
Black, Rear Spring. Model Timeless Black.
130c
706003793
Deep Black, Compression Spring. Model Macchiato Satin.
130c
706003928
Deep Black, Compression Spring. Model Timeless Black.
130d
706202215
Protector.
130e
250200025
Washer M5.
130f
210251150
Hex. Flanged Screw M5 X 11.
130j
205551060
Socket Head Screw M5 X 10. Model Macchiato Satin.
135a
706002238
Rear Adjustable Shock Absorber. Model Macchiato Satin.
135a
706003896
Rear Shock Absorber. Model Timeless Black.
135aa
715900337
Spherical Bearing.
135ab
715900482
Bearing.
135ac
715900338
O-Ring Bushing.
135ad
715900480
Circlip.
135ae
715900481
Reducer.
135af
715900521
Screw M6 X 35.
135ag
715900522
R?servoir Clamp.
135ah
715900605
Preload Ring. Model Timeless Black.
135aj
715900606
Preload Ring Backup. Model Timeless Black.
135ak
715900607
Spring Adapter. Model Timeless Black.
135am
715900608
Crossover ring. Model Timeless Black.
135an
715900597
Spring Retainer. Model Timeless Black.
135ap
715900593
Spring Coupler. Model Timeless Black.
135aq
706203583
Connector Support. Model Macchiato Satin.
135b
706002236
Red, Rear Spring. Model Macchiato Satin.
135b
706002564
Black, Rear Spring. Model Timeless Black.
135c
706002235
Red, Rear Spring. Model Macchiato Satin.
135c
706003928
Deep Black, Compression Spring. Model Timeless Black.
135d
706202215
Protector.
135e
250200025
Washer M5.
135f
210251150
Hex. Flanged Screw M5 X 11.
135j
205551060
Socket Head Screw M5 X 10. Model Macchiato Satin.
135k
706003090
Rear Spring. Model Macchiato Satin. Not shown.
140
250000857
Screw Flange M12 X 60.
145
233221466
Elastic Flange Nut M12.
150
250000858
Hexagonal Flanged Screw M12 X 70.
