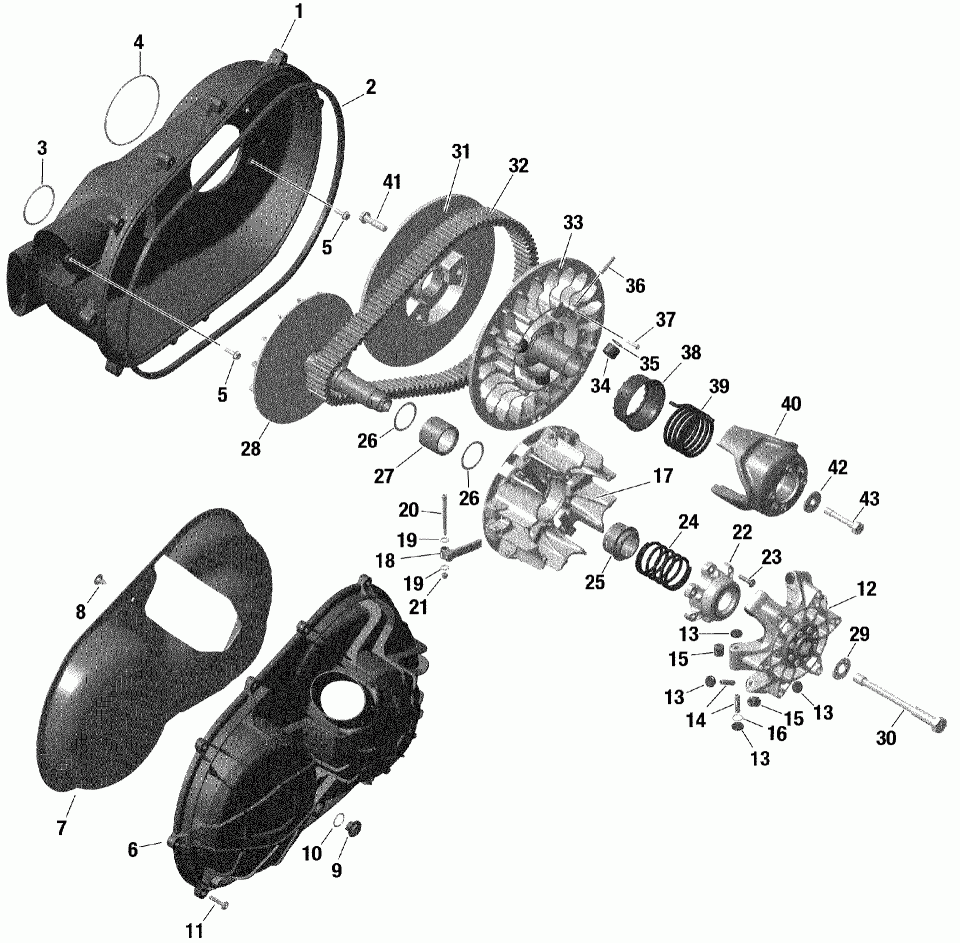

01- rotax - transmission - 701-2-3

Cam-am 002 - Maverick Sport 1000R - DPS - North America
Cam-am
#oem кодцена
1
420212600
CVT Air Guide.
10
420250052
КОЛЬЦО
11
420441575
Torx Screw 6X30.
13
420281296
Slider Shoe Set.
14
417223257
Roller Axle.
15
420229991
Roller Thrust.
16
420230456
КОЛЬЦО
18>21
420248663
Lever Set. Includes 16 to 19.
2
420450400
Gasket.
22
420280616
Bearing Cover.
23
420841549
Flanged Torx Screw M6 X 25.
24
420638119
Compression Spring.
25
420427211
Spring Retainer.
26
420427220
Washer.
27
420832351
Needle Roller Bearing With Sleeves.
29
420245690
Washer.
3
420430408
КОЛЬЦО
30
420841161
Hexagonal Screw M14X 165.
32
417300383
Drive Belt.
34
417127016
Roller.
35
250200009
Lock Washer 8 mm.
36
417127294
Pivot Stud.
37
420841531
Torx Screw M4 X 20.
38
417127116
Swivel Abutment.
39
417127039
Black Spring.
4
420450431
КОЛЬЦО
40
420280755
Cam.
41
420841711
Torx Flange Screw M10 X 40.
42
420427240
Collar Washer.
43
420441990
Hexagonal Screw M10X 61.
5
420441311
Hex.Screw M6 X 20.
6
420212509
Variator Cover.
7
420897388
Insulating Mat.
8
420651816
Trim Button.
9
420441820
Cap.
