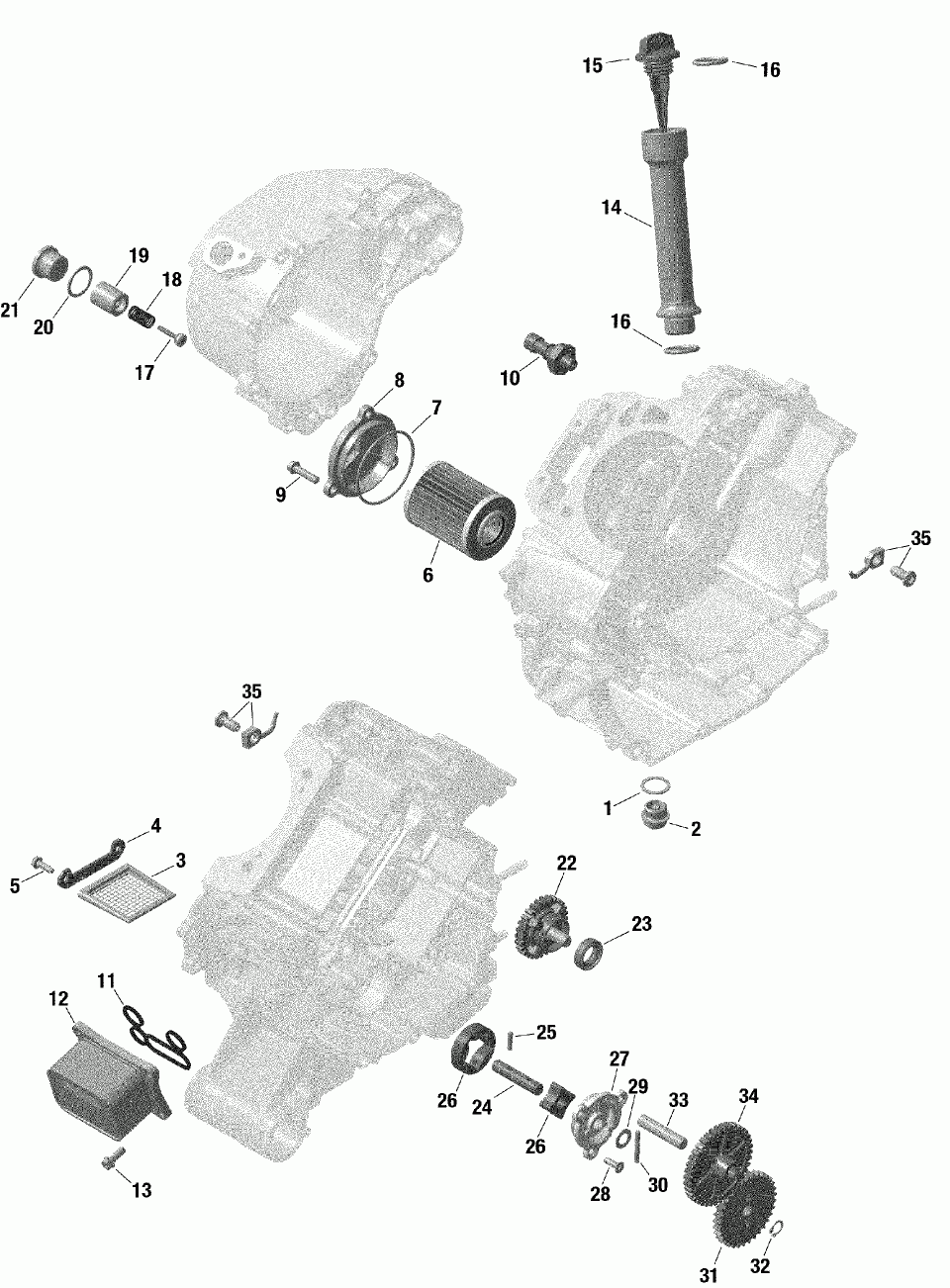

Смазка двигателя

Cam-am 002 - Maverick Sport MAX 1000R - DPS - T Regulation
Cam-am
#oem кодцена
1
420552280
КОЛЬЦО
10
420256915
Oil Pressure Switch.
11
420430325
Oil Seal.
12
420890181
Radiator.
13
420440164
Flanged Torx Screw M6 X 16.
14
420856925
Oil Lever Tube.
15
420856810
Oil Dipstick.
16
420631641
КОЛЬЦО
17
420656370
Pressure Relief Valve.
18
420939485
Compression Spring.
19
420256487
Housing.
2
420840277
Drain Plug M18 X 1.5.
20
420650465
Gasket Ring.
21
420640271
Plug Screw.
23
420430555
Oil Seal.
24
420237059
Oil Pump Shaft.
25
420232731
Needle Pin.
26
420256348
Oil Pump Rotor.
27
420210641
Oil Pump Cover.
28
420640823
Torx Head Screw M5 X 16.
29
420827590
Thrust Washer.
3
420256322
Oil Sieve.
30
420232431
Needle Pin.
31
420434320
Oil Pump Gear, 33 Teeth.
32
504152282
Circlip.
33
420229302
Location Pin.
34
420434300
Idle Gear, 38 Teeth.
35
420656048
Oil Nozzle.
4
420612070
Cover Sieve.
5
420941925
Tapping Screw M5 X 16.
6
420256188
Oil Filter.
7
420230920
КОЛЬЦО
8
420612132
Oil Filter Cover.
9
420440234
Flanged Torx Screw M6 X 25.
