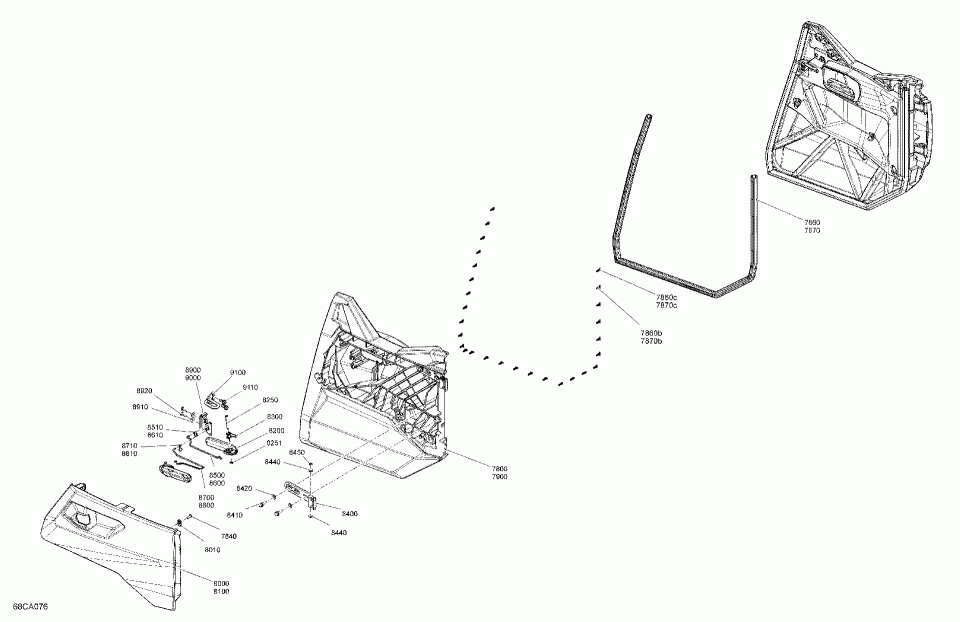

07- body - doors

Cam-am 002 - Maverick Sport MAX 1000R - DPS - T Regulation
Cam-am
#oem кодцена
7800
705013063
LH Rear Door Panel.
7840
250000722
Torx Screw M6 X 20.
7860b
293730081
Natural Color, Dart.
7860c
293730082
Red, Dart.
7870b
293730081
Natural Color, Dart.
7870c
293730082
Red, Dart.
7900
705013064
RH Rear Door Panel.
8000
705015468
Timeless Black, LH Rear Door Panel.
8010
250000957
Extruded Panel Nut M6.
8100
705015469
Timeless Black, RH Rear Door Panel.
8200
705012986
Opening Handle.
8250
705207440
Handle Axle.
8251
705601875
External Retaining Ring.
8300
705013062
Handle Spring.
8400
705013228
Hinge.
8410
250001016
Hex Flanged Screw M8 X 25 S.Grip.
8420
503192494
Washer.
8440
234081100
Flat Washer 8 mm, Nylon.
8450
705601030
Circlip.
8500
705207152
LH Rear Door Upper Locking Rod.
8510
708300202
RH Tie Rod Clip.
8600
705207153
RH Rear Door Upper Locking Rod.
8610
708300202
RH Tie Rod Clip.
8700
705207154
LH Rear Door Lower Locking Rod.
8710
708300202
RH Tie Rod Clip.
8800
705207155
RH Rear Door Lower Locking Rod.
8810
708300202
RH Tie Rod Clip.
8900
705013758
LH Latch.
8910
234062670
Flat Washer, Stainless.
8920
250000807
Torx Truss Screw M6 X 25.
9000
705013759
RH Latch.
9100
705207246
Stricker Support.
9110
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip.
