01- rotax - transmission

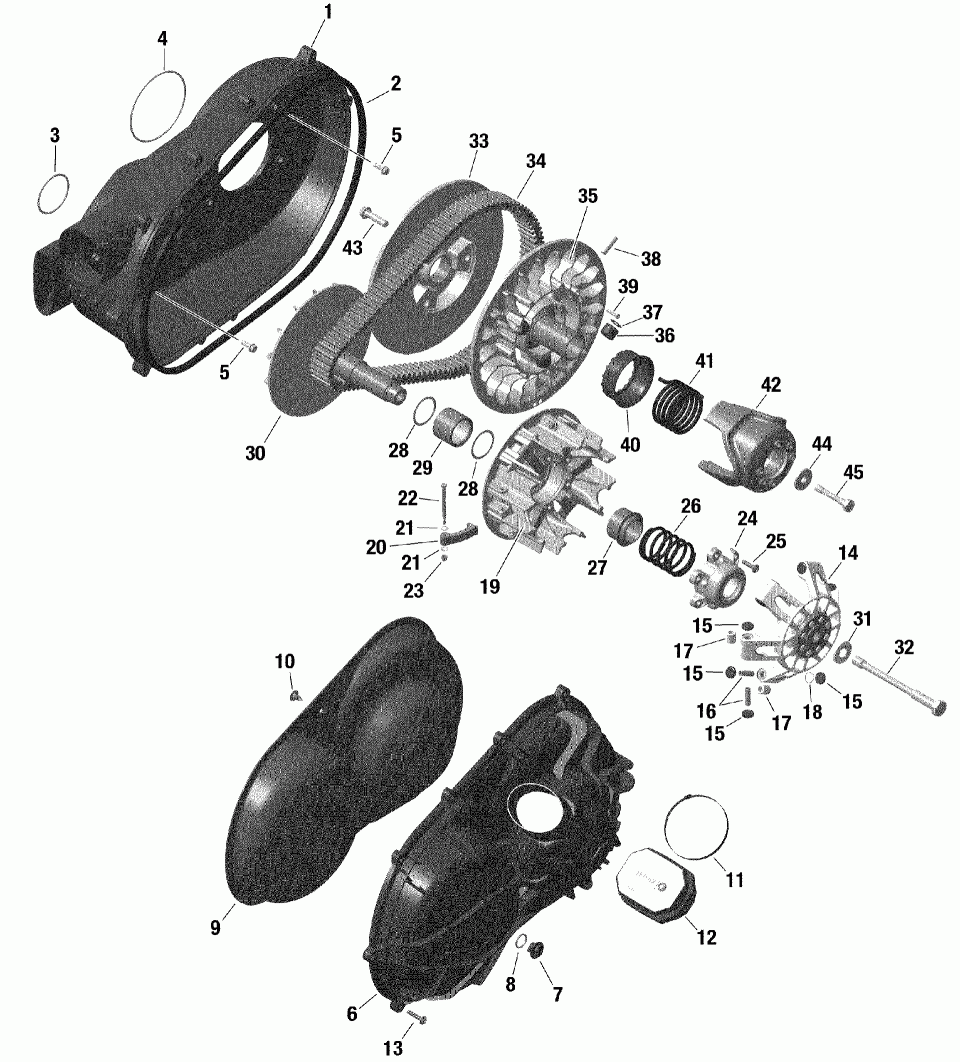

Cam-am 003 - Defender HD10 - DPS_XT - International
Cam-am
#oem кодцена
1
420212600
CVT Air Guide.
11
420251485
Ear Clamp 87.3-90.5MM.
12
420201940
Closure Cap.
13
420441575
Torx Screw 6X30.
15
420281296
Slider Shoe Set.
16
417223257
Roller Axle.
17
417223767
Roller.
18
420230456
КОЛЬЦО
2
420450400
Gasket.
20
420248688
Lever Set. Includes 20 to 23.
25
420841549
Flanged Torx Screw M6 X 25.
26
420638119
Compression Spring.
27
420427210
Spring Seat.
28
420427220
Washer.
29
420832351
Needle Roller Bearing With Sleeves.
3
420430408
КОЛЬЦО
31
420245690
Washer.
32
420841161
Hexagonal Screw M14X 165.
34
422280652
Drive Belt.
36
417127016
Roller.
37
420227946
Thrust Washer.
38
420841531
Torx Screw M4 X 20.
39
420629192
Bolt.
4
420450431
КОЛЬЦО
40
420427805
Spring Support.
41
420638124
Compression Spring.
42
420280758
Cam.
43
420841711
Torx Flange Screw M10 X 40.
44
420427243
Collar Washer.
45
420441990
Hexagonal Screw M10X 61.
5
420441311
Hex.Screw M6 X 20.
6
420212503
Variator Cover.
7
420441820
Cap. Includes 7 to 8.
8
420250052
КОЛЬЦО
