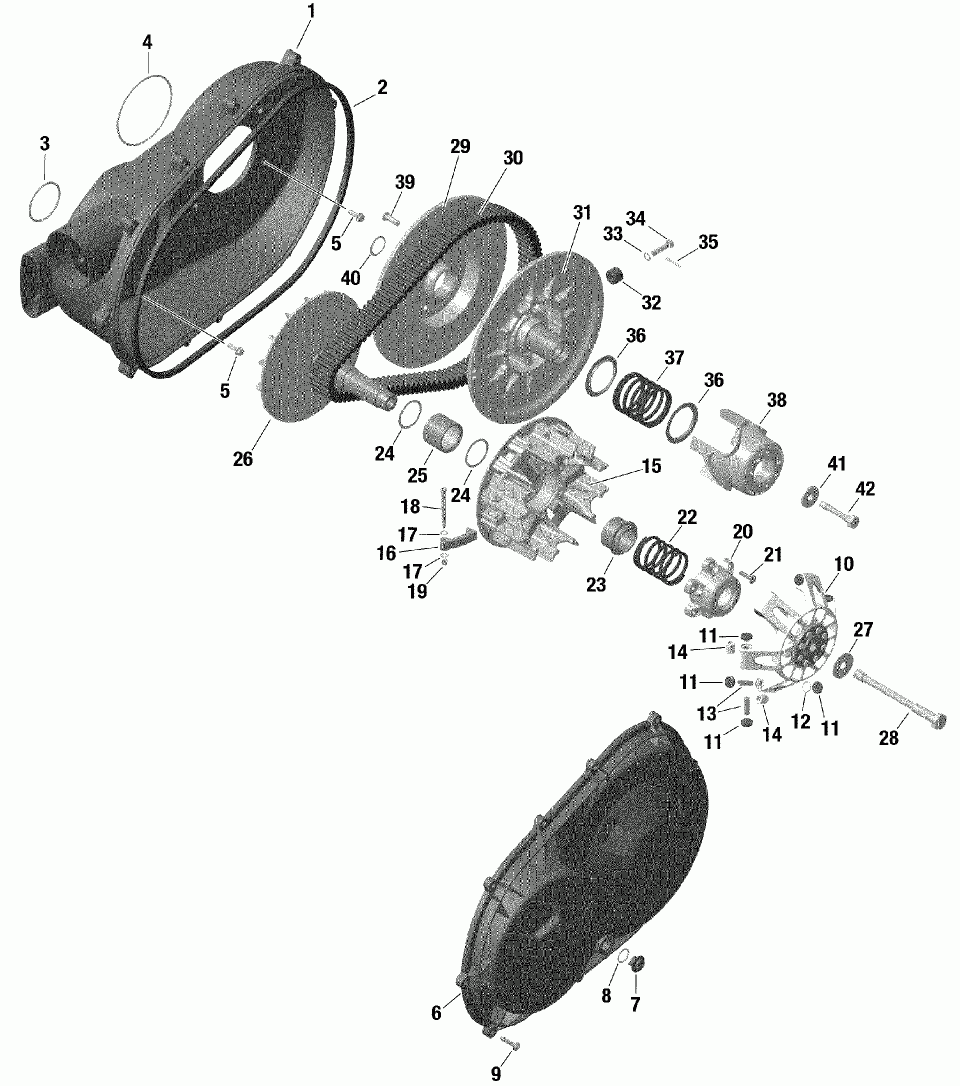

01- rotax - transmission defender

Cam-am 003 - Defender HD8 - CAB - North America
Cam-am
#oem кодцена
1
420212600
CVT Air Guide.
11
420281296
Slider Shoe Set.
12
420230456
КОЛЬЦО
13
417223257
Roller Axle.
14
417223767
Roller.
16
420248683
Centrifugal Lever Kit.
2
420450400
Gasket.
21
420841549
Flanged Torx Screw M6 X 25.
22
420638119
Compression Spring.
23
420427210
Spring Seat.
24
420427220
Washer.
25
420832351
Needle Roller Bearing With Sleeves.
27
420245690
Washer.
28
420841161
Hexagonal Screw M14X 165.
3
420430408
КОЛЬЦО
30
417300383
Drive Belt.
32
417127016
Roller.
33
250200009
Lock Washer 8 mm.
34
417127294
Pivot Stud.
35
420629200
Dowel Pin.
36
417127116
Swivel Abutment.
37
417127039
Black Spring.
38
420280647
Cam.
39
420441981
Binding Head Screw M8X25.
4
420450431
КОЛЬЦО
40
420647263
Distance Ring.
41
420427243
Collar Washer.
42
420441990
Hexagonal Screw M10X 61.
5
420441311
Hex.Screw M6 X 20.
6
420212500
Variator Cover.
7
420441820
Cap. Includes 7 to 8.
8
420250052
КОЛЬЦО
9
420441575
Torx Screw 6X30.
