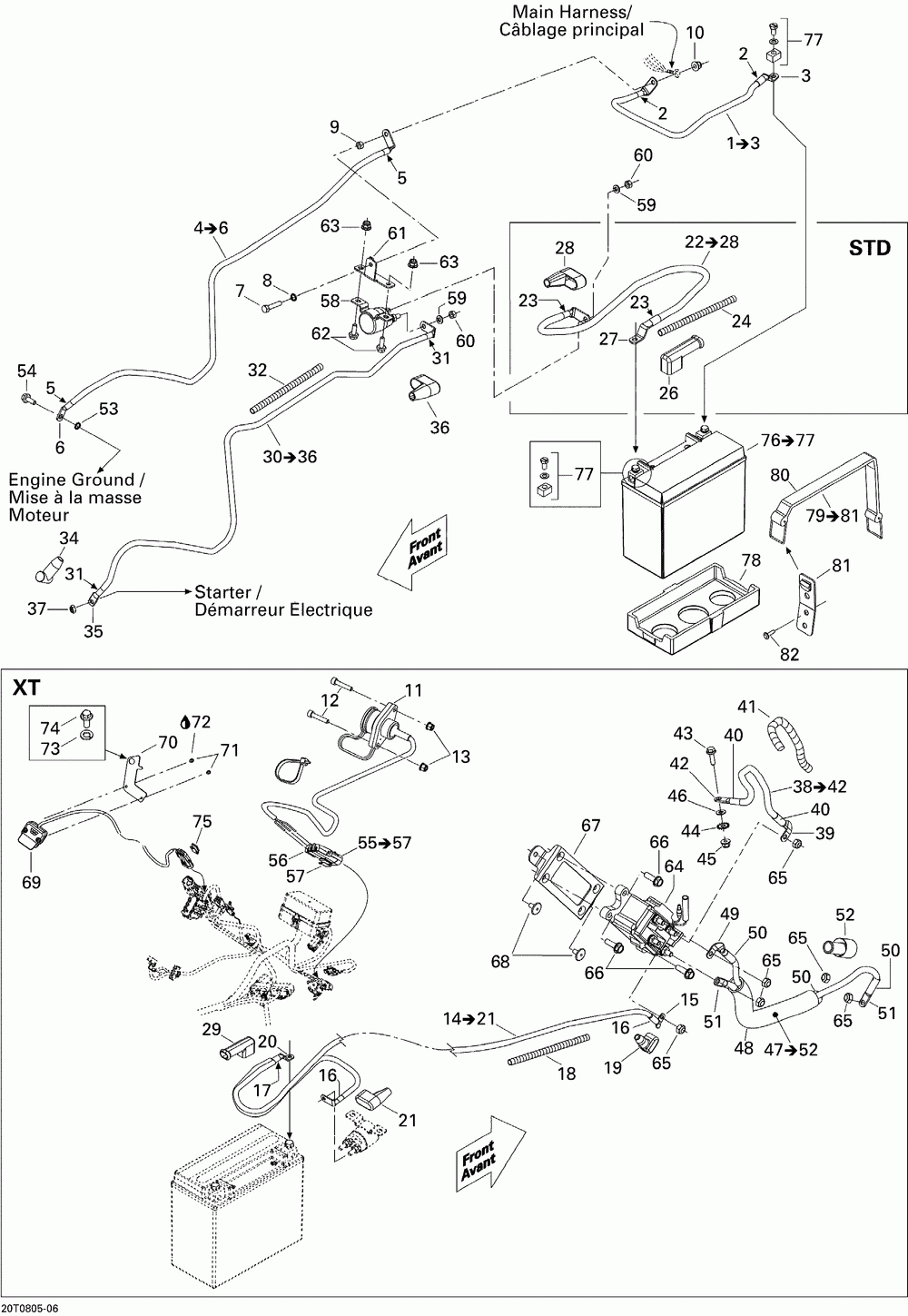

Электрическая система XT

Can-Am (Bombardier) Outlander 400 EFI XT
Can-Am (Bombardier)
#oem кодцена
1
710000830
Cable Masse *cable-ground (includes 1 To 3 )
3
710000518
Cosse A Anneau *open Baril
6
710000540
Cosse A Anneau *open Baril
7
207162544
Винт
8
234461608
Washer-lock Serrated Din.6798a-a2
9
232061414
Гайка
10
233061414
Гайка Din.6927
11
710001023
Connec. Treuil *winch Connec. (xt )
12
205052588
Screw-socket Hd.din.912 (xt )
13
233251414
Nut-flange Elastic Din.6926 (xt )
14
710000832
Cable Positif *cable-positive (xt, Includes 14 To 21 )
15
710000476
Cosse A Anneau *open Baril (xt )
18
710000497
Gaine *protector Tube (xt )
19
710001828
Capuchon *cap (xt )
20
710000519
Cosse A Anneau *open Baril (xt )
21
710000902
Capuchon *cap (xt )
29
710000516
Capuchon *cap (xt )
30
710000333
Module Electro.*module-electro (includes 30 To 36 )
32
710000497
Защитная оплетка шланга
34
710000526
Крышка
35
710000530
Terminal *terminal
36
710000902
Крышка
37
232561414
Гайка с тефлоном
38
710000455
Cable Negatif *negative Cable (xt, Includes 38 To 42 )
39
710000476
Cosse A Anneau *open Baril (xt )
41
710000497
Gaine *protector Tube (xt )
42
710000530
Terminal *terminal (xt )
43
207662044
Screw-hex.flange Din.6921 (xt )
44
250200041
Washer-lock Serrated Int.ext.m6 (xt )
45
233261414
Nut-flange Elastic Din.6926 (xt )
46
224061121
Washer-flat (xt )
47
710001251
Cables Treuil *winch Cables (xt, Includes 47 To 52 )
49
710000476
Cosse A Anneau *open Baril (xt )
51
710000530
Terminal *terminal (xt )
52
515175919
Capuchon Prot. *protector Cap (xt )
53
234461608
Washer-lock Serrated Din.6798a-a2
54
207561644
Винт
55
710001059
Connec Ass E *connector Ass (xt, Includes 55 To 57 )
56
278000281
Bloc 3 Circ.fem*housing-tab (xt )
58
710001364
Solenoide Dem. *relay-starter
59
234161601
Шайба Din.127b-a2
60
232061600
Гайка
61
710001260
Supp. Solenoide*solenoid-supp.
62
207661244
Винт
63
233061414
Гайка Din.6927
64
710001000
Solenoide *solenoid (xt )
65
232561414
Nut-stop Elastic Din.985 (xt )
66
210262080
Screw-forming Hex.hd.fl.gm6174m (xt )
67
710001261
Sup. Solenoid *relay Bracket (xt )
68
390406500
Rivet-pop 3/16 *rivet-pop 3/16 (xt )
69
710001001
Interrupteur *switch (xt )
70
710000755
Support Noir *black Support (xt )
71
250000153
Slotted Head Hex Cap Screw 6-32 X 1/4 (xt )
73
234101601
Washer-lock Helical Din.127b-a2 (xt )
74
250000029
Screw-hex.cap Din.961 M10 X 16 (xt )
75
409014200
Clip *clip (xt )
76
410301203
Batterie Ytx20lbs*battery18amps(wet) (includes 76 To 77 )
77
295500849
Ens. Boulon Ba*fastener Battery Kit
78
710000279
Tampon Batterie*insulator Pad
79
710001033
Sangle Ass E *ass Y Starp (includes 79 To 81 )
80
293850077
Sangle Retenue *strap-rubber
81
293850030
Зажим для ремня
82
390402400
Заклепка 3/16
