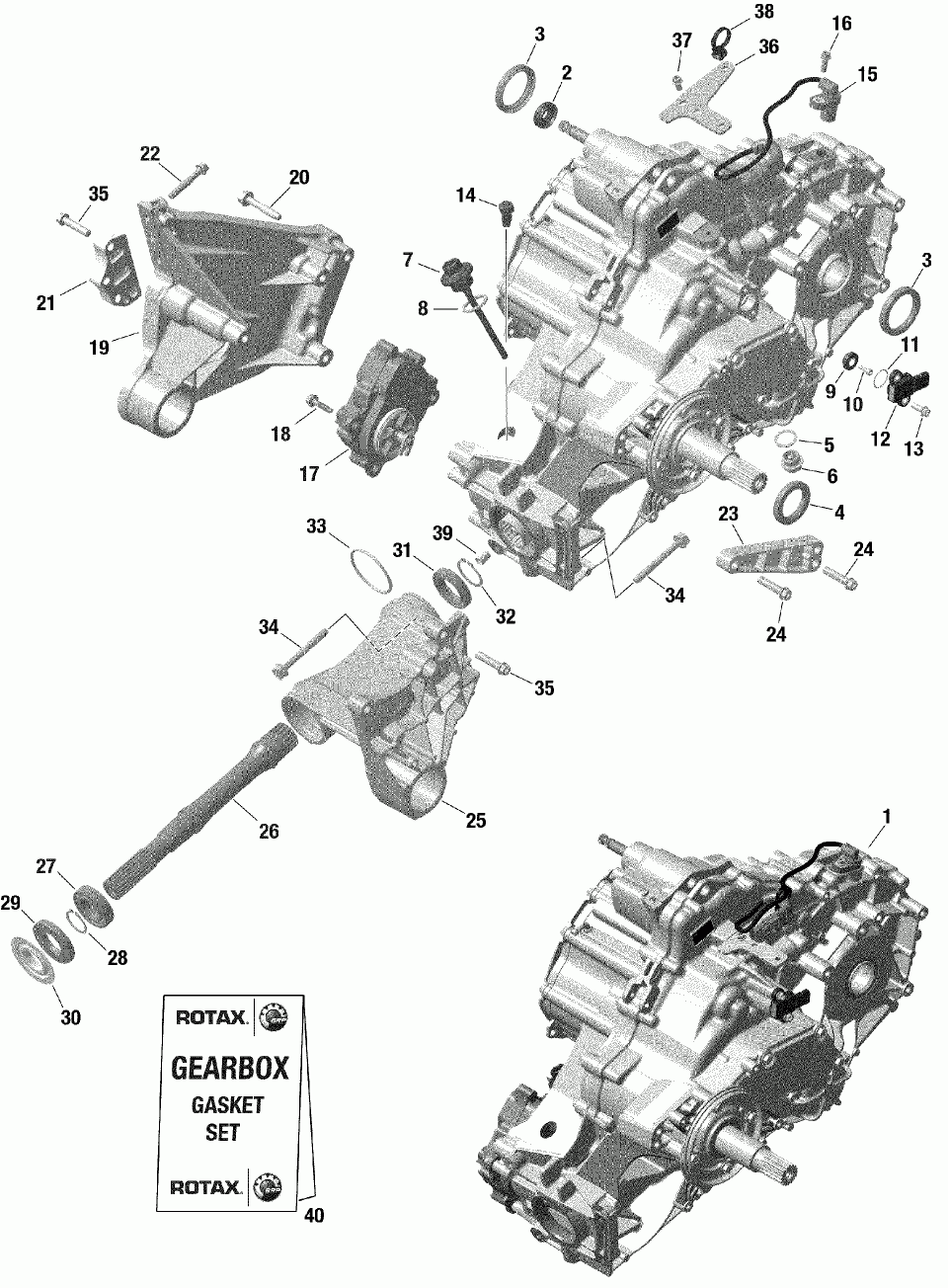

01- rotax - gear box and components - 509

Cam-am 005 - Maverick Turbo RR - XMR - International
Cam-am
#oem кодцена
1
420686509
Gear Box.
10
420440292
Allen Screw M4 X12.
11
420230405
КОЛЬЦО
12
420265122
Angle Of Rotation Sensor.
13
420440162
Flanged Torx Screw M6 X 16.
14
420241905
Plug Screw M10X10.
15
420265722
Speed Sensor.
16
420440162
Flanged Torx Screw M6 X 16.
17a
293300117
КОЛЬЦО
17b
415129175
Shifting Fork.
17c
293370042
Circlip.
18
420441951
Collar Screw M6 x 25.
19
420212638
Engine Bracket Rear Mag Side.
2
420250452
Oil Seal.
20
420441931
Collar Screw M8 x 45.
21
420212639
Engine Bracket Front Mag Side.
22
420641208
Hex. Flanged Screw M8 X 45.
23
420212641
Gear Box Bracket.
24
420440861
Flanged Torx Screw M8 X 35.
25
420212631
Engine Bracket PTO Side.
26
420637600
Drive Shaft.
27
420232341
Ball Bearing.
28
420945810
Circlip.
29
420831178
Oil Seal.
3
420230137
Oil Seal.
30
420626990
Cover.
31
420632275
Ball Bearing.
32
420945610
Retaining Ring.
33
420450391
КОЛЬЦО
34
420440403
Flanged Torx Screw M8 X 65.
35
420440861
Flanged Torx Screw M8 X 35.
36
420651042
Support Plate.
37
420440162
Flanged Torx Screw M6 X 16.
38
420951346
Tie Rap 212MM.
39
420929670
Dowel Pin 10 X 13.
4
420950089
Oil Seal.
40
420686602
Gasket Set.
5
420552280
КОЛЬЦО
6
420840277
Drain Plug M18 X 1.5.
7
420256806
Oil Dipstick.
8
420631640
КОЛЬЦО
9
420256000
Magnet.
