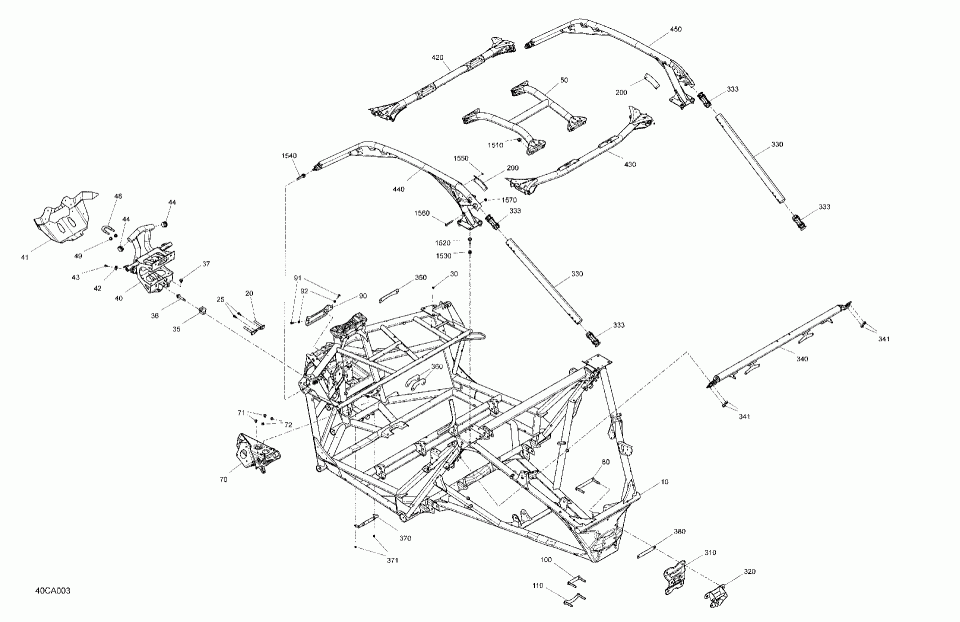

06- frame - system

Cam-am 005 - Maverick Turbo RR - XMR - International
Cam-am
#oem кодцена
10
715006651
Manta Green, Frame.
100
705206853
Front Plate.
110
705206854
Rear Plate.
1510
233221466
Elastic Flange Nut M12.
1520
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
1530
233121466
Hex Flange Nut m12.
1540
250000987
Screw-Hex.Flange DIN.6921 M12X1.75.
1550
293150102
Rivet 3/16
1560
250000901
Torx Truss M8 X 65.
1570
250100025
Elastic Flanged Nut M8.
20
705207424
Front Plate.
200
705208286
Connecting Plate.
25
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
30
250100199
Insert Half Hex Body M6 x 1.0.
310
705205750
Rear Plate.
320
715006661
Black, Rear Attachement Hook.
330
705208287
Manta Green, Rear Tube.
333
705209210
Sleeve.
340
705208518
Belt Bar.
341
232521416
Elastic Flanged Stop Nut M12.
35
705206992
Bumper Link.
350
705207425
Upper Arm Link.
36
250000987
Screw-Hex.Flange DIN.6921 M12X1.75.
360
705205295
Lower Arm Link.
37
250000060
Flanged Screw M10 X 16, Scotch Grip.
370
706203122
Support.
371
390402200
Pop Rivet 3/16
380
705206069
Front Upper Plate.
41
715006996
Front Master Plate.
42
250000957
Extruded Panel Nut M6.
420
705208583
Manta Green, Front Cross Member.
43
250000722
Torx Screw M6 X 20.
430
705208592
Manta Green, Rear Cross Member.
44
705202455
Cap.
440
715006632
Manta Green, LH Cage.
450
715006639
Manta Green, RH Cage.
48
705206983
U-Clamp.
49
233201436
Flanged Elastic Nut M10.
50
705208288
Manta Green, Reinforcement Cage.
70
705206924
DPS Support.
71
207581244
Hex. Flanged Screw M8 X 12, Scotch Grip.
72
233281416
Hex. Elastic Flanged Nut M8.
80
705206852
Rear Upper Plate.
90
705206877
Stifner Plate.
91
207661654
Hex. Flanged Screw M6 X 16.
92
233261494
Hex. Elastic Flanged Nut M6.
