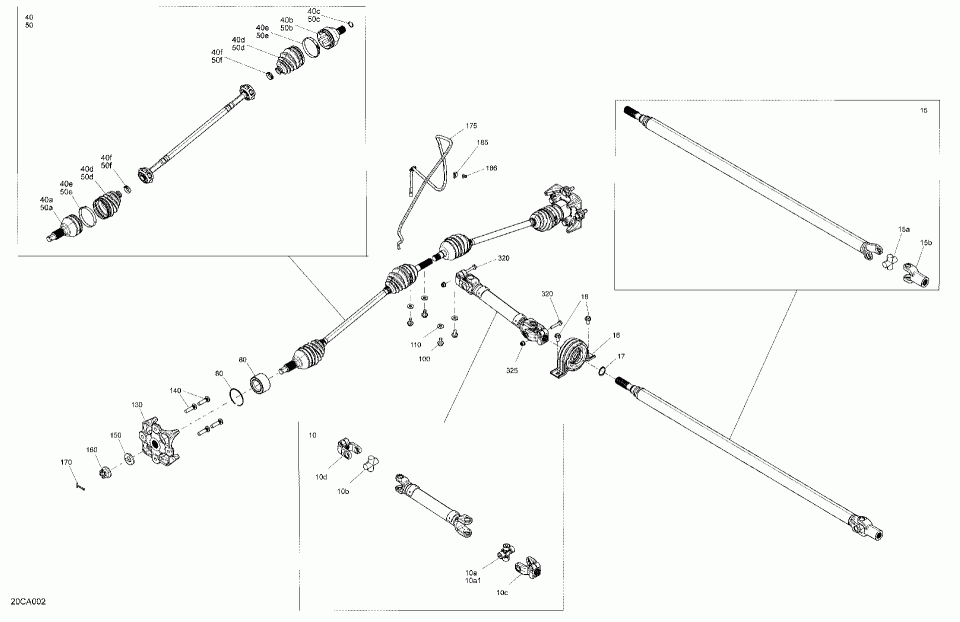

04- drive - front section - common parts

Cam-am 007 - Maverick MAX Turbo R - DS - International
Cam-am
#oem кодцена
100
207502046
Hex. Flanged Screw M10 X 20.
10a1
715900295
Grease Fitting. Not shown.
10b
715900435
U-Joint Cross Kit.
10c
715900524
Fixed Yoke Joint.
10d
715900646
Yoke.
130
705502122
Wheel Hub.
140
250300625
Wheel Stud M12X1.5.
150
250200170
Conical Spring Washer M20.
15a
715900435
U-Joint Cross Kit.
15b
715900401
Yoke.
16
705401938
Bearing.
160
250100193
Castle Nut M20.
17
293370098
Snap Ring.
170
250400084
Cotter Pin.
175
293830193
Polyurethane Hose.
18
207502046
Hex. Flanged Screw M10 X 20.
185
518321570
Open Clamp.
186
293150104
Pop Rivet 3/16
320
250001050
Hex. Flanged Screw M8 X 42.
325
233281416
Hex. Elastic Flanged Nut M8.
40
705402098
RH Half Shaft. Included 40 to 40f.
40a
715900452
CV Joint.
40b
715900454
RH Plunging Joint.
40c
705401349
Circlip Joint.
40d
705401354
Boot Kit, Wheel Side.
40e
715900260
Oetiker Clamp, Large.
40f
715900261
Oetiker Clamp, Small.
50
705402097
LH Half Shaft. Included 50 to 50f.
50a
715900452
CV Joint.
50b
715900453
LH Plunging Joint.
50c
705401349
Circlip Joint.
50d
705401354
Boot Kit, Wheel Side.
50e
715900260
Oetiker Clamp, Large.
50f
715900261
Oetiker Clamp, Small.
60
293350151
Ball Bearing.
80
293370102
Circlip.
