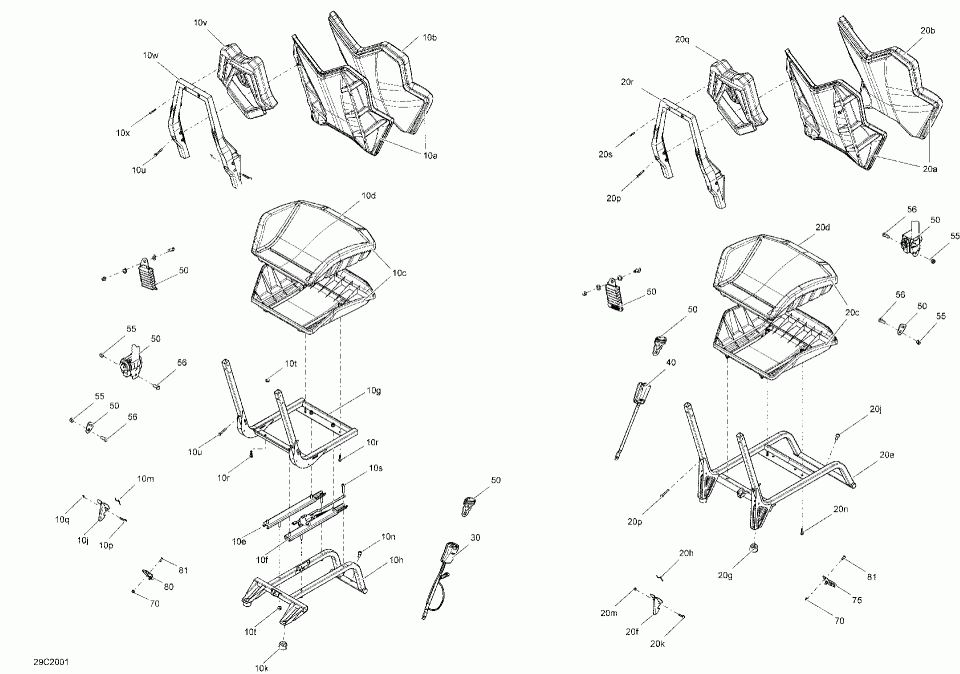

Сидение

Cam-am 001 - Commander 800R EFI - International
Cam-am
#oem кодцена
10b
708000675
Backrest Cover. Package DPS.
10d
708001103
Seat Cover. Package DPS.
10e
708000848
LH Rail. Package DPS.
10f
708001739
RH Rail. Package DPS.
10g
708001356
Operator Seat Frame. Package DPS.
10h
708000667
Seat Member. Package DPS.
10j
708001355
Seat Latch. Package DPS.
10k
708001671
Rubber Bumper. Package DPS.
10m
708000921
Spring. Package DPS.
10n
205501644
Socket Screw M10 X 16. Package DPS.
10p
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip. Package DPS.
10q
232561600
Hex. Elastic Stop Nut M6. Package DPS.
10r
207562544
Hex. Flanged Screw M6 X 25. Package DPS.
10s
205084044
Socket Head Screw M8 X 1.25 X 40. Package DPS.
10t
233281414
Hex. Flanged Elastic Nut M8. Package DPS.
10u
250000672
Hex. Flange Screw M6. Package DPS. Includes 10u to 10x.
10v
708001074
Head Rest. Package DPS.
10w
708001245
Seat Support. Package DPS.
10x
250000897
Hex. Flange Screw K50 X 40. Package DPS.
180s
250100135
Nylon Insert Hex. Lock Nut 7/16-20. Not Shown.
180u
708000890
Safety Belt Screw. Not Shown.
180v
708000891
Position Washer. Not Shown.
180w
233161464
Hex. Elastic Flange Nut M6. Not Shown.
180x
250000672
Hex. Flange Screw M6. Not Shown.
20b
708000675
Backrest Cover.
20d
708001103
Seat Cover.
20e
708001357
Passenger Seat Frame.
20f
708001355
Seat Latch.
20g
708001671
Rubber Bumper.
20h
708000921
Spring.
20j
205501644
Socket Screw M10 X 16.
20k
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip.
20m
232561600
Hex. Elastic Stop Nut M6.
20n
207562544
Hex. Flanged Screw M6 X 25.
20p
250000672
Hex. Flange Screw M6. Includes 20p to 20s.
20q
708001074
Head Rest.
20r
708001245
Seat Support.
20s
250000897
Hex. Flange Screw K50 X 40.
30
708002061
Driver Buckle Side.
40
708002062
Passenger Buckle Side.
50
708002644
Safety Belt.
55
250100135
Nylon Insert Hex. Lock Nut 7/16-20.
70
250100199
Insert Half Hex Body M6 x 1.0.
75
708002303
Retaining Rod RH.
80
708002302
Retaining Rod LH.
81
250000717
Torx Head Screw M6 X 16.
