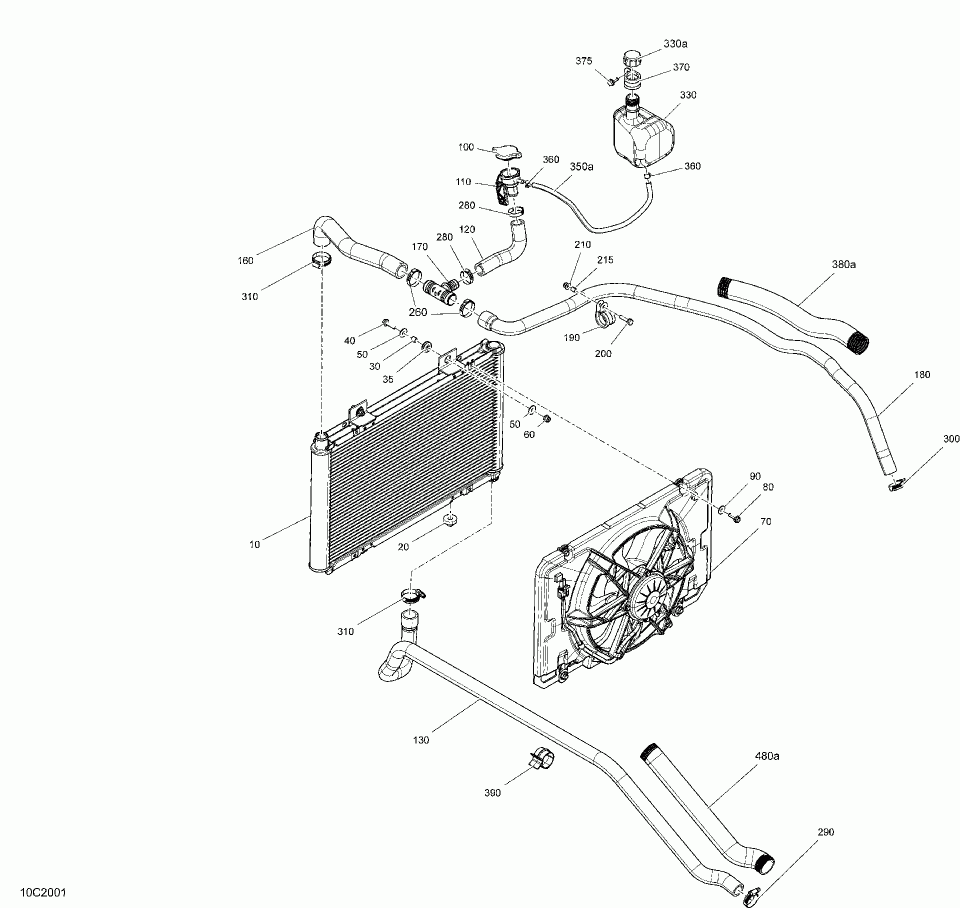

Система охлаждения

Cam-am 001 - Commander 800R EFI - North America
Cam-am
#oem кодцена
10
709200395
Radiator.
100
709200207
Pressure Cap.
110
709200179
Filler Neck.
120
709200264
Filler Neck Hose.
130
709200355
Radiator Inlet Hose.
160
709200265
Radiator Outlet Hose.
170
509000372
T-Fitting.
180
709200295
Intermediate Hose.
190
709200036
Hose Anchor.
20
709200285
Grommet.
200
207662534
Hex. Flanged Screw M6 X 25.
210
233261434
Flanged Elastic Nut M6.
215
707000065
Spacer.
260
509000162
Gear Clamp.
280
293650099
Crimp Clamp.
290
293650098
Norma Gear Clamp.
30
293900105
Bushing.
300
293650098
Norma Gear Clamp.
310
293650098
Norma Gear Clamp.
330a
709200587
Tank Cap.
35
709000582
Grommet.
350a
415110000
Polyurethane Hose 5.2 mm.
360
414554800
Spring Clamp.
370
709200036
Hose Anchor.
375
207661644
Hex. Flanged Screw M6 X 16.
380a
515176260
Tubing 35 mm.
390
275500590
Retainer.
40
207662534
Hex. Flanged Screw M6 X 25.
480a
515176260
Tubing 35 mm.
50
250200082
Flat Washer.
60
233261434
Flanged Elastic Nut M6.
80
207662044
Hex. Flanged Screw M6 X 20.
90
234062410
Flat Washer 6 mm.
