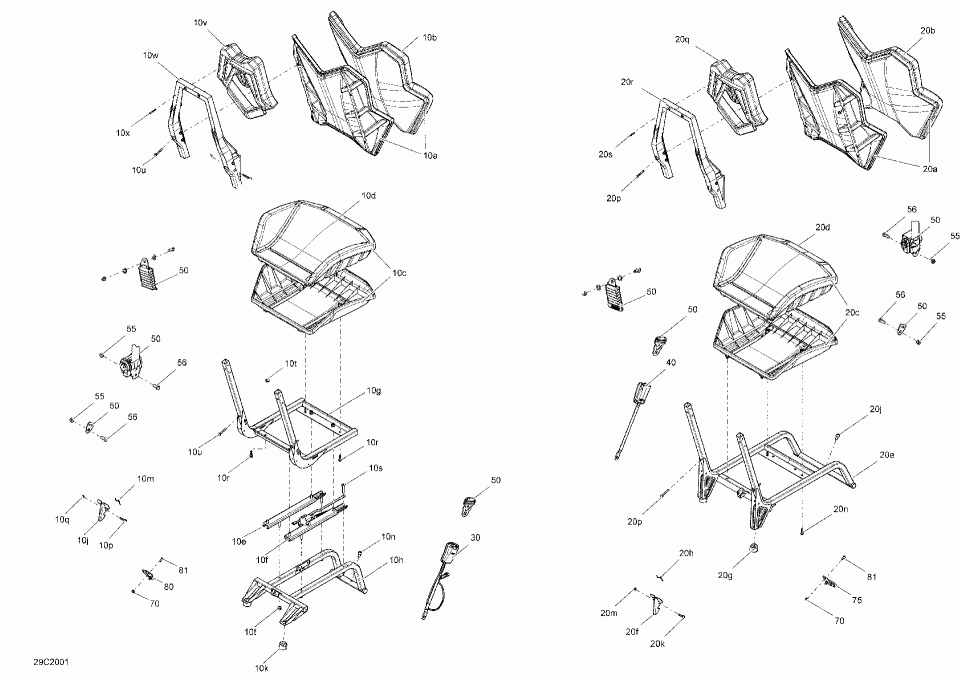

Сидение

Cam-am 001 - Commander 800R EFI - North America

Сидение

#

oem код

название

цена

10a

Backrest. XT Carbon Black. Includes 10a to 10b.

Backrest. XT Carbon Black. Includes 10a to 10b.

10b

Backrest Cover. XT Boreal Green.

Backrest Cover. XT Boreal Green.

10b

Cover. XT Carbon Black.

Cover. XT Carbon Black.

10d

Seat Cover Gulfstream Blue. XT Carbon Black.

Seat Cover Gulfstream Blue. XT Carbon Black.

10d

Seat Cover. XT Boreal Green.

Seat Cover. XT Boreal Green.

10e

LH Rail.

LH Rail.

10f

RH Rail.

RH Rail.

10g

Operator Seat Frame.

Operator Seat Frame.

10h

Seat Member.

Seat Member.

10j

Seat Latch.

Seat Latch.

10k

Rubber Bumper.

Rubber Bumper.

10m

Spring.

Spring.

10n

Socket Screw M10 X 16.

Socket Screw M10 X 16.

10p

Hex. Flanged Screw M6 X 30, Scotch Grip.

Hex. Flanged Screw M6 X 30, Scotch Grip.

10q

Hex. Elastic Stop Nut M6.

Hex. Elastic Stop Nut M6.

10r

Hex. Flanged Screw M6 X 25.

Hex. Flanged Screw M6 X 25.

10s

Socket Head Screw M8 X 1.25 X 40.

Socket Head Screw M8 X 1.25 X 40.

10t

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

10u

Hex. Flange Screw M6. Includes 10u to 10x.

Hex. Flange Screw M6. Includes 10u to 10x.

10v

Head Rest.

Head Rest.

10w

Seat Support.

Seat Support.

10x

Hex. Flange Screw K50 X 40.

Hex. Flange Screw K50 X 40.

180s

Nylon Insert Hex. Lock Nut 7/16-20. Not Shown.

Nylon Insert Hex. Lock Nut 7/16-20. Not Shown.

180u

Safety Belt Screw. Not Shown.

Safety Belt Screw. Not Shown.

180v

Position Washer. Not Shown.

Position Washer. Not Shown.

180w

Hex. Elastic Flange Nut M6. Not Shown.

Hex. Elastic Flange Nut M6. Not Shown.

180x

Hex. Flange Screw M6. Not Shown.

Hex. Flange Screw M6. Not Shown.

20a

Backrest. XT Carbon Black.

Backrest. XT Carbon Black.

20b

Backrest Cover. XT Boreal Green.

Backrest Cover. XT Boreal Green.

20b

Cover. XT Carbon Black.

Cover. XT Carbon Black.

20d

Seat Cover Gulfstream Blue. XT Carbon Black.

Seat Cover Gulfstream Blue. XT Carbon Black.

20d

Seat Cover. XT Boreal Green.

Seat Cover. XT Boreal Green.

20e

Passenger Seat Frame.

Passenger Seat Frame.

20f

Seat Latch.

Seat Latch.

20g

Rubber Bumper.

Rubber Bumper.

20h

Spring.

Spring.

20j

Socket Screw M10 X 16.

Socket Screw M10 X 16.

20k

Hex. Flanged Screw M6 X 30, Scotch Grip.

Hex. Flanged Screw M6 X 30, Scotch Grip.

20m

Hex. Elastic Stop Nut M6.

Hex. Elastic Stop Nut M6.

20n

Hex. Flanged Screw M6 X 25.

Hex. Flanged Screw M6 X 25.

20p

Hex. Flange Screw M6.

Hex. Flange Screw M6.

20q

Head Rest.

Head Rest.

20r

Seat Support.

Seat Support.

20s

Hex. Flange Screw K50 X 40.

Hex. Flange Screw K50 X 40.

30

Driver Buckle Side.

Driver Buckle Side.

40

Passenger Buckle Side.

Passenger Buckle Side.

50

Safety Belt.

Safety Belt.

55

Nylon Insert Hex. Lock Nut 7/16-20.

Nylon Insert Hex. Lock Nut 7/16-20.

70

Insert Half Hex Body M6 x 1.0.

Insert Half Hex Body M6 x 1.0.

75

Retaining Rod RH.

Retaining Rod RH.

80

Retaining Rod LH.

Retaining Rod LH.

81

Torx Head Screw M6 X 16.

Torx Head Screw M6 X 16.
