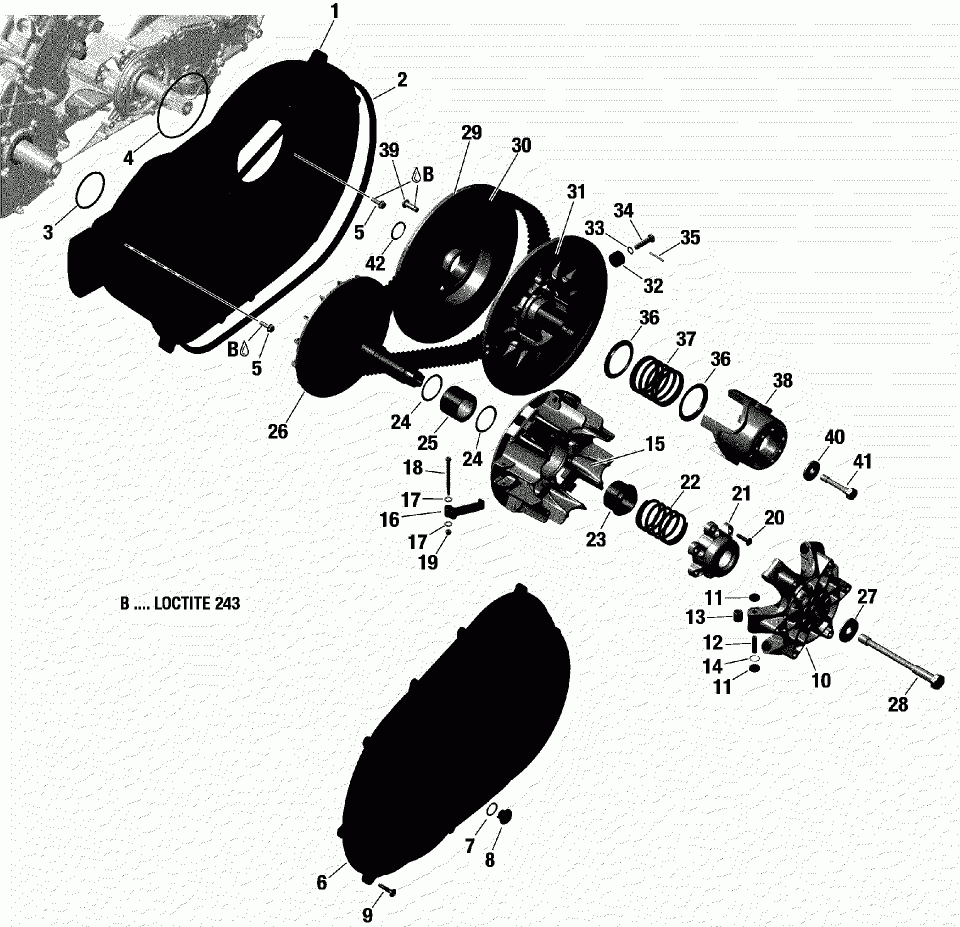

Трансмиссия

Cam-am 001 - Maverick Sport 1000 - BASE - North America
Cam-am
#oem кодцена
1
420212600
CVT Air Guide.
11
420281296
Slider Shoe Set.
12
417223257
Roller Axle.
13
420229991
Roller Thrust.
14
420230456
КОЛЬЦО
16>19
420248648
Lever Set. Except T Category.
16>19
420248661
Lever Set. T Category.
2
420450400
Gasket.
20
420841549
Flanged Torx Screw M6 X 25.
21
420280616
Bearing Cover.
22
420638119
Compression Spring. Except T Category.
22
420638115
Compression Spring. T Category.
23
420427211
Spring Retainer.
24
420427220
Washer.
25
420832351
Needle Roller Bearing With Sleeves.
27
420245690
Washer.
28
420841161
Hexagonal Screw M14X 165.
3
420430408
КОЛЬЦО
30
417300383
Drive Belt.
32
417127016
Roller.
33
250200009
Lock Washer 8 mm.
34
417127294
Pivot Stud.
35
420629200
Dowel Pin.
36
417127116
Swivel Abutment.
37
420638122
Spring.
38
420280647
Cam.
39
420441981
Binding Head Screw M8X25.
4
420450430
КОЛЬЦО
40
420427240
Collar Washer.
41
420441990
Hexagonal Screw M10X 61.
42
420647257
Distance Ring.
5
420441311
Hex.Screw M6 X 20.
6
420212502
Variator Cover.
7
420250050
КОЛЬЦО
8
420441820
Cap.
9
420441573
Flanged Torx Screw M6 X 30.
