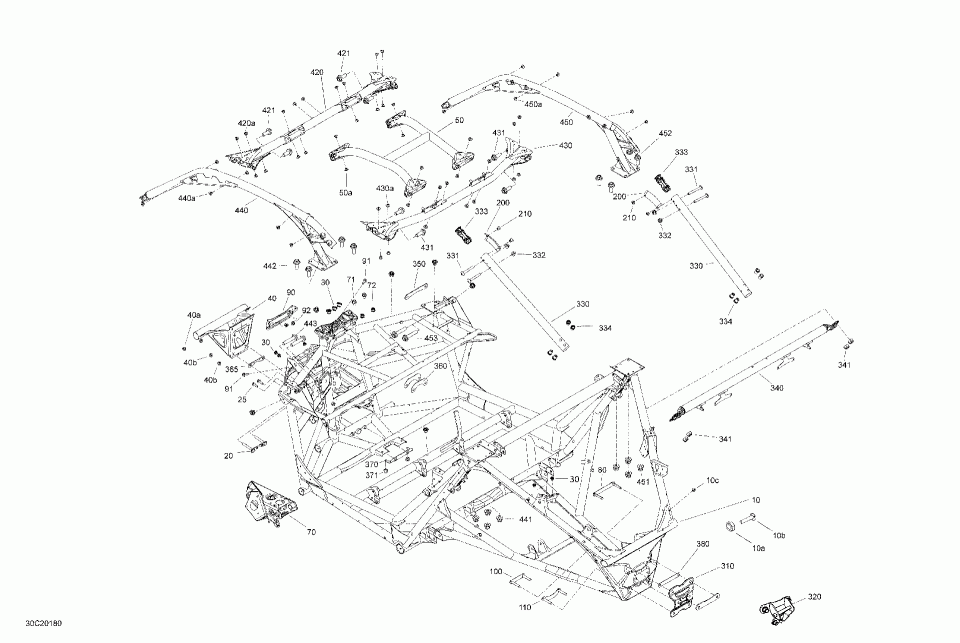

Рама

Cam-am 001 - Maverick Turbo - STD - North America
Cam-am
#oem кодцена
10
715006649
Deep Black, Frame. International. Includes 10 to 10c.
10
715006598
Deep Black, Frame. North America. Includes 10 to 10c.
100
705206853
Front Plate.
10a
233701400
Hexagonal Nut.
10b
250000913
Weld Pin 8mm X 40mm.
10c
390402200
Pop Rivet 3/16
110
705206854
Rear Plate.
20
705207424
E-Coat Front Plate.
200
705205926
Black, LH Link Plate.
210
293150102
Rivet 3/16
25
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
30
250100199
Insert Half Hex Body M6 x 1.0.
310
705205750
Rear Plate.
320
715004450
Black, Rear Attachement Hook.
330
705205751
Black, Rear Mount.
331
250000901
Torx Truss M8 X 65.
332
250100025
Elastic Flanged Nut M8.
333
705205634
Sleeve.
334
293450307
Insert Half Hex Body M8 x 1.25.
340
705205268
Belt Bar.
341
232521416
Elastic Flanged Stop Nut M12.
350
705207425
Upper Arm Link.
360
705205295
Lower Arm Link.
365
705207438
Front Plate.
370
706203122
Support.
371
390402200
Pop Rivet 3/16
380
705206069
Front Upper Plate.
40
705205746
Black, Front Bumper. Includes 40 to 40b.
40a
390402200
Pop Rivet 3/16
40b
390402200
Pop Rivet 3/16
420
705208578
Deep Black, Front Cross Member. Includes 420 to 420a.
420a
390402200
Pop Rivet 3/16
421
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
430
705208585
Deep Black, Rear Cross Member. Includes 430 to 430a.
430a
390402200
Pop Rivet 3/16
431
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
440
715006630
Deep Black, LH Cage. International.
440
715006558
Deep Black, LH Cage. North America. Includes 440 to 440a.
440a
390402200
Pop Rivet 3/16
441
233121466
Hex Flange Nut m12.
442
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip. Factory Cage:3, Service Cage:4.
443
250000857
Screw Flange M12 X 60.
450
715006637
Deep Black, RH Cage. International.
450
715006560
Deep Black, RH Cage. North America. Includes 450 to 450a.
450a
390402200
Pop Rivet 3/16
451
233121466
Hex Flange Nut m12.
452
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip. Factory Cage:3, Service Cage:4.
453
250000857
Screw Flange M12 X 60.
50
705206774
Added Cage. Includes 50 to 50a.
50a
390402200
Pop Rivet 3/16
70
705206924
DPS Support.
71
207581244
Hex. Flanged Screw M8 X 12, Scotch Grip.
72
233281416
Hex. Elastic Flanged Nut M8.
80
705206852
Rear Upper Plate.
90
705206877
Stifner Plate.
91
207661654
Hex. Flanged Screw M6 X 16.
92
233261494
Hex. Elastic Flanged Nut M6.
