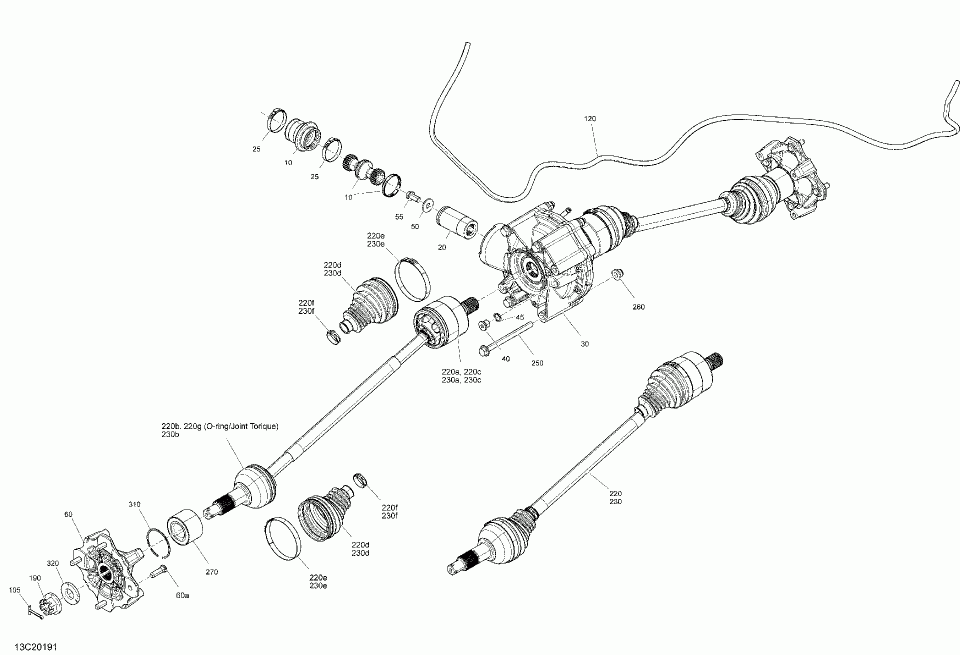

08- rear drive - common parts

Cam-am 001 - Traxter HD8 - International
Cam-am
#oem кодцена
120
293830193
Polyurethane Hose.
190
250100193
Castle Nut M20.
195
250400084
Cotter Pin.
20
705401969
Coupling Sleeve.
220
705502451
CV Joint. Includes 220 to 220g.
220a
715900429
CV Joint.
220b
715900444
Plunging Joint.
220c
705501781
Circlip.
220d
705501864
Boot Kit. Includes 220d to 220f.
220e
715900241
Oetiker Clamp, 82.1 mm.
220f
715900242
Oetiker Clamp, 27.3 mm.
220g
715900579
КОЛЬЦО
25
293650138
Oetiker Gear Clamp.
250
230602546
Hex. Flanged Screw M10 X 125.
260
233201436
Hex. Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
30
703501019
Final Drive Unit.
310
293370019
Circlip.
320
250200170
Conical Spring Washer M20.
40
705500504
Fill Level Plug.
45
705500506
Copper Washer.
50
250200014
Flat Washer M10.
55
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
60
705502338
Wheel Hub. Includes 60 to 60a.
60a
250300055
Wheel Stud M10 X 1.25.
