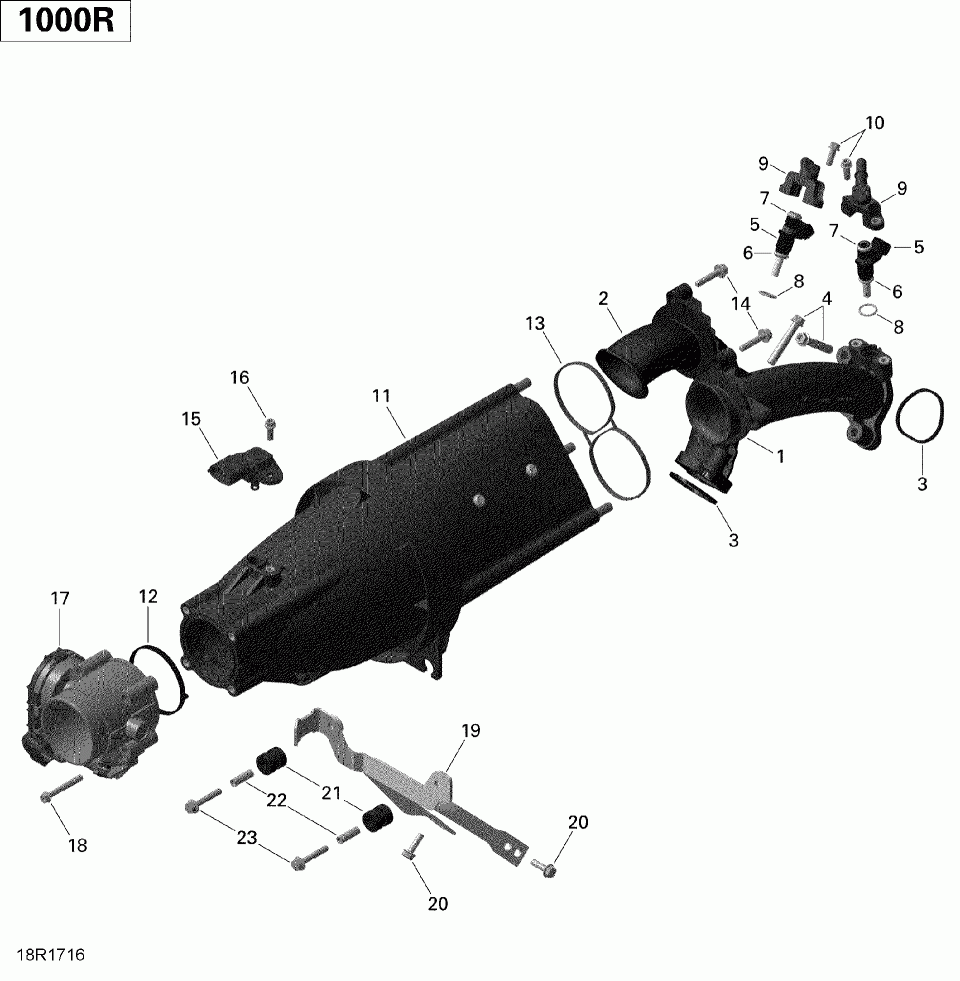

02- air intake manifold and throttle body - 1000r
02- air intake manifold and throttle body - 1000r

02- air intake manifold and throttle body - 1000r

Cam-am 002 - Commander 1000R EFI - North America

02- air intake manifold and throttle body - 1000r

#

oem код

название

цена

1

Rear Air Intake Manifold.

Rear Air Intake Manifold.

10

Flanged Torx Screw M6 X 16.

Flanged Torx Screw M6 X 16.

12

Gasket.

Gasket.

13

Gasket.

Gasket.

14

Hex. Screw M6 X 30.

Hex. Screw M6 X 30.

15

Pressure And Temperature Sensor.

Pressure And Temperature Sensor.

16

Flanged Hex. Screw M6 X 12.

Flanged Hex. Screw M6 X 12.

17

Throttle Body.

Throttle Body.

18

Flanged Torx Screw M6 X 45.

Flanged Torx Screw M6 X 45.

19

Support.

Support.

2

Front Air Intake Manifold.

Front Air Intake Manifold.

20

Hex.Screw M6 X 20.

Hex.Screw M6 X 20.

21

Rubber Bracket.

Rubber Bracket.

22

Spacer.

Spacer.

23

Hex. Screw M6 X 35.

Hex. Screw M6 X 35.

3

Gasket.

Gasket.

4

Torx Flanged Screw M8 X 45.

Torx Flanged Screw M8 X 45.

6

КОЛЬЦО

КОЛЬЦО

7

КОЛЬЦО

КОЛЬЦО

8

КОЛЬЦО

КОЛЬЦО

9

Fuel Rail.

Fuel Rail.
