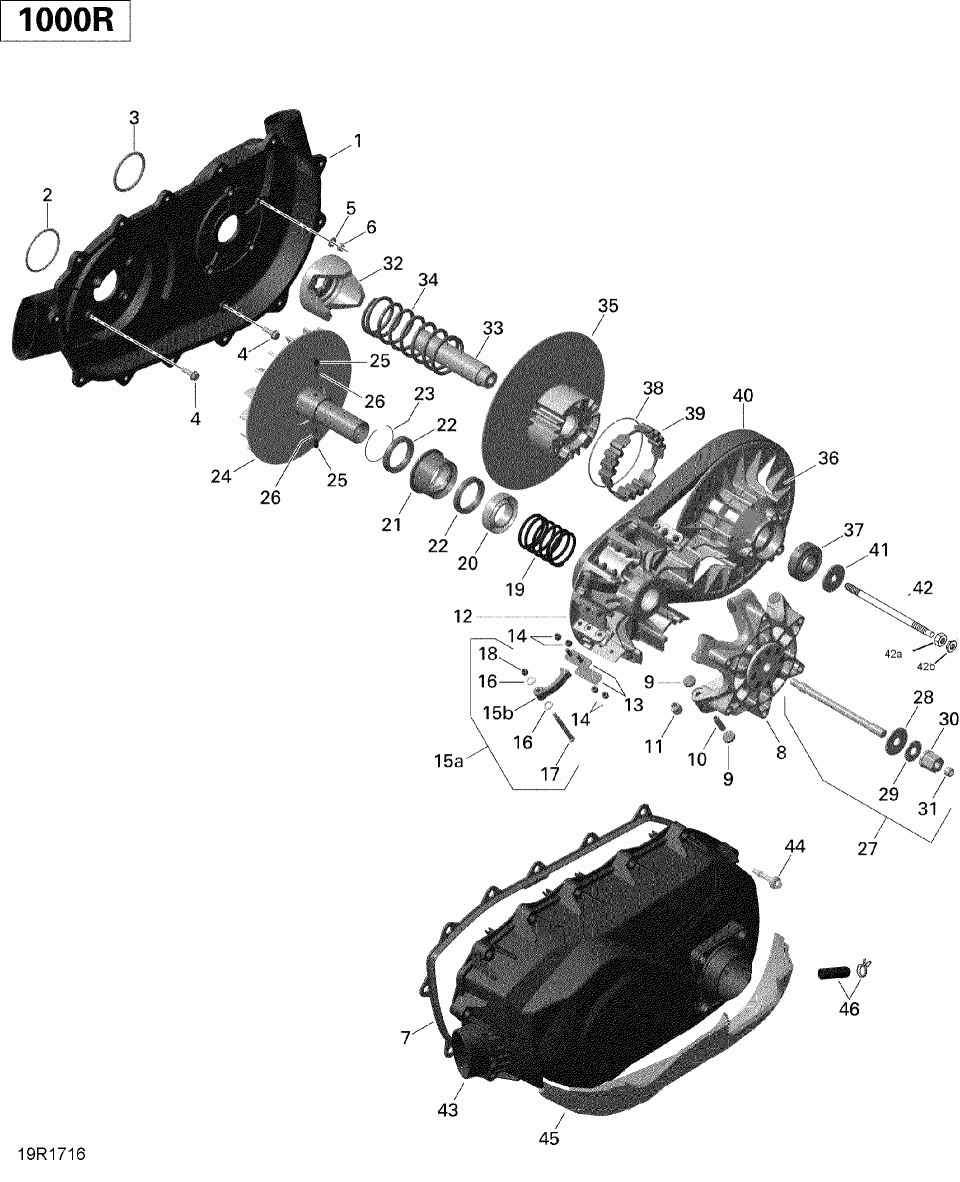

Cam-am 002 - Commander 1000R EFI - North America

oem код

название

цена

CVT Air Guide.

Roller Axle.

Roller.

Slide Plate.

Elastic Stop Nut M5.

15a

420248608

Centrifugal Lever Kit (Set Of 6). Includes 15a to 18.

420238615

Compression Spring, Drive Pulley.

КОЛЬЦО

Spring Seat.

Drive Pulley Clutch.

Ball Bearing.

Retaining Ring.

Inner Half.

Spring Sleeve.

Spring.

Clutch Bolt Repair Kit. Includes 27 to 31.

Washer 40 mm.

Washer 30 mm.

КОЛЬЦО

Cam.

Driven Pulley Shaft.

Compression Spring.

Inner Half Pulley.

Ball Bearing.

Retaining Ring.

Torque Gear.

Hex.Screw M6 X 20.

V-Belt.

Thrust Washer.

Stud Screw M10 X136.

42a

420242097

Nut M10.

42b

420242402

Nut M10.

420440568

Hex. Distance Screw M6 X 30.5.

Drain Plug Kit.

Flat Washer.

Elastic Stop Nut M6.

Gasket.

Slider Shoe Set.
