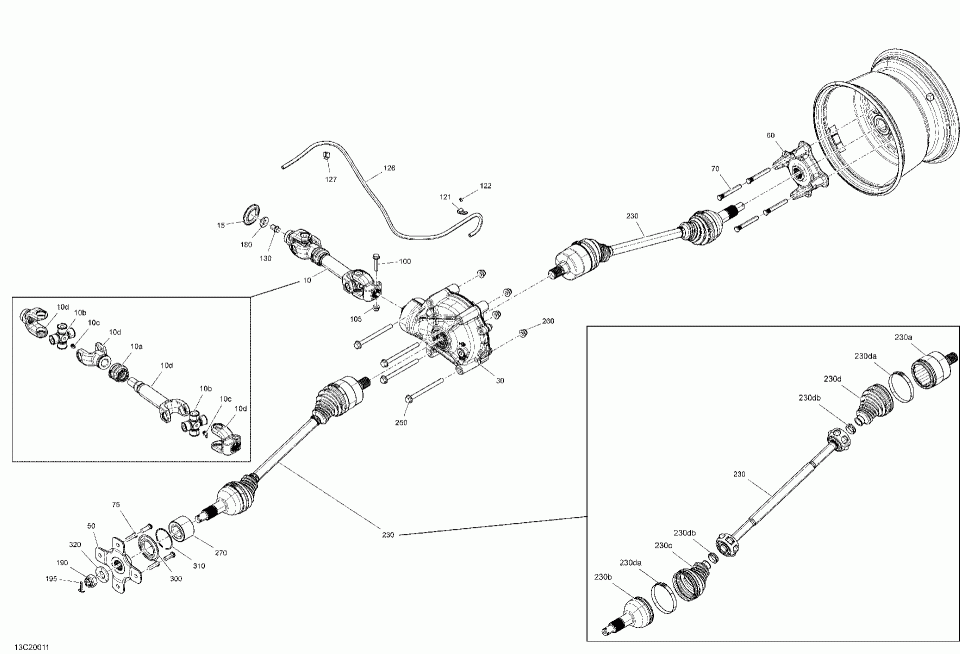

08- rear drive - common parts

Cam-am 002 - Commander 1000R EFI - North America
Cam-am
#oem кодцена
100
250001050
Hex. Flanged Screw M8 X 42.
105
233281416
Hex. Elastic Flanged Nut M8.
10a
715900118
Rubber Boot.
10c
715900295
Grease Fitting.
10d
715900436
Joint.
121
414108400
Open Clamp.
122
390402200
Pop Rivet 3/16
126
293830195
Polyurethane Hose.
127
414227300
Clip.
130
250001039
Hex Flanged Screw M12 X 16.
15
705501123
Protector.
180
250200005
Conical Spring Washer M12.
190
250100193
Castle Nut M20.
195
250400084
Cotter Pin.
230
705502411
CV Joint. Includes 230 to 230f.
230a
715900433
Plunging Joint.
230b
715900429
CV Joint.
230c
705501781
Circlip. Not Shown.
230d
705501864
Boot Kit. Includes to.
230da
715900241
Oetiker Clamp, 82.1 mm.
230db
715900242
Oetiker Clamp, 27.3 mm.
250
230602546
Hex. Flanged Screw M10 X 125.
260
233201436
Hex. Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
30
705502827
Final Drive Unit. Includes 30 to 30s.
300
705501121
Wear Sleeve.
310
293370019
Circlip.
320
250200170
Conical Spring Washer M20.
50
705502486
Wheel Hub.
60
705502470
Wheel Hub.
70
705401964
Wheel Stud.
75
250300055
Wheel Stud M10 X 1.25.
