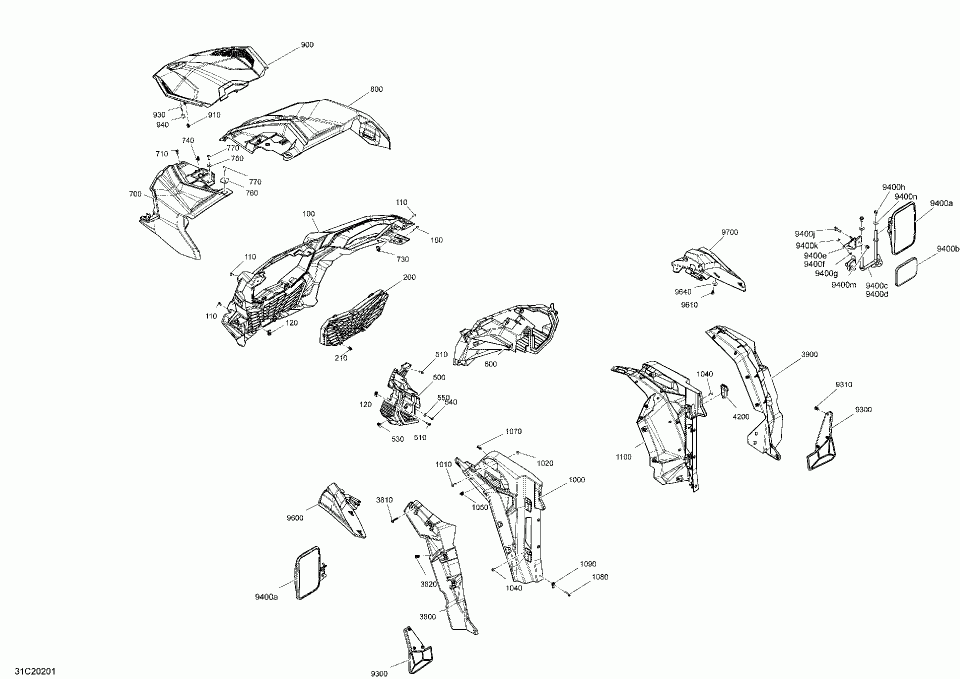

09- body - front section - red Оригинальные запчасти для мотовездеходов UTV Cam-am 002 - Maverick Sport MAX 1000R

Clip.

1070

Tuflok Plastic Rivet.

1080

250000867

Torx-truss Hex. Screw M6X35, Nylon Prot.

1090

Extruded Panel Nut M6.

110

250000721

Torx Truss Screw M6 X 16.

1100

705011324

RH Front Mudguard.

120

Extruded Panel Nut M6.

150

250000748

Torx Screw M6 X 45.

200

705011318

Fascia Removable Grid.

210

Clip.

3800

705011325

LH FRONT 60

3810

250000840

Torx-Screw Truss Head PT.K50 X 40.

3820

Tuflok Plastic Rivet.

3900

705011326

RH Front 60

4200

705012703

Hinge Cover.

500

705011319

LH Headlamp Structure.

510

250000722

Torx Screw M6 X 20.

530

Extruded Panel Nut M6.

540

250000720

Torx Screw K50 X 16.

550

234062670

Flat Washer, Stainless.

600

705011320

RH Headlamp Structure.

710

250000721

Torx Truss Screw M6 X 16.

730

Extruded Panel Nut M6.

740

Clip.

750

250200162

Flat Washer M6.6 X 22.

760

705003841

Support Plate.

770

250000722

Torx Screw M6 X 20.

900

705011322

Removable Hood.

910

Clip.

930

250000807

Torx Truss Screw M6 X 25.

9300

705012793

Front Mud Flap Model T.

9310

Tuflok Plastic Rivet.

940

705502616

Bushing.

9400a

705011497

Mirror.

9400b

705013819

Wide Angle Lateral Mirror.

9400c

705013823

LH Mirror Rod Assembly.

9400d

705013817

Mirror Rod.

9400e

705012897

LH Mirror Support.

9400f

705012898

RH Mirror Support.

9400g

250000350

Torx Truss Screw M6 X 20.

9400h

207581644

Hex. Flanged Screw M8 X 16, Scotch Grip.

9400j

207683544

Hex. Flanged Screw M8 X 35.

9400k

233261494

Hex. Elastic Flanged Nut M6.

9400m

233281414

Hex. Flanged Elastic Nut M8.

9400n

234082670

Flat Washer, Stainless.

9600

705012791

LH Front Flasher Support Model T.

9610
