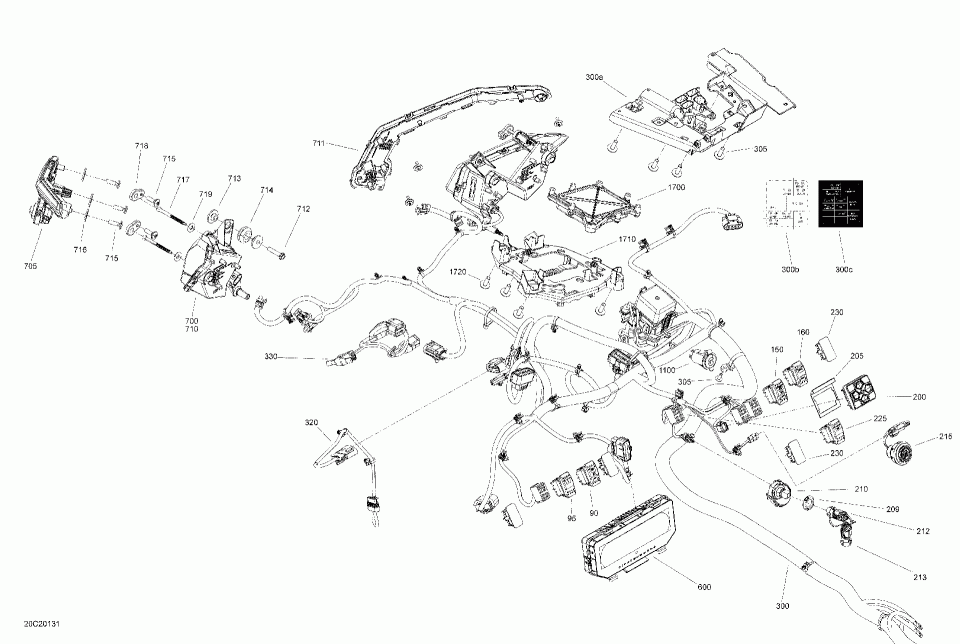

10- electric - system - front section

Cam-am 002 - Maverick Turbo - XMR - North America
Cam-am
#oem кодцена
1100
710005374
12V Power Outlet.
150
710006040
Differntial Switch.
160
710006559
Differential Mode Switch.
1700
710007261
Front Drive Module.
1710
710005807
FDM Support.
1720
250000959
Screw PT Type K-50 X 16.
200
710006059
Switch Multifunction.
205
707900778
Rubber Stopper.
209
278002963
Safety Nut (DESS Switch).
210
515178225
DESS Switch, RFID.
212
710004964
Grey Key RFID.
213
710005232
Green Key RFID.
215
710005213
Start-Stop Button.
225
710002053
Switch, Over ride.
230
710001999
Plug Carling.
300
710006658
Main Wiring Harness. Includes 300 to 300c.
300a
710006339
Fuse Holder Support.
300b
710006560
Fuses Decal.
300c
710006408
Fuses Decal.
305
250000959
Screw PT Type K-50 X 16.
320
710005291
Cable Throttle Pedal.
330
710006807
Front Differential Wiring Harness.
600
710006854
Speedometer.
705
710004994
LH Signature Beam.
711
710004995
RH Signature Beam.
712
241152540
Hex. Flanged Screw K50 X 2.24 X 25.
713
710004749
Shoulder Bushing.
714
709000582
Grommet.
715
250000720
Torx Screw K50 X 16.
716
234062670
Flat Washer, Stainless.
717
710005837
Ajustment Screw.
718
710005097
Adjustment Guide.
719
293300192
КОЛЬЦО
90
710004492
Light Switch.
95
710002052
Winch Switch.
