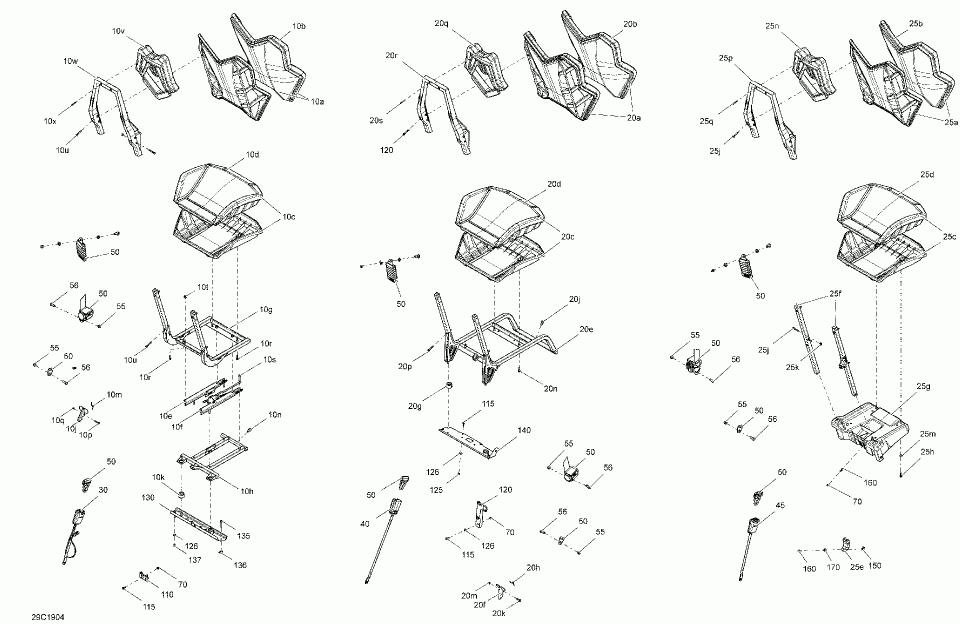

Сидение

Cam-am 003 - Commander MAX 1000R EFI - International
Cam-am
#oem кодцена
10b
708000675
Backrest Cover. Package XT.
10b
708002618
Backrest Cover. Package LTD.
10d
708001103
Seat Cover. Package XT.
10d
708002619
Seat Cover. Package LTD.
10e
708000848
LH Rail. Package LTD.
10f
708001739
RH Rail. Package LTD.
10g
708001356
Operator Seat Frame. Package LTD.
10h
708001174
Seat Member. Package LTD.
10h
708000667
Seat Member. Package LTD.
10j
708001355
Seat Latch. Package LTD.
10k
708001671
Rubber Bumper. Package LTD.
10m
708000921
Spring. Package LTD.
10n
205501644
Socket Screw M10 X 16. Package LTD.
10p
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip. Package LTD.
10q
232561600
Hex. Elastic Stop Nut M6. Package LTD.
10r
207562544
Hex. Flanged Screw M6 X 25. Package LTD.
10s
205084044
Socket Head Screw M8 X 1.25 X 40. Package LTD.
10t
233281414
Hex. Flanged Elastic Nut M8. Package LTD.
10u
250000672
Hex. Flange Screw M6. Package LTD. Includes 10u to 10x.
10v
708001074
Head Rest. Package LTD.
10w
708001245
Seat Support. Package LTD.
10x
250000897
Hex. Flange Screw K50 X 40. Package LTD.
110
708001212
Anchor.
115
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
120
708001213
Anchor.
125
233061414
Hex. Flanged Nut M6.
126
234062670
Flat Washer, Stainless.
130
708001214
Seat Support.
135
250000213
Hex. Flanged Screw M6 X 1.0 X 45.
136
250100171
Panel Nut M6 X 1.0.
137
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
140
708001804
Support.
150
250100171
Panel Nut M6 X 1.0.
160
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
170
234281474
Conical Spring Washer M8.
180
250100135
Nylon Insert Hex. Lock Nut 7/16-20. Not shown.
180w
708000890
Safety Belt Screw. Not shown.
180x
708000891
Position Washer. Not shown.
180y
233161464
Hex. Elastic Flange Nut M6. Not shown.
180z
250000672
Hex. Flange Screw M6. Not shown.
20b
708000675
Backrest Cover. Package XT.
20b
708002618
Backrest Cover. Package LTD.
20d
708001103
Seat Cover. Package XT.
20d
708002619
Seat Cover. Package LTD.
20e
708001357
Passenger Seat Frame. Package LTD.
20f
708001355
Seat Latch. Package LTD.
20g
708001671
Rubber Bumper. Package LTD.
20h
708000921
Spring. Package LTD.
20j
205501644
Socket Screw M10 X 16. Package LTD.
20k
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip. Package LTD.
20m
232561600
Hex. Elastic Stop Nut M6. Package LTD.
20n
207562544
Hex. Flanged Screw M6 X 25. Package LTD.
20p
250000672
Hex. Flange Screw M6. Package LTD. Includes 20p to 20s.
20q
708001074
Head Rest. Package LTD.
20r
708001245
Seat Support. Package LTD.
20s
250000897
Hex. Flange Screw K50 X 40. Package LTD.
25b
708000675
Backrest Cover. Package XT.
25b
708002618
Backrest Cover. Package LTD.
25d
708001103
Seat Cover. Package XT.
25d
708002619
Seat Cover. Package LTD.
25e
708001474
Rear Anchor. Package LTD.
25f
708001476
Side Tube. Package LTD.
25g
708001198
Seat Support. Package LTD.
25h
207562544
Hex. Flanged Screw M6 X 25. Package LTD.
25j
250000672
Hex. Flange Screw M6. Package LTD.
25k
233161464
Hex. Elastic Flange Nut M6. Package LTD.
25m
234062670
Flat Washer, Stainless. Package LTD. Includes 25m to 25q.
25n
708001074
Head Rest. Package LTD.
25p
708001245
Seat Support. Package LTD.
25q
250000897
Hex. Flange Screw K50 X 40. Package LTD.
30
708002061
Driver Buckle Side.
40
708002064
Passenger Buckle Side.
45
708002063
Rear Passenger Buckle Side.
50
708002644
Safety Belt.
55
250100135
Nylon Insert Hex. Lock Nut 7/16-20.
70
250100199
Insert Half Hex Body M6 x 1.0.
