Cam-am 003 - Commander MAX 800R EFI - North America

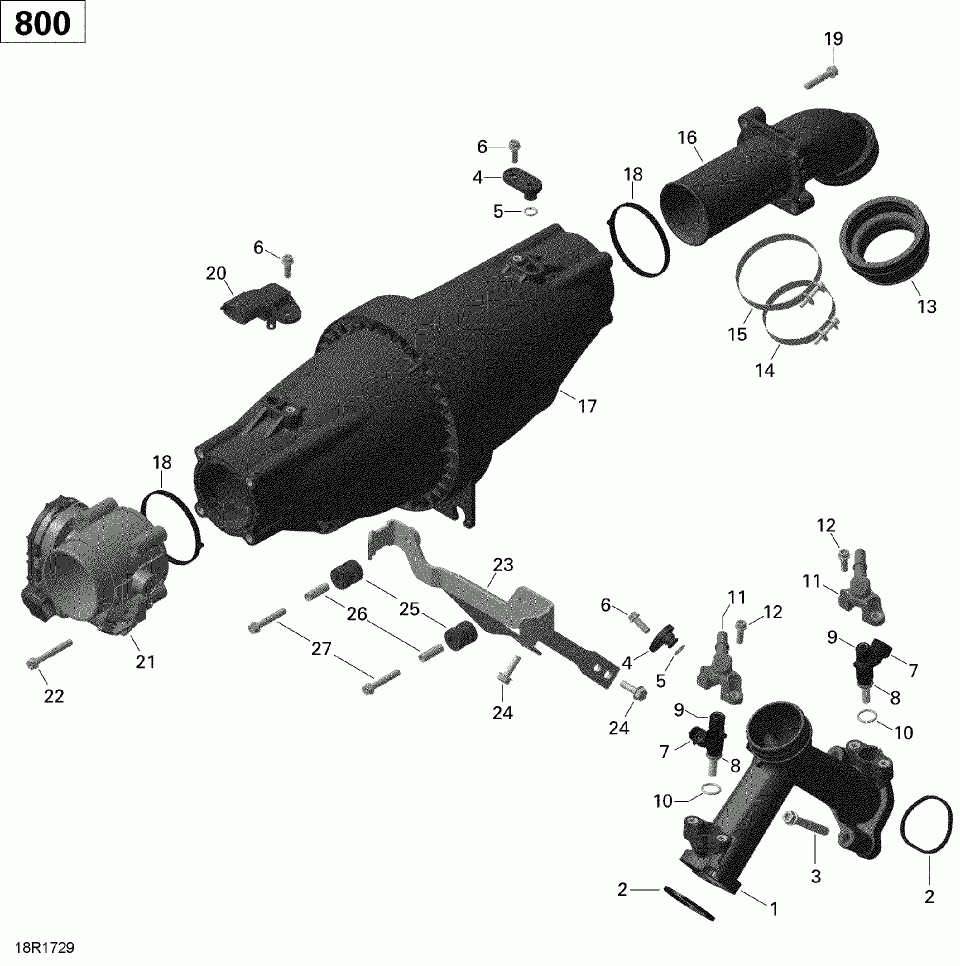

02- air intake manifold and throttle body - 800r efi

#

oem код

название

цена

1

Air Intake Manifold.

Air Intake Manifold.

10

КОЛЬЦО

КОЛЬЦО

11

Fuel Rail.

Fuel Rail.

12

Flanged Torx Screw M6 X 16.

Flanged Torx Screw M6 X 16.

13

Intake Neck.

Intake Neck.

14

Clamp.

Clamp.

15

Clamp.

Clamp.

16

Air Inlet Manifold.

Air Inlet Manifold.

18

Gasket.

Gasket.

19

Hex. Screw M6 X 30.

Hex. Screw M6 X 30.

2

Gasket.

Gasket.

20

Pressure And Temperature Sensor.

Pressure And Temperature Sensor.

21

Throttle Body.

Throttle Body.

22

Flanged Torx Screw M6 X 45.

Flanged Torx Screw M6 X 45.

23

Support.

Support.

24

Hex.Screw M6 X 20.

Hex.Screw M6 X 20.

25

Rubber Bracket.

Rubber Bracket.

26

Spacer.

Spacer.

27

Hex. Screw M6 X 35.

Hex. Screw M6 X 35.

3

Flanged Torx Screw M8 X 55.

Flanged Torx Screw M8 X 55.

4

Cover.

Cover.

5

КОЛЬЦО

КОЛЬЦО

6

Flanged Hex. Screw M6 X 12.

Flanged Hex. Screw M6 X 12.

8

КОЛЬЦО

КОЛЬЦО

9

КОЛЬЦО

КОЛЬЦО
