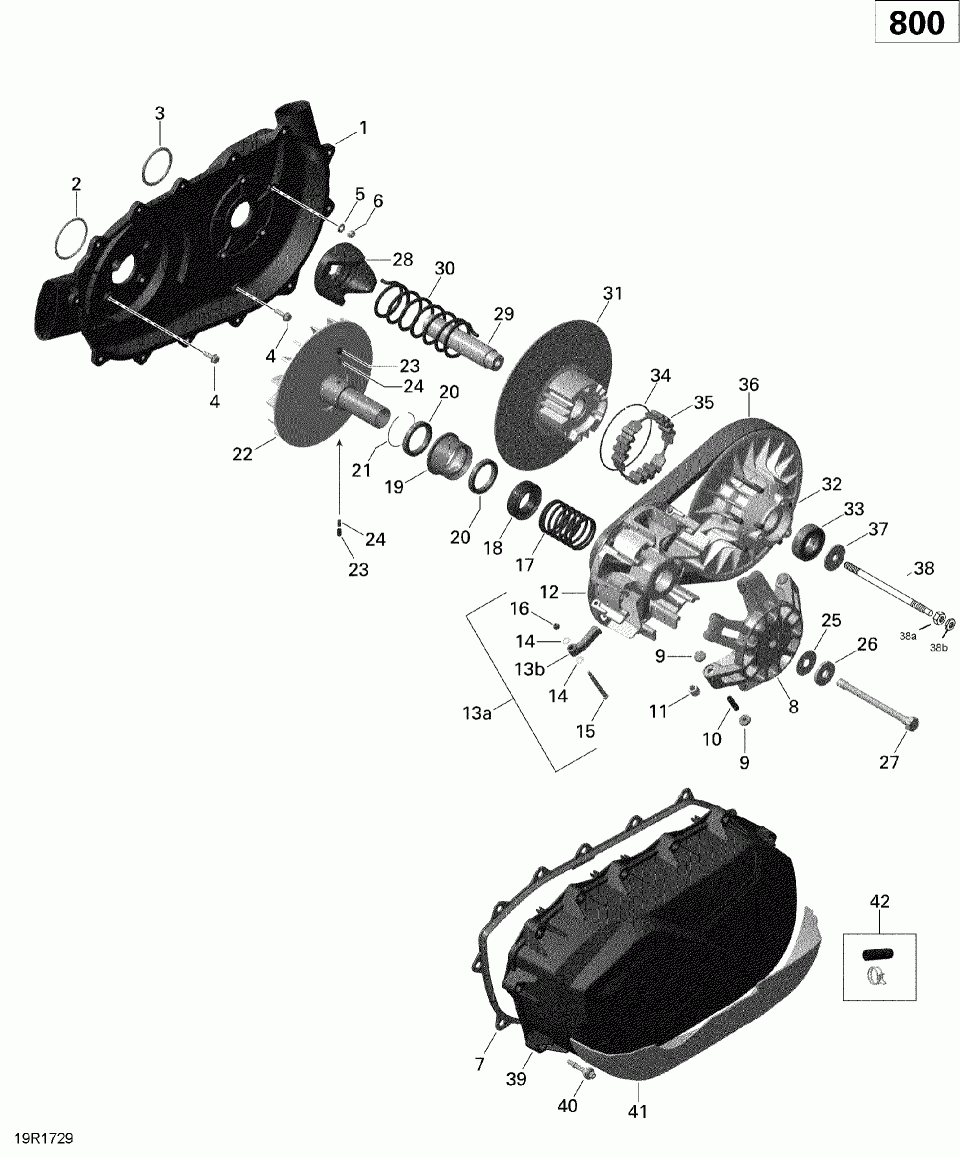

05- transmission - 800r efi

Cam-am 003 - Commander MAX 800R EFI - North America
Cam-am
#oem кодцена
1
420612304
CVT Air Guide.
10
417223257
Roller Axle.
11
417223767
Roller.
12
420280467
Outher Haft.
13a
420248607
Centrifugal Lever Set. Includes 13a to 16.
17
420238615
Compression Spring, Drive Pulley.
18
420627578
Spring Seat.
19
420257195
Drive Pulley Clutch.
2
420430408
КОЛЬЦО
20
420632377
Ball Bearing.
21
420245951
Retaining Ring.
22
420280374
Inner Half.
23
420229577
Spring Sleeve.
24
420239134
Spring.
25
420627920
Thrust Washer.
26
420627765
Spring Washer.
27
420641855
Hex. Screw M12 X 135.
28
420280472
Cam.
29
420220914
Driven Pulley Shaft.
3
420631088
КОЛЬЦО
30
420638040
Compression Spring.
33
420932421
Ball Bearing.
34
420245911
Retaining Ring.
35
420660124
Torque Gear.
36
422280360
V-Belt.
37
420627590
Thrust Washer.
38
420441900
Stud Screw M10 X 136.
38a
420242097
Nut M10.
38b
420242402
Nut M10.
4
420441311
Hex.Screw M6 X 20.
40
420440568
Hex. Distance Screw M6 X 30.5.
41
715900200
Heat Protection Mat. Except Com-Max.
41
420975052
Heat Protection Mat. Com-Max.
42
707001179
Drain Plug Kit.
5
224061121
Flat Washer.
6
232561434
Elastic Stop Nut M6.
7
420430126
Gasket.
9
420281296
Slider Shoe Set.
