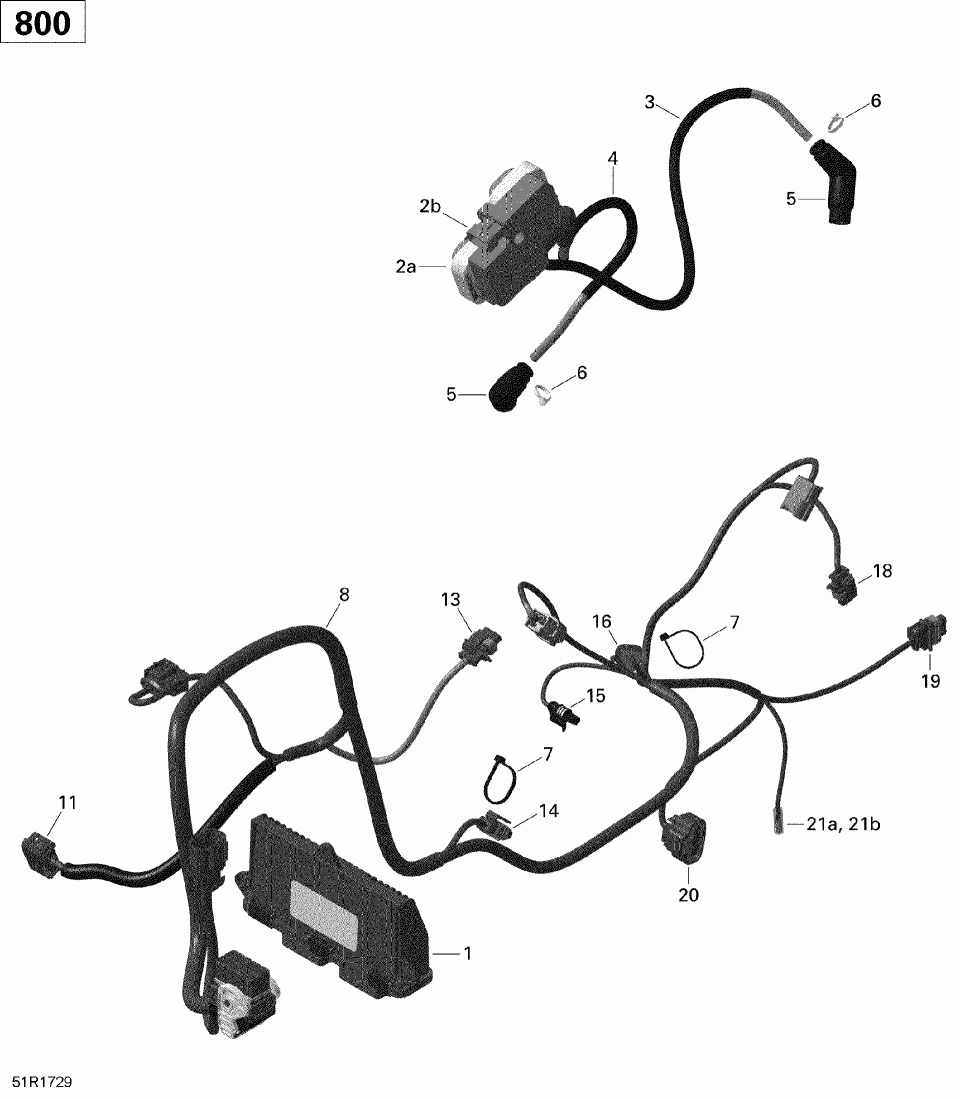

10- engine harness and electronic module - 800r efi

Cam-am 003 - Commander MAX 800R EFI - North America
Cam-am
#oem кодцена
1
420866502
Engine Control Model. Except Max Model.
1
420666583
Engine Control Model. Max Model.
11
710001872
Housing, 6 Positions.
13
278000997
Male Housing, 3 Circuits.
14
278001005
Male Housing, 2 Circuits.
15
278001012
Male Housing, 1 Circuit.
16
278002378
Male Housing.
18
278001005
Male Housing, 2 Circuits.
19
278000997
Male Housing, 3 Circuits.
20
710000329
Male Housing, 4 Circuits.
21a
278001007
Insulated Sheath.
21b
278001009
Female Terminal.
2a
278001546
Ignition Coil. Includes 2a to 2b.
2b
710000568
Housing.
3
420665330
Spark Plug Cable, 610 mm, PTO Side.
4
420664300
Spark Plug Cable, 365 mm, MAG Side.
5
420265248
Spark Plug Connector.
6
420866721
Tie Rap.
7
420866714
Tie Rap.
8
420666337
Engine Wiring Harness. Includes 8 to 21b, Non Max Model.
8
420666551
Engine Wiring Harness. Includes 8 to 21b, MAX Model.
