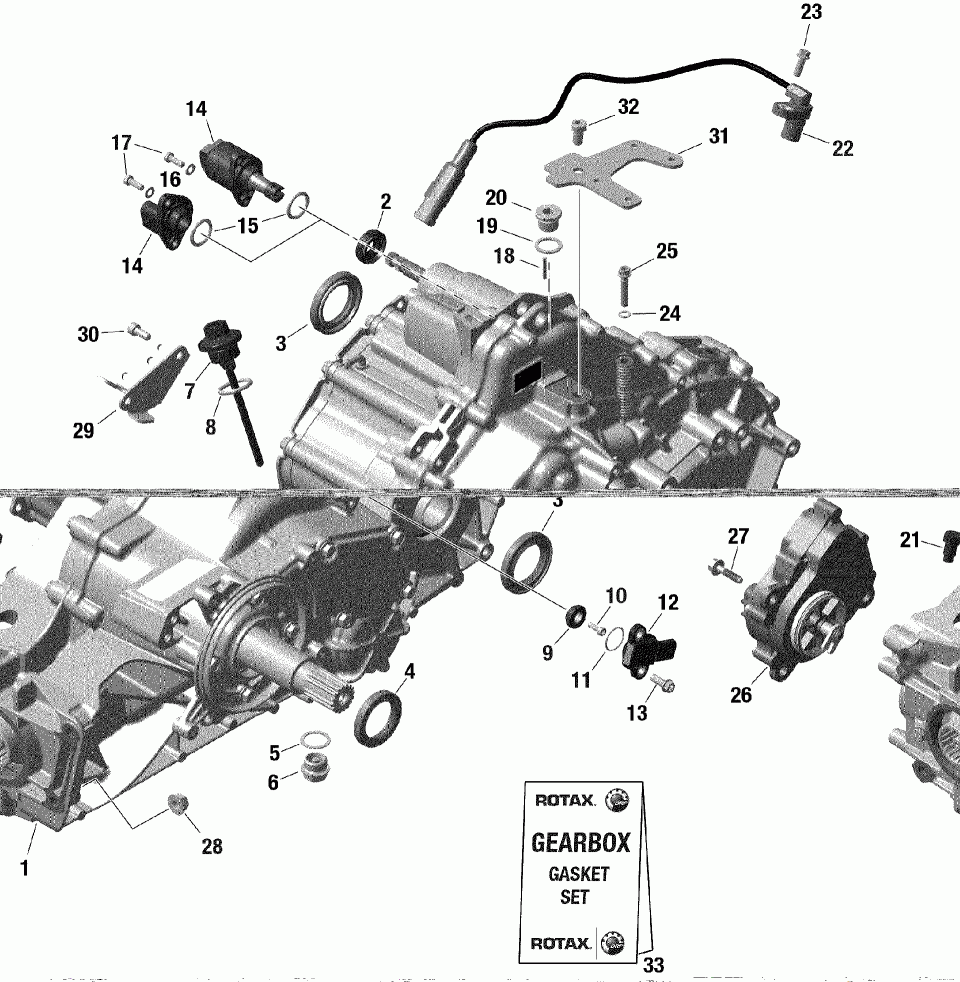

05- gear box and components - 794

Cam-am 003 - Defender HD10 - Except XMR - North America
Cam-am
#oem кодцена
1
420686794
Gearbox.
10
420440292
Allen Screw M4 X12.
11
420230405
КОЛЬЦО
12
420265122
Angle Of Rotation Sensor.
13
420440162
Flanged Torx Screw M6 X 16.
14
420265842
Servomotor.
15
420450450
КОЛЬЦО
16
420927574
Washer 5.3.
17
420240150
Allen Screw M5 X 14.
18
420932840
Needle Pin.
19
420430622
КОЛЬЦО
2
420250452
Oil Seal.
20
420240234
Plug Screw M16 X 1.5.
21
420241905
Plug Screw M10X10.
22
420265621
Speed Sensor.
23
420440162
Flanged Torx Screw M6 X 16.
24
420230415
Seal Washer.
25
420440647
Flanged Torx Screw M6 X 30.
26a
293300117
КОЛЬЦО
26b
415129175
Shifting Fork.
26c
293370042
Circlip.
27
420441951
Collar Screw M6 x 25.
28
420842619
Hex. Nut M8.
29
420851548
Support.
3
420831185
Oil Seal.
32
420941527
Allen Screw M8 X 14.
33
420686603
Gasket Set.
4
420950089
Oil Seal.
5
420552280
КОЛЬЦО
6
420840277
Drain Plug M18 X 1.5.
7
420256806
Oil Dipstick.
8
420631640
КОЛЬЦО
9
420256000
Magnet.
