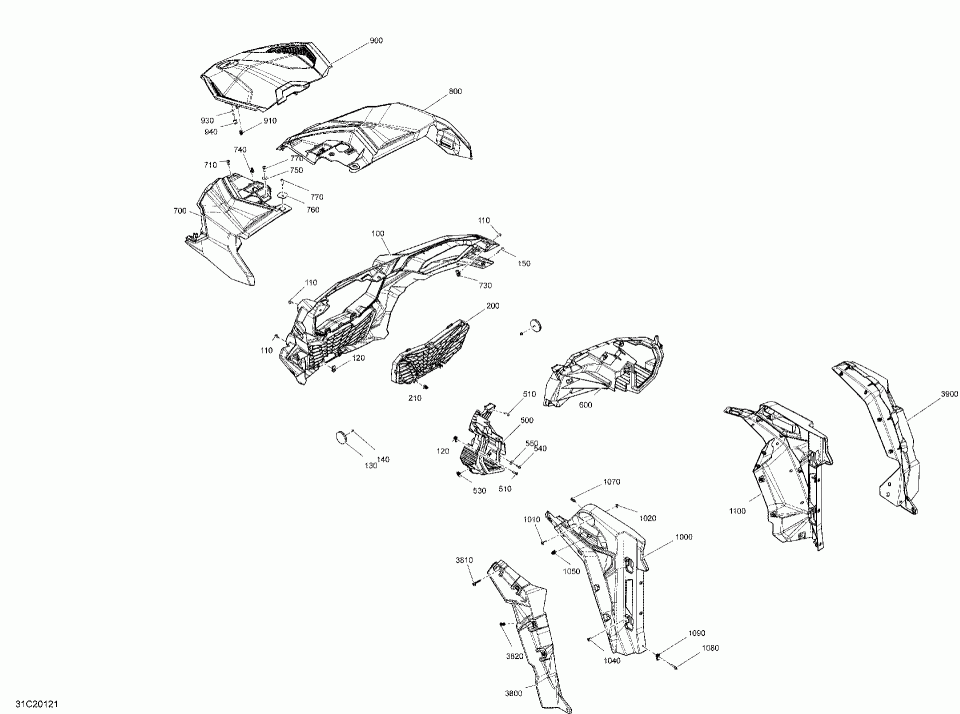

09- body - front section - red

Cam-am 003 - Maverick Sport MAX 1000 - International
Cam-am
#oem кодцена
100
705011317
Front Fascia.
1000
705011323
LH Front Mudguard.
1010
250000712
Torx Screw M6 X 20.
1020
233261494
Hex. Elastic Flanged Nut M6.
1040
250000721
Torx Truss Screw M6 X 16.
1050
517306478
Clip.
1070
293150230
Tuflok Plastic Rivet.
1080
250000867
Torx-truss Hex. Screw M6X35, Nylon Prot.
1090
250000957
Extruded Panel Nut M6.
110
250000721
Torx Truss Screw M6 X 16.
1100
705011324
RH Front Mudguard.
120
250000957
Extruded Panel Nut M6.
130
705011222
Amber Reflector.
140
233251494
Elastic Flanged Nut M5.
150
250000748
Torx Screw M6 X 45.
200
705011318
Fascia Removable Grid.
210
517306478
Clip.
3800
705011325
LH FRONT 60
3810
250000840
Torx-Screw Truss Head PT.K50 X 40.
3820
293150230
Tuflok Plastic Rivet.
3900
705011326
RH Front 60
500
705011319
LH Headlamp Structure.
510
250000722
Torx Screw M6 X 20.
530
250000957
Extruded Panel Nut M6.
540
250000720
Torx Screw K50 X 16.
550
234062670
Flat Washer, Stainless.
600
705011320
RH Headlamp Structure.
710
250000721
Torx Truss Screw M6 X 16.
730
250000957
Extruded Panel Nut M6.
740
517306478
Clip.
750
250200162
Flat Washer M6.6 X 22.
760
705003841
Support Plate.
770
250000722
Torx Screw M6 X 20.
900
705011322
Removable Hood.
910
517306478
Clip.
930
250000807
Torx Truss Screw M6 X 25.
940
705502616
Bushing.
