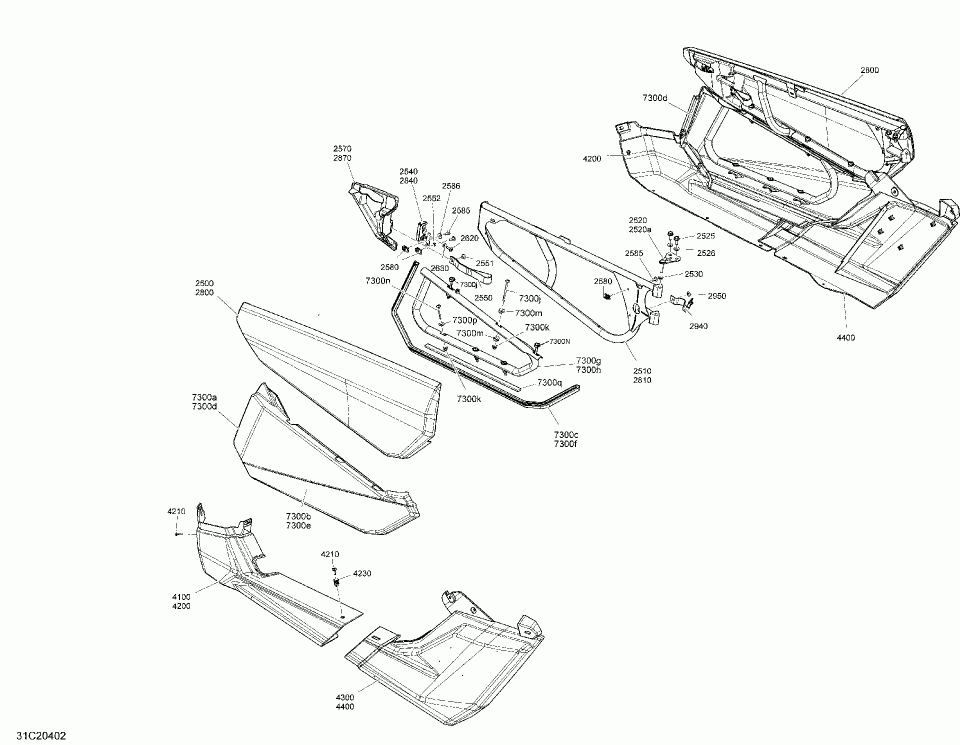

09- body - door section - xmr - manta green

Cam-am 003 - Maverick Turbo RR - XMR - International
Cam-am
#oem кодцена
2500
705014083
Mineral Satin Gray, LH Front Door Panel.
2510
705012564
Black, LH Door Frame.
2520
705011187
Door Support. Includes 2520 to 2520a.
2520a
250000913
Weld Pin 8mm X 40mm.
2525
207582054
Washer Head Hexagonal Screw.
2526
234081430
Flat Washer M8.
2530
234081100
Flat Washer 8 mm, Nylon.
2540
705013095
LH Latch.
2550
293850135
Belt.
2551
293150103
Pop Rivet 3/16
2552
293900104
Bushing.
2570
705013535
LH Latch Cover.
2580
250000957
Extruded Panel Nut M6.
2585
250000721
Torx Truss Screw M6 X 16.
2586
234062670
Flat Washer, Stainless.
2620
250000722
Torx Screw M6 X 20.
2630
224061121
Flat Washer.
2800
705014084
Mineral Satin Gray, RH Front Door Panel.
2810
705012565
Black, RH Door Frame.
2840
705013096
RH Latch.
2870
705013536
RH Latch Cover.
2940
293850129
Door Belt.
2950
293150103
Pop Rivet 3/16
4100
705009513
LH Central Lateral Panel.
4200
705009514
RH Central Lateral Panel.
4210
250000722
Torx Screw M6 X 20.
4230
705010872
Insert.
4300
705010676
LH Rear Lateral Panel.
4400
705010677
RH Rear Lateral Panel.
7300a
715002903
Door Panels.
7300b
704907650
LH Lower Door Decal.
7300c
705012018
Door Seal.
7300d
715002903
Door Panels.
7300e
704907651
RH Lower Door Decal.
7300f
705012018
Door Seal.
7300g
705012750
Black, LH Door Frame.
7300h
705012751
Black, RH Door Frame.
7300j
250000902
Torx-Truss M/S M6 X 80.
7300k
233261494
Hex. Elastic Flanged Nut M6.
7300m
705202223
Offset Washer.
7300n
250000749
Torx Truss Screw M6 X 50.
7300p
234062670
Flat Washer, Stainless.
7300q
293200003
Neoprene Seal (1PAC=3M).
