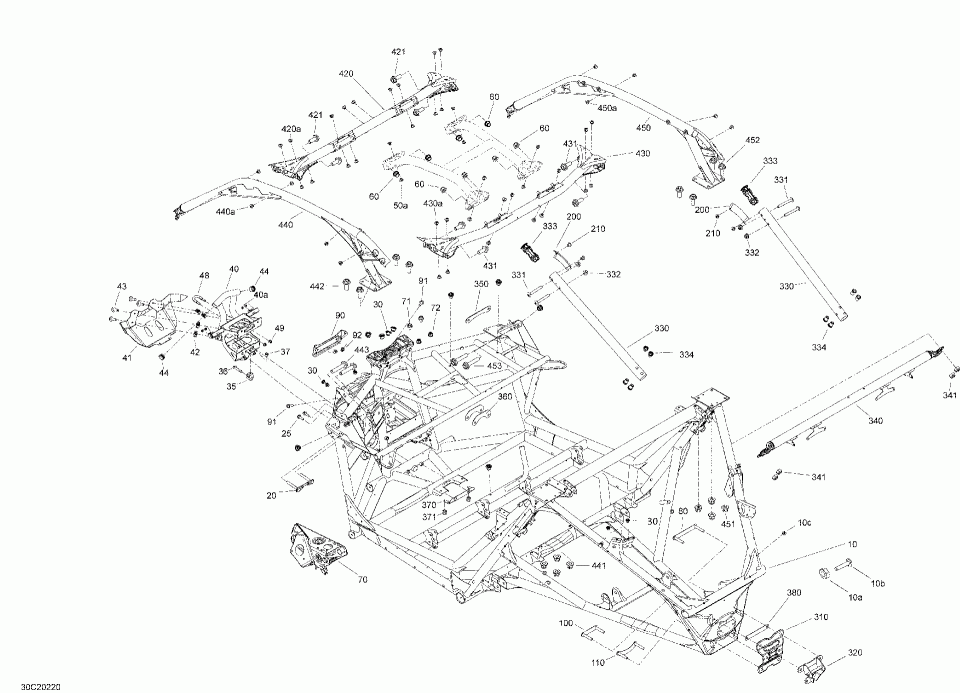

Рама

Cam-am 003 - Maverick Turbo RR - XMR - International
Cam-am
#oem кодцена
10
715006651
Manta Green, Frame. International.
10
715006602
Manta Green, Frame. North America. Includes 10 to 10c.
100
705206853
Front Plate.
10a
233701400
Hexagonal Nut.
10b
250000913
Weld Pin 8mm X 40mm.
10c
390402200
Pop Rivet 3/16
110
705206854
Rear Plate.
20
705207424
E-Coat Front Plate.
200
705208286
Connecting Plate.
210
293150102
Rivet 3/16
25
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
30
250100199
Insert Half Hex Body M6 x 1.0.
310
705205750
Rear Plate.
320
715004450
Black, Rear Attachement Hook. North America.
320
715006661
Black, Rear Attachement Hook. International.
330
705208287
Manta Green, Rear Tube.
331
250000901
Torx Truss M8 X 65.
332
250100025
Elastic Flanged Nut M8.
333
705205634
Sleeve.
334
293450307
Insert Half Hex Body M8 x 1.25.
340
705205268
Belt Bar.
341
232521416
Elastic Flanged Stop Nut M12.
35
705206992
Bumper Link.
350
705207425
Upper Arm Link.
36
250000987
Screw-Hex.Flange DIN.6921 M12X1.75.
360
705205295
Lower Arm Link.
37
250000060
Flanged Screw M10 X 16, Scotch Grip.
370
706203122
Support.
371
390402200
Pop Rivet 3/16
380
705206069
Front Upper Plate.
40
715006660
Manta Green, Front Bumper. International.
40
715006626
Manta Green, Front Bumper. North America. Includes 40 to 40a.
40a
390402200
Pop Rivet 3/16
41
715006996
Front Master Plate. International.
42
250000957
Extruded Panel Nut M6.
420
705208583
Manta Green, Front Cross Member. Includes 420 to 420a.
420a
390402200
Pop Rivet 3/16
421
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
43
250000722
Torx Screw M6 X 20.
430
705208592
Manta Green, Rear Cross Member. Includes 430 to 430a.
430a
390402200
Pop Rivet 3/16
431
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip.
44
705202455
Cap.
440
715006632
Manta Green, LH Cage. International.
440
715006566
Manta Green, LH Cage. North America. Includes 440 to 440a.
440a
390402200
Pop Rivet 3/16
441
233121466
Hex Flange Nut m12.
442
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip. Factory Cage:3, Service Cage:4.
443
250000857
Screw Flange M12 X 60.
450
715006639
Manta Green, RH Cage. International.
450
715006568
Manta Green, RH Cage. North America. Includes 450 to 450a.
450a
390402200
Pop Rivet 3/16
451
233121466
Hex Flange Nut m12.
452
207523056
Hex. Flanged Screw M12 X 30, Scotch Grip. Factory Cage:3, Service Cage:4.
453
250000857
Screw Flange M12 X 60.
48
705206983
U-Clamp.
49
233201436
Hex. Flanged Elastic Nut M10.
50a
390402200
Pop Rivet 3/16
60
233221466
Elastic Flange Nut M12.
70
705206924
DPS Support.
71
207581244
Hex. Flanged Screw M8 X 12, Scotch Grip.
72
233281416
Hex. Elastic Flanged Nut M8.
80
705206852
Rear Upper Plate.
90
705206877
Stifner Plate.
91
207661654
Hex. Flanged Screw M6 X 16.
92
233261494
Hex. Elastic Flanged Nut M6.
