09- body - manta green - xmr

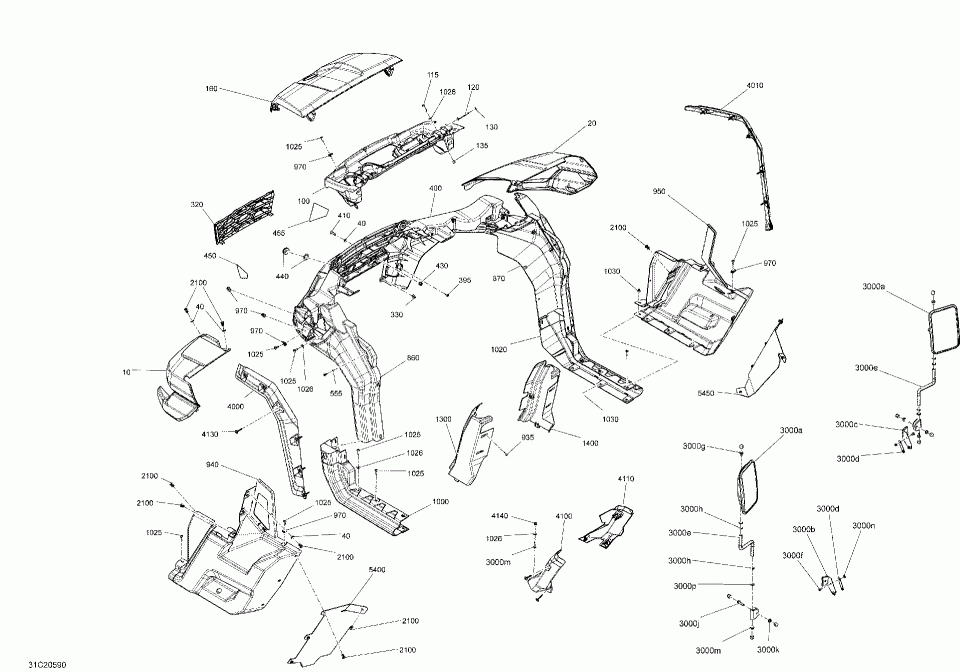

Cam-am 003 - Traxter HD10 - XMR - International
Cam-am
#oem кодцена
10
705014063
Manta Green, LH Front Fender.
100
705013766
Multi Purpose Support.
1000
705008699
LH Central Lateral Panel.
1020
705008700
RH Central Lateral Panel.
1025
250000807
Torx Truss Screw M6 X 25.
1026
234062670
Flat Washer, Stainless.
1030
293150108
Pop Rivet 3/16”.
115
210263050
Flanged Hex. Screw M6 X 30.
120
207667554
Screw Hex Flange M6 X 75.
130
732610072
Push Nut.
1300
715003564
LH Rear Cage Cover Kit.
135
293900125
Bushing.
1400
715003565
RH Rear Cage Cover Kit.
160
705014059
Mineral Satin Gray, Front Hood.
20
705014064
Manta Green, RH Front Fender.
2100
293150230
Tuflok Plastic Rivet.
3000a
705011497
Mirror.
3000b
705012151
LH Mirror Support.
3000c
705012152
RH Mirror Support.
3000d
705010469
Plate.
3000e
705012671
Mirror Rod.
3000f
250000348
Torx Truss Screw M6 X 16.
3000g
207581644
Hex. Flanged Screw M8 X 16, Scotch Grip.
3000h
293370131
Snap Ring.
3000j
207683544
Hex. Flanged Screw M8 X 35.
3000k
233281414
Hex. Flanged Elastic Nut M8.
3000m
250000758
Torx Screw M6 X 25.
3000n
233261494
Hex. Elastic Flanged Nut M6.
3000p
250200178
Flat Washer.
320
705013590
Grill.
330
517306478
Clip.
395
250000725
Screw M4 X 16.
40
503192494
Washer.
400
705013591
Deep Black, Front Fascia.
4000
705011518
LH Front Fender Flare.
4010
705011519
Front RH Fender Flare.
410
250000886
Torx Screw M8 X 30.
4100
705011522
LH Central Fender Flare.
4110
705011523
RH Center Fender Flare.
4125
234062670
Flat Washer, Stainless.
4130
250000840
Torx-Screw Truss Head PT.K50 X 40.
4140
233261494
Hex. Elastic Flanged Nut M6.
430
233281414
Hex. Flanged Elastic Nut M8.
440
705010718
Grommet.
450
704905072
LH Front Reflector.
455
704905073
RH Front Reflector.
5400
705013057
LH Rear Deflector.
5450
705013058
RH Rear Deflector.
555
234051670
Flat Washer M5.
860
705008152
LH Front Lateral Panel.
870
705008153
RH Front Lateral Panel.
935
250000720
Torx Screw K50 X 16.
940
705013658
Deep Black, LH Rear Body Panel.
941
414916600
Black Nylon Cap.
950
705013659
Deep Black, RH Rear Body Panel.
970
250000957
Extruded Panel Nut M6.
