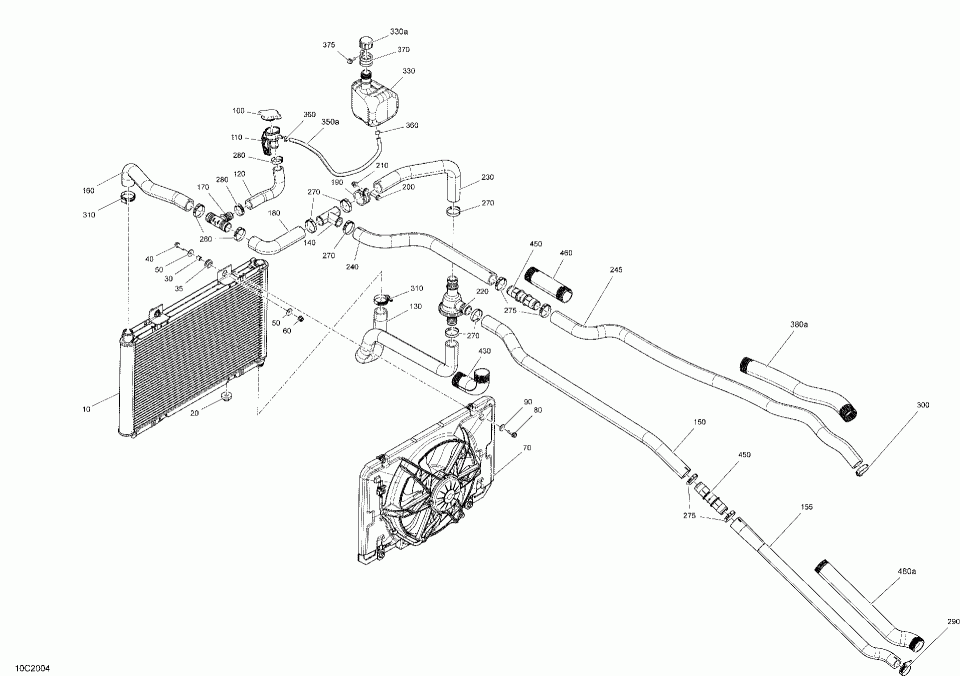

01- cooling - system

Cam-am 004 - Commander MAX 1000R EFI - North America
Cam-am
#oem кодцена
10
709200395
Radiator.
100
709200207
Pressure Cap.
110
709200179
Filler Neck.
120
709200264
Filler Neck Hose.
130
709200513
Radiator Inlet Hose.
140
509000219
T-Fitting.
150
709200519
Pump Hose.
155
709200496
Pump Hose.
160
709200265
Radiator Outlet Hose.
170
509000372
T-Fitting.
180
709200380
Intermediate Hose.
190
293650218
Hose Retainer.
20
709200285
Grommet.
200
207662534
Hex. Flanged Screw M6 X 25.
210
233261434
Flanged Elastic Nut M6.
220
709200406
Thermostat.
230
709200447
Hose.
240
709200520
Intermediate Hose.
245
709200497
Hose.
260
509000162
Gear Clamp.
270
509000162
Gear Clamp.
275
509000162
Gear Clamp.
280
293650099
Crimp Clamp.
290
293650098
Norma Gear Clamp.
30
293900105
Bushing.
300
293650098
Norma Gear Clamp.
310
293650098
Norma Gear Clamp.
330a
709200587
Tank Cap.
35
709000582
Grommet.
350a
415110000
Polyurethane Hose 5.2 mm.
360
414554800
Spring Clamp.
370
709200036
Hose Anchor.
375
207661644
Hex. Flanged Screw M6 X 16.
380a
515176260
Tubing 35 mm.
40
207662534
Hex. Flanged Screw M6 X 25.
430
515176260
Tubing 35 mm.
450
509000914
Fitting.
460
515176260
Tubing 35 mm.
480a
515176260
Tubing 35 mm.
50
250200082
Flat Washer.
60
233261434
Flanged Elastic Nut M6.
80
207662044
Hex. Flanged Screw M6 X 20.
90
234062410
Flat Washer 6 mm.
