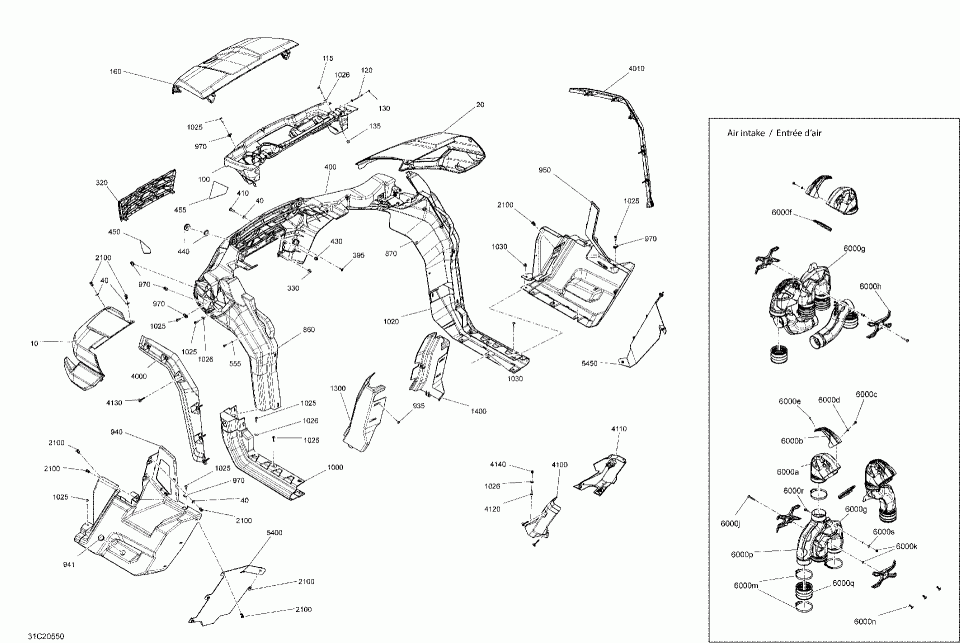

09- body - camo - xmr

Cam-am 004 - Defender HD10 - XMR - North America
Cam-am
#oem кодцена
10
705010179
Camo, LH Front Fender.
100
705013766
Multi Purpose Support.
1000
705008699
LH Central Lateral Panel.
1020
705008700
RH Central Lateral Panel.
1025
250000807
Torx Truss Screw M6 X 25.
1026
234062670
Flat Washer, Stainless.
1030
293150108
Pop Rivet 3/16”.
115
210263050
Flanged Hex. Screw M6 X 30.
120
207667554
Screw Hex Flange M6 X 75.
130
732610072
Push Nut.
1300
715003564
LH Rear Cage Cover Kit.
135
293900125
Bushing.
1400
715003565
RH Rear Cage Cover Kit.
160
705013726
Break Up Country, Front Hood.
20
705010511
Camo, RH Front Fender.
2100
293150230
Tuflok Plastic Rivet.
320
705013590
Grill.
330
517306478
Clip.
395
250000725
Screw M4 X 16.
40
503192494
Washer.
400
705013591
Deep Black, Front Fascia.
4000
705011518
LH Front Fender Flare.
4010
705011519
Front RH Fender Flare.
4020
250000840
Torx-Screw Truss Head PT.K50 X 40.
410
250000886
Torx Screw M8 X 30.
4100
705011522
LH Central Fender Flare.
4110
705011523
RH Center Fender Flare.
4120
250000758
Torx Screw M6 X 25.
4125
234062670
Flat Washer, Stainless.
4130
250000840
Torx-Screw Truss Head PT.K50 X 40.
4140
233261494
Hex. Elastic Flanged Nut M6.
430
233281414
Hex. Flanged Elastic Nut M8.
440
705010718
Grommet.
450
704905072
LH Front Reflector.
455
704905073
RH Front Reflector.
5400
705013057
LH Rear Deflector.
5450
705013058
RH Rear Deflector.
555
234051670
Flat Washer M5.
6000a
706600236
Air Inlet.
6000b
707001523
Black Cap.
6000c
250000792
Torx Screw M5 X 20.
6000d
233251494
Elastic Flanged Nut M5.
6000e
250000577
Torx Truss Screw K40 X 12.
6000f
706600221
Grate.
6000g
706600205
CVT Outlet.
6000h
705012555
Trim.
6000j
250000647
Torx Screw M6 X 45.
6000k
232561494
Elastic Stop Nut M6.
6000m
293650272
Clamp.
6000n
293150101
Pop Rivet 3/16”.
6000p
706600277
Intake Tube.
6000q
706600278
Flexible Joint.
6000r
250000712
Torx Screw M6 X 20.
6000s
250200164
Flat washer M6.
860
705008152
LH Front Lateral Panel.
870
705008153
RH Front Lateral Panel.
935
250000720
Torx Screw K50 X 16.
940
705013658
Deep Black, LH Rear Body Panel.
941
414916600
Black Nylon Cap.
950
705013659
Deep Black, RH Rear Body Panel.
970
250000957
Extruded Panel Nut M6.
